CR-V EX, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock
>>
Pin Voltage Tests
Pin Voltage Tests
See
Fig 1
and
Fig 2
.

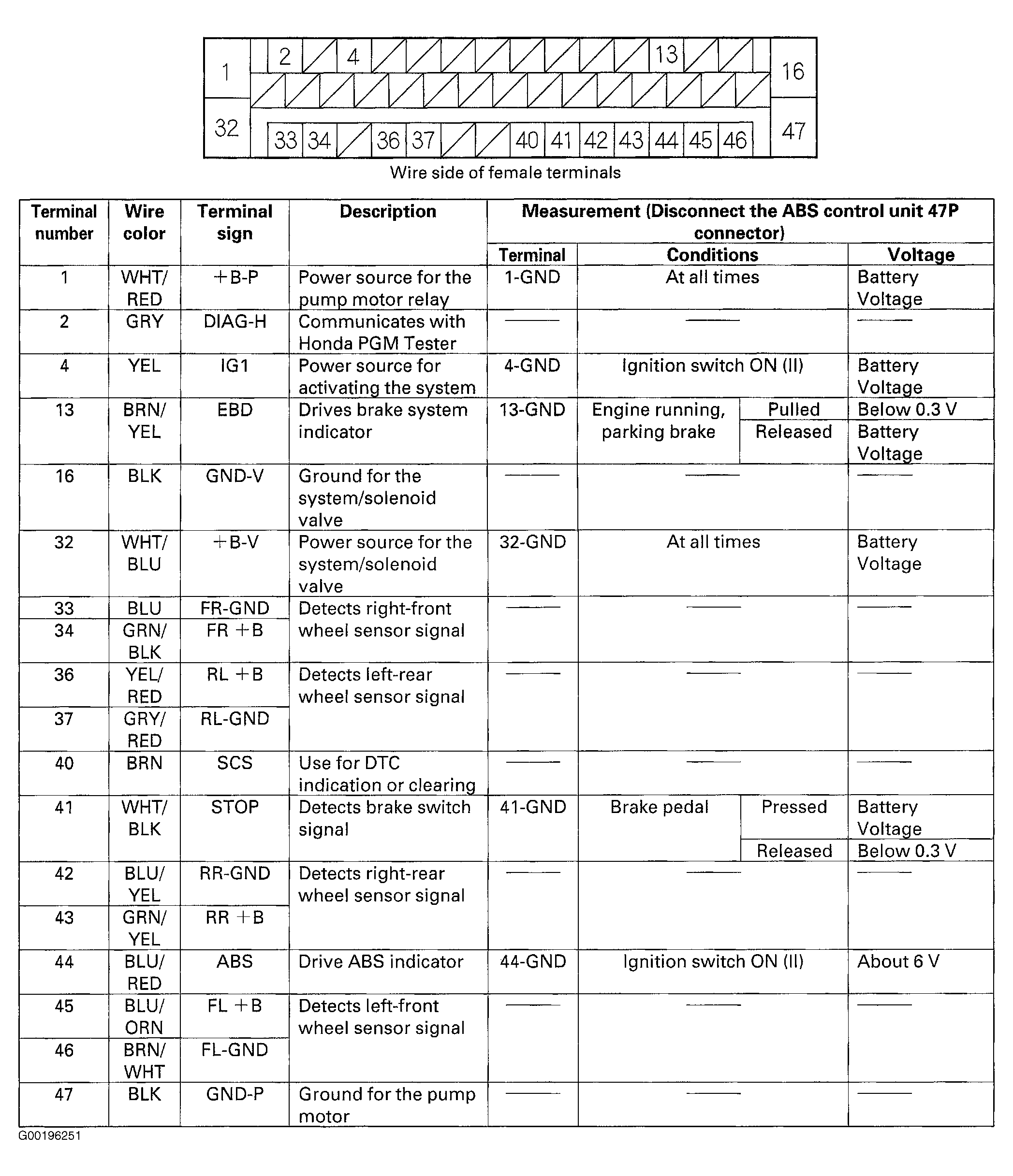

Fig 1: ABS Control Unit 47P Connector Pin Voltage Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

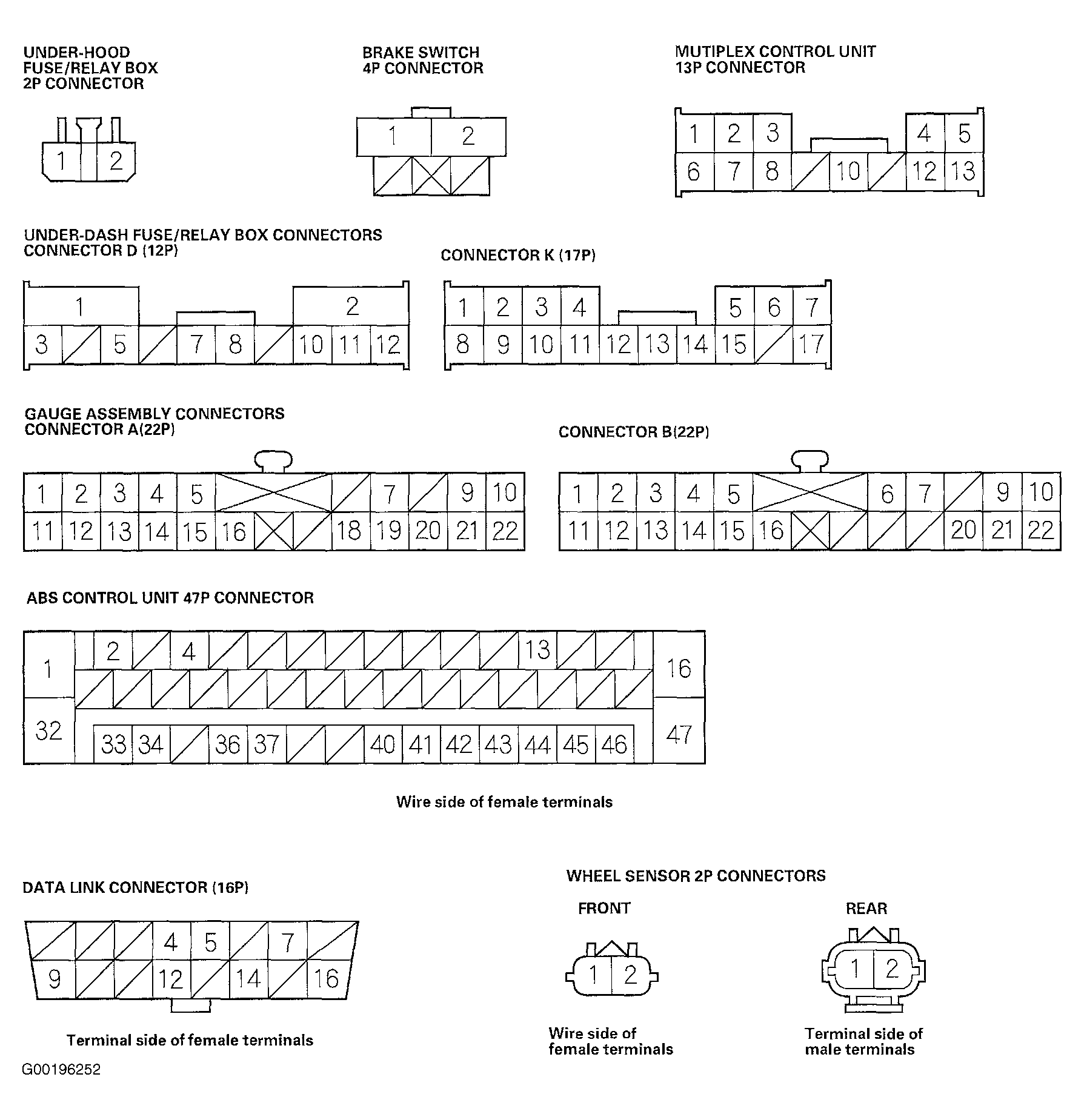

Fig 2: Identifying Pin Voltage Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
