Dashboard Lower Cover

NOTE: Take care not to scratch the dashboard and related parts.
NOTE: Letter references in parenthesis are identified in following illustrations.
  1. Remove the screws (A) from the driver's dashboard lower cover (B). See Fig 1.
    • Pullout the bottom of the fuse lid (C) to release the clips (D), and pull it down to release the hooks (E).
    • Remove the screw from the fuse lid opening.
    • Open the pocket, then remove the screw.
  2. Pull out the bottom of the driver's dashboard lower cover (A) to release the clips. See Fig 2.
  3. Remove the driver's dashboard lower cover (A).
    • Pull out the upper portions of the cover to release the clips.
    • If equipped, disconnect the cruise control main switch connector (B), moonroof switch connector (C), in-car temperature sensor connector (D), air hose (E), and seat heater switch connector (F). See Fig 3.
  4. Install the cover in the reverse order of removal, and make sure that each connector is plugged in properly, and the air hose is connected properly.

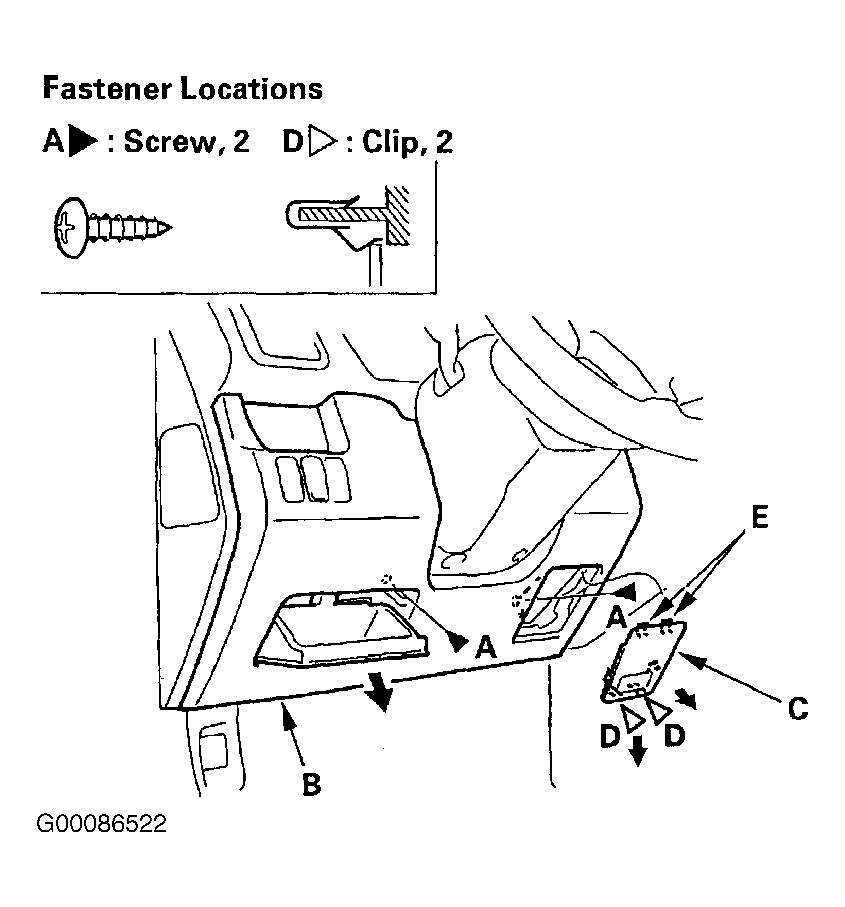

Fig 1: Removing/Installing Lower Cover Screws
G00086522Courtesy of AMERICAN HONDA MOTOR CO., INC.

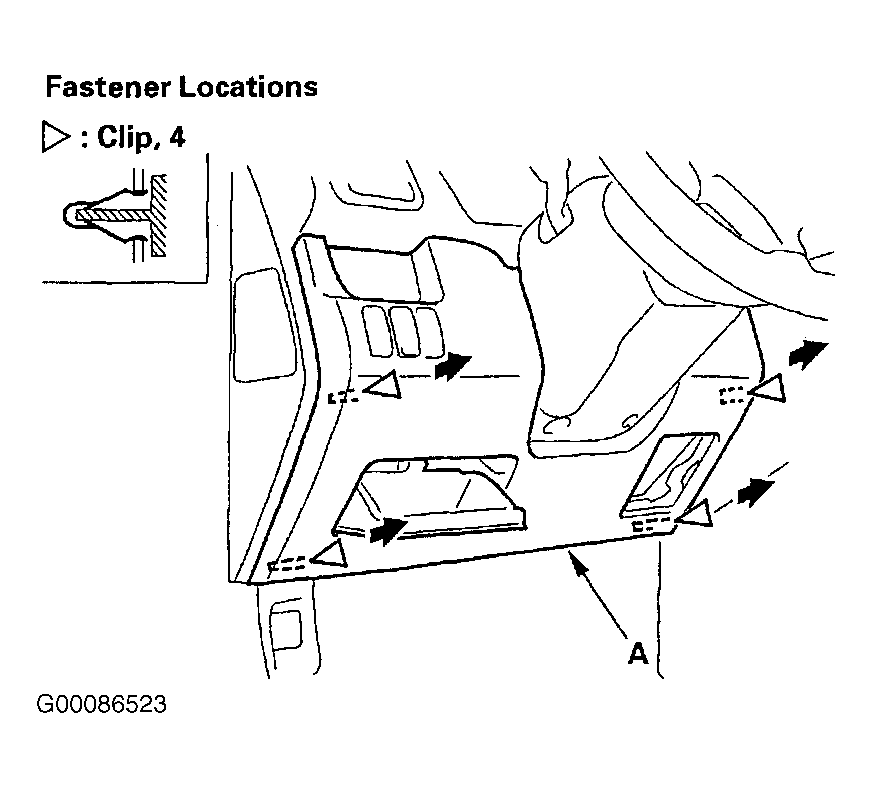

Fig 2: Identifying Lower Cover Fastener Clips
G00086523Courtesy of AMERICAN HONDA MOTOR CO., INC.

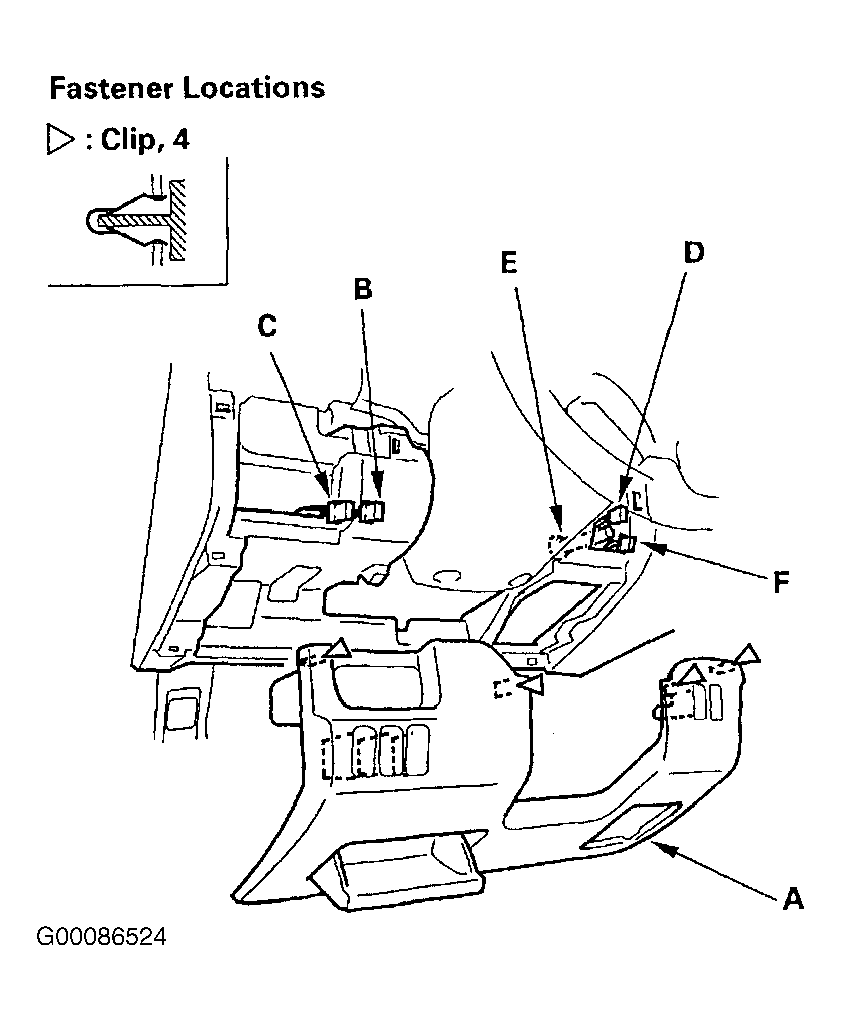

Fig 3: Locating Lower Cover Electrical Harness Connectors
G00086524Courtesy of AMERICAN HONDA MOTOR CO., INC.
