Throttle Body Disassembly/Reassembly

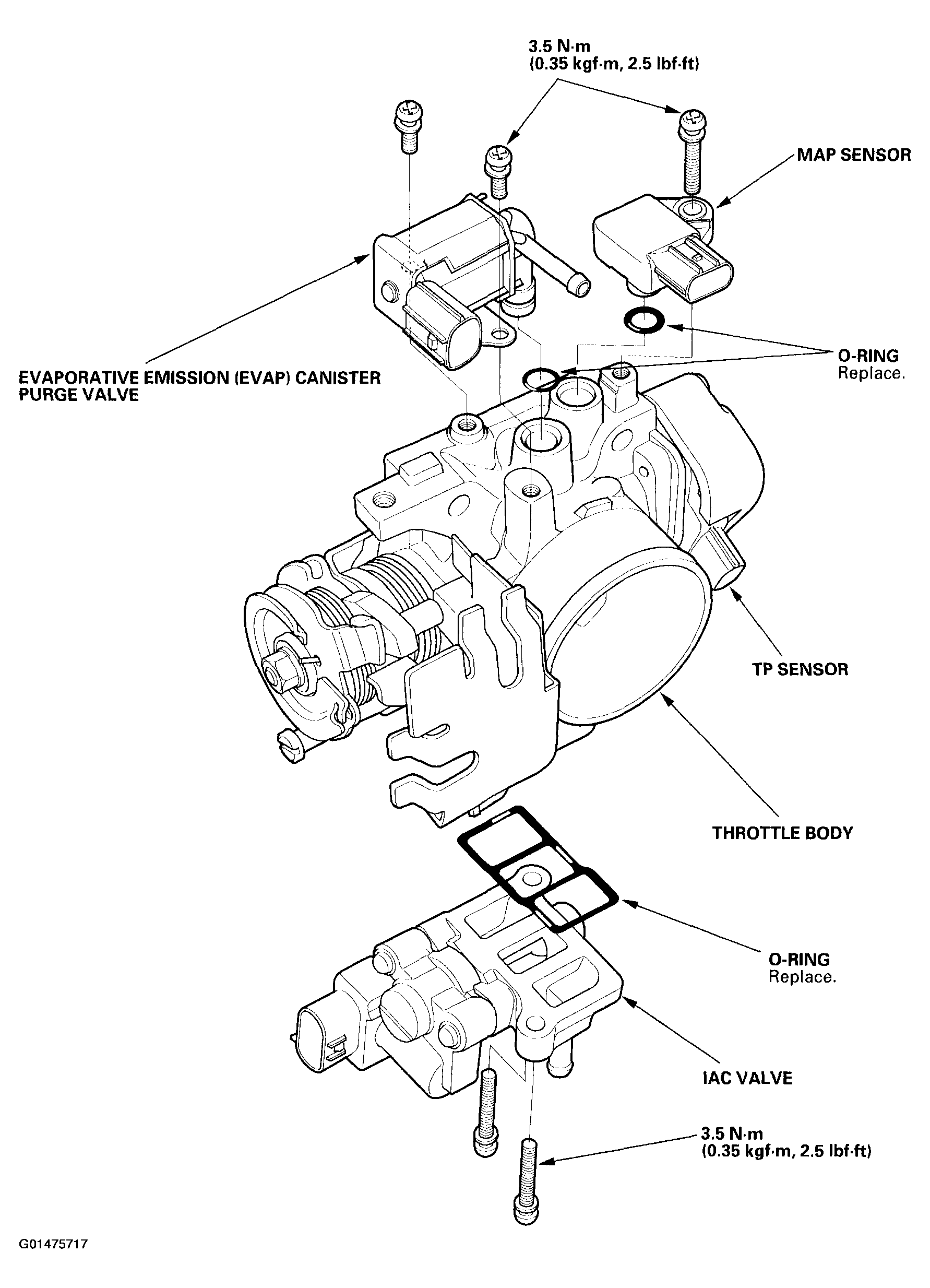

Fig 1: Identifying Throttle Body Disassembly/Reassembly

G01475717

Courtesy of AMERICAN HONDA MOTOR CO., INC.
