Closer Motor Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the rear latch assembly (B).

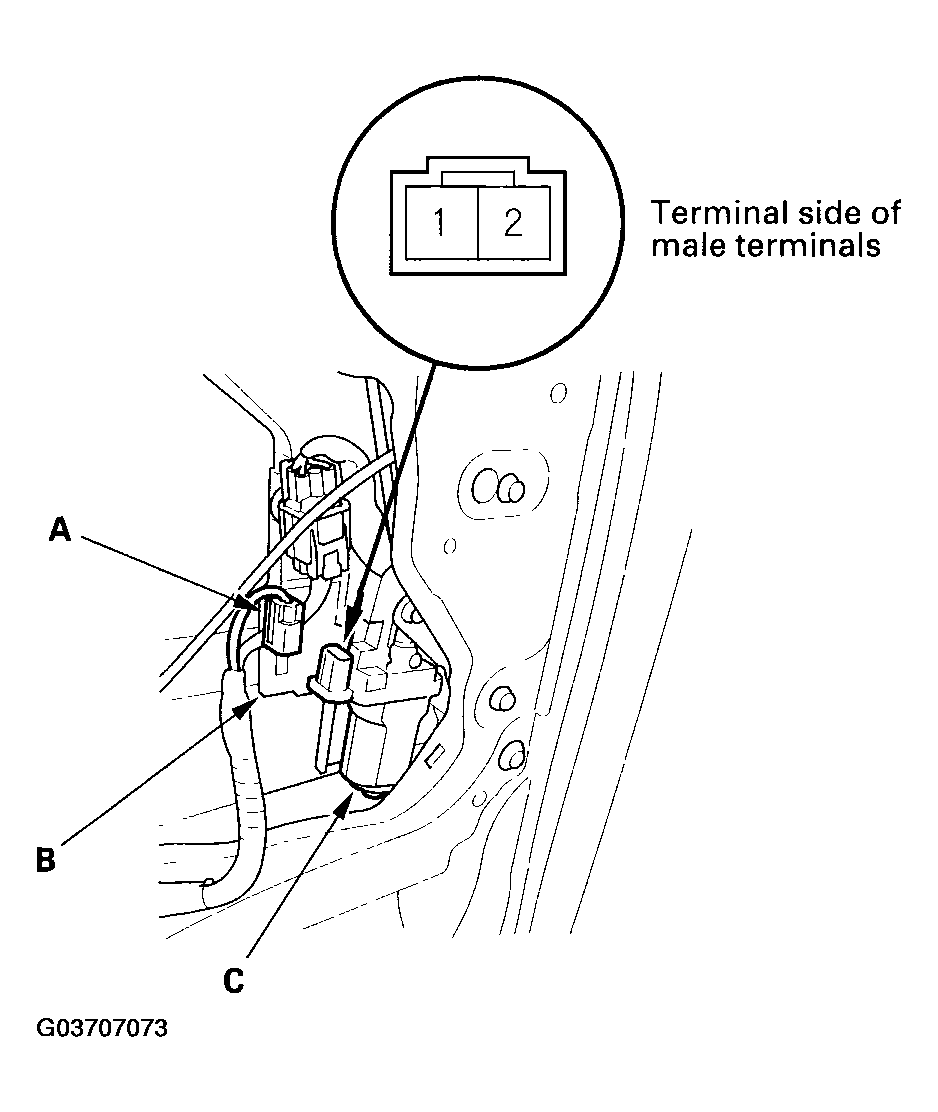

Fig 1: Disconnecting 2P Connector From Rear Latch Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the closer motor (C) by connecting power and ground according to the table shown in Fig 2.

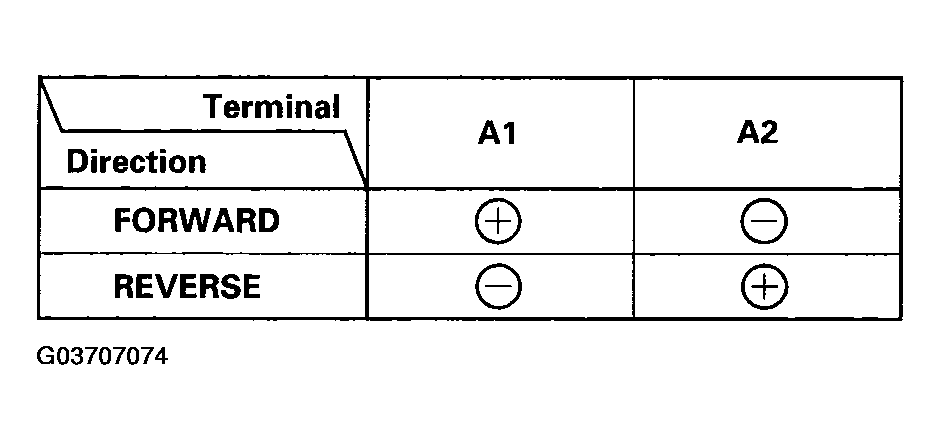

Fig 2: Testing Closer Motor By Connecting Power And Ground Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not operate, replace the latch assembly.
