PCV Valve Inspection & Test

  1. Check the PCV valve (A), hoses (B), and connections for leaks or restrictions.

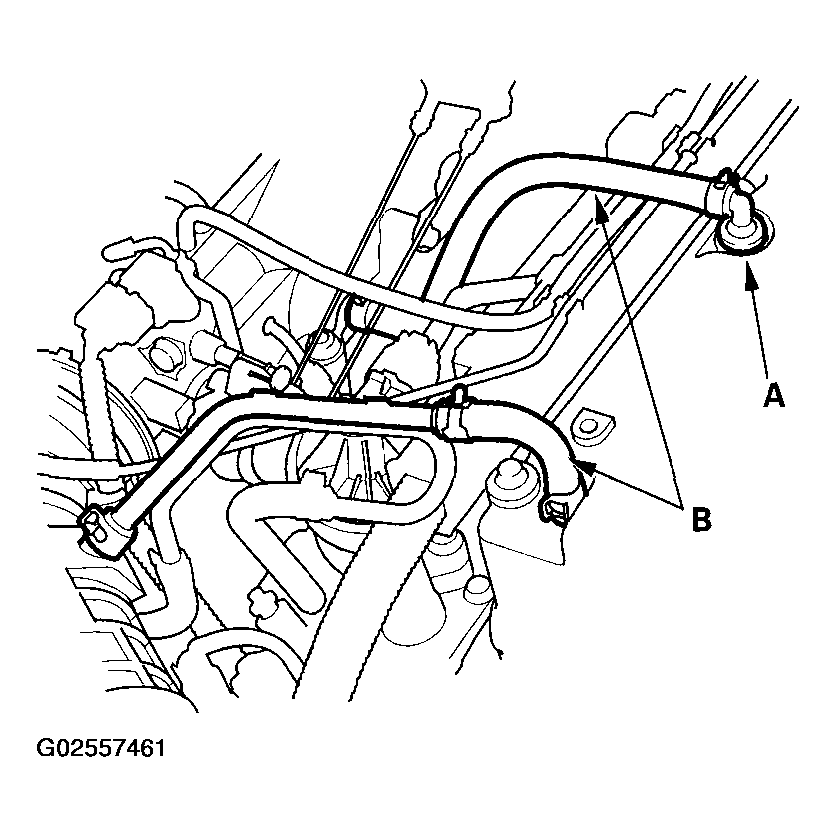

    Fig 1: Checking The PCV Valve, Hoses, & Connections For Leaks Or Restrictions
    G02557461Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. At idle, make sure there is a clicking sound from the PCV valve when the hose between the PCV valve and intake manifold is lightly pinched (A) with your fingers or pliers.

    If there is no clicking sound, check the PCV valve grommet for cracks or damage. If the grommet is OK, replace the PCV valve and recheck.

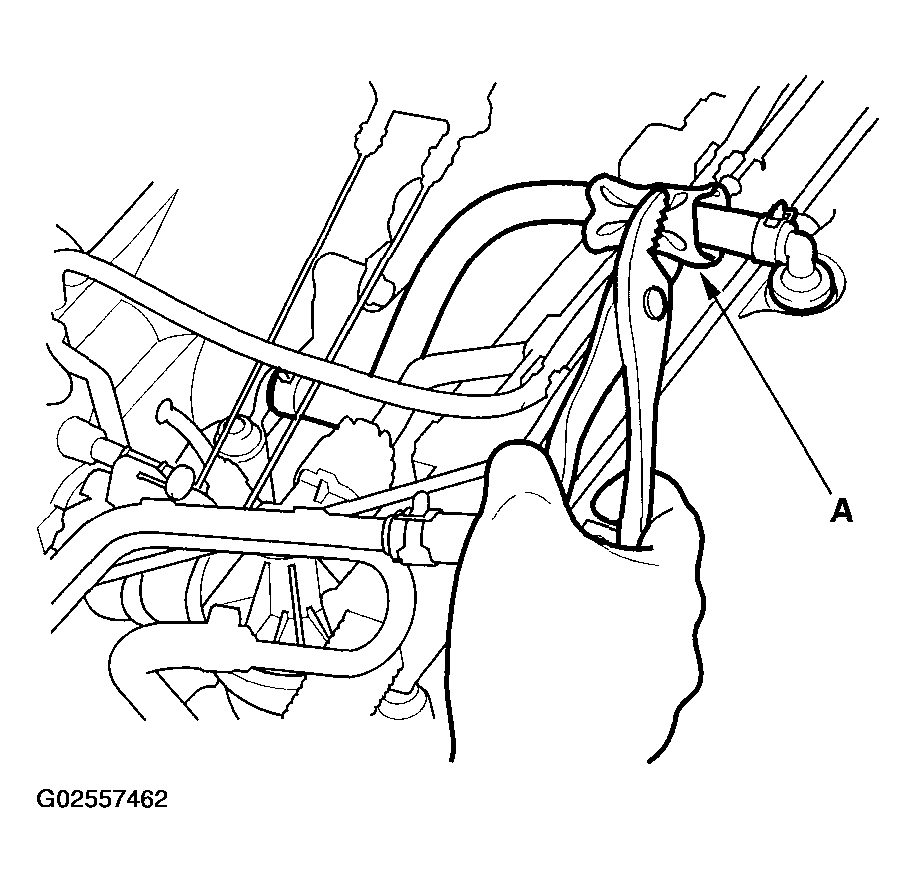

    Fig 2: Pinching The Hose Between The PCV Valve & The Intake Manifold
    G02557462Courtesy of AMERICAN HONDA MOTOR CO., INC.
