Throttle Body Removal/Installation

NOTE:
  • Do not adjust the throttle stop screw.
  • After reassembly, adjust the cruise control cable (see ACTUATOR CABLE ADJUSTMENT ) and the throttle cable (see Throttle Cable Adjustment  ).
  • The TP sensor is not removable.

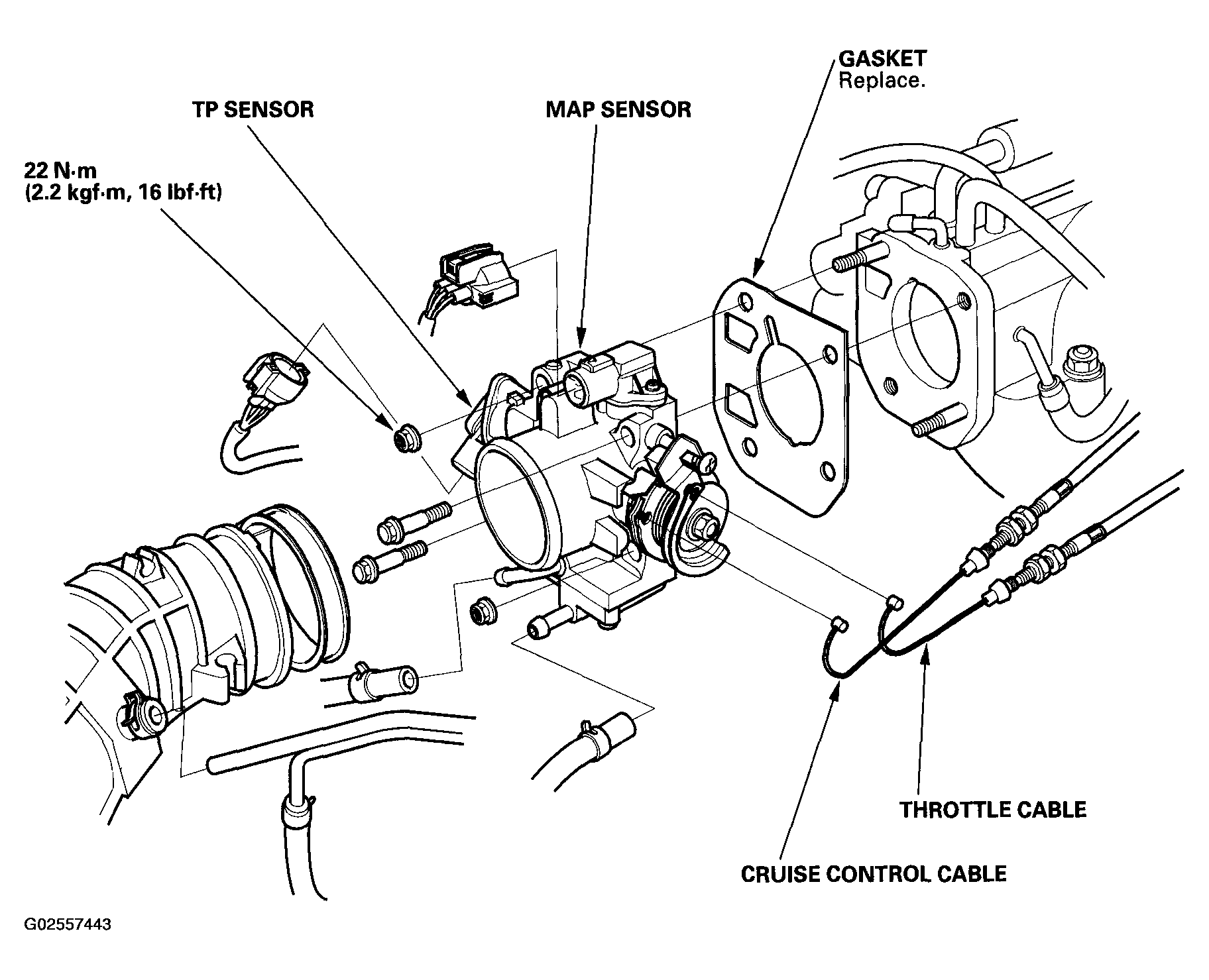

    Fig 1: Removing/Installing Throttle Body
    G02557443Courtesy of AMERICAN HONDA MOTOR CO., INC.
