Home >> Honda >> 2002 >> Accord Value Package >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication System (4-CYL) >> Component Location Index

Component Location Index

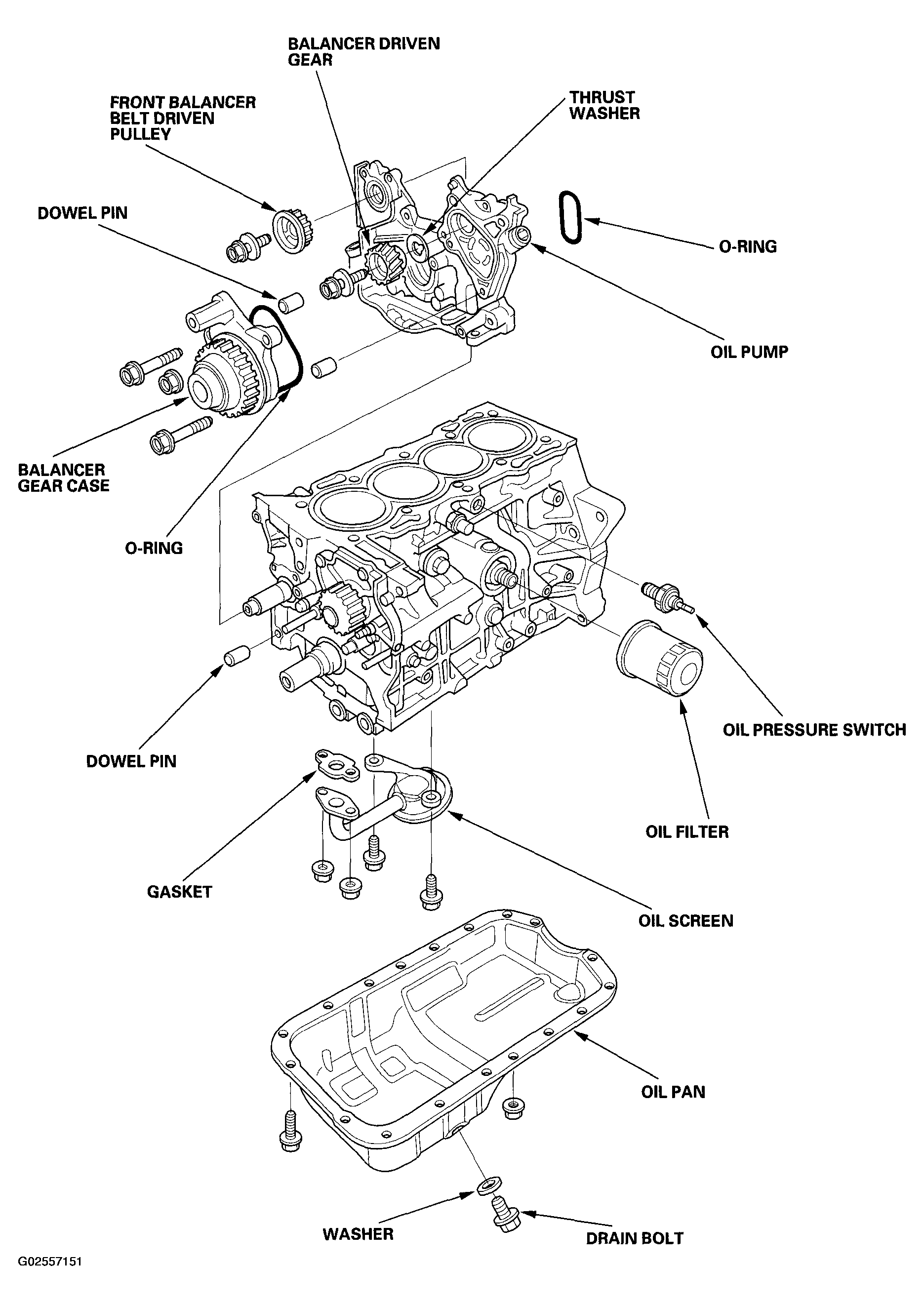

Fig 1: Locating Lubrication System Components

G02557151

Courtesy of AMERICAN HONDA MOTOR CO., INC.
