Water Pump Replacement

  1. Remove the timing belt (see TIMING BELT & BALANCER BELT REMOVAL ).
  2. Remove the camshaft pulley and the back cover (see step 22 on CYLINDER HEAD REMOVAL ).
  3. Remove the water pump (A) by removing five bolts.

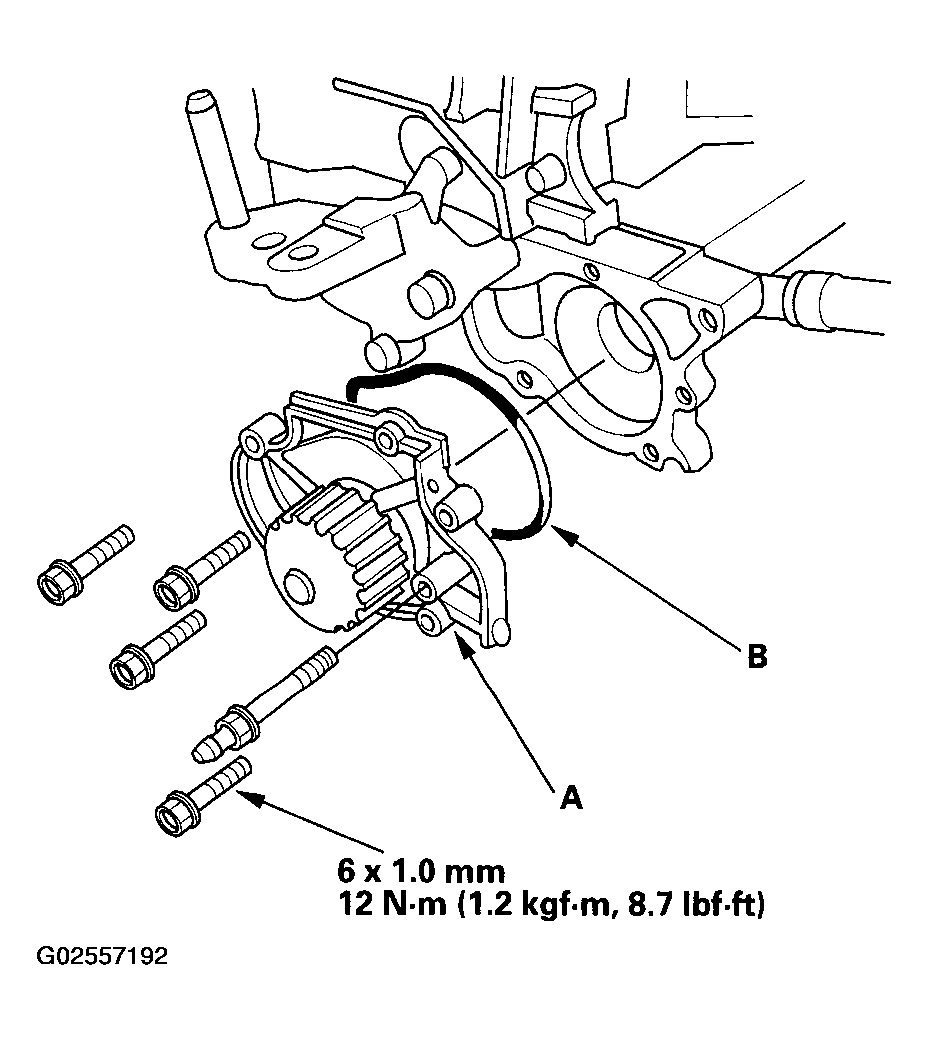

    Fig 1: Removing Water Pump
    G02557192Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect, repair and clean the O-ring groove and the mating surface on the cylinder block.
  5. Install the water pump, with a new O-ring (B), in the reverse order of removal.
  6. Clean the spilled engine coolant.
