Radiator And Fans Replacement

  1. Drain the engine coolant.
  2. Remove the upper and lower radiator hoses, and ATF cooler hoses.

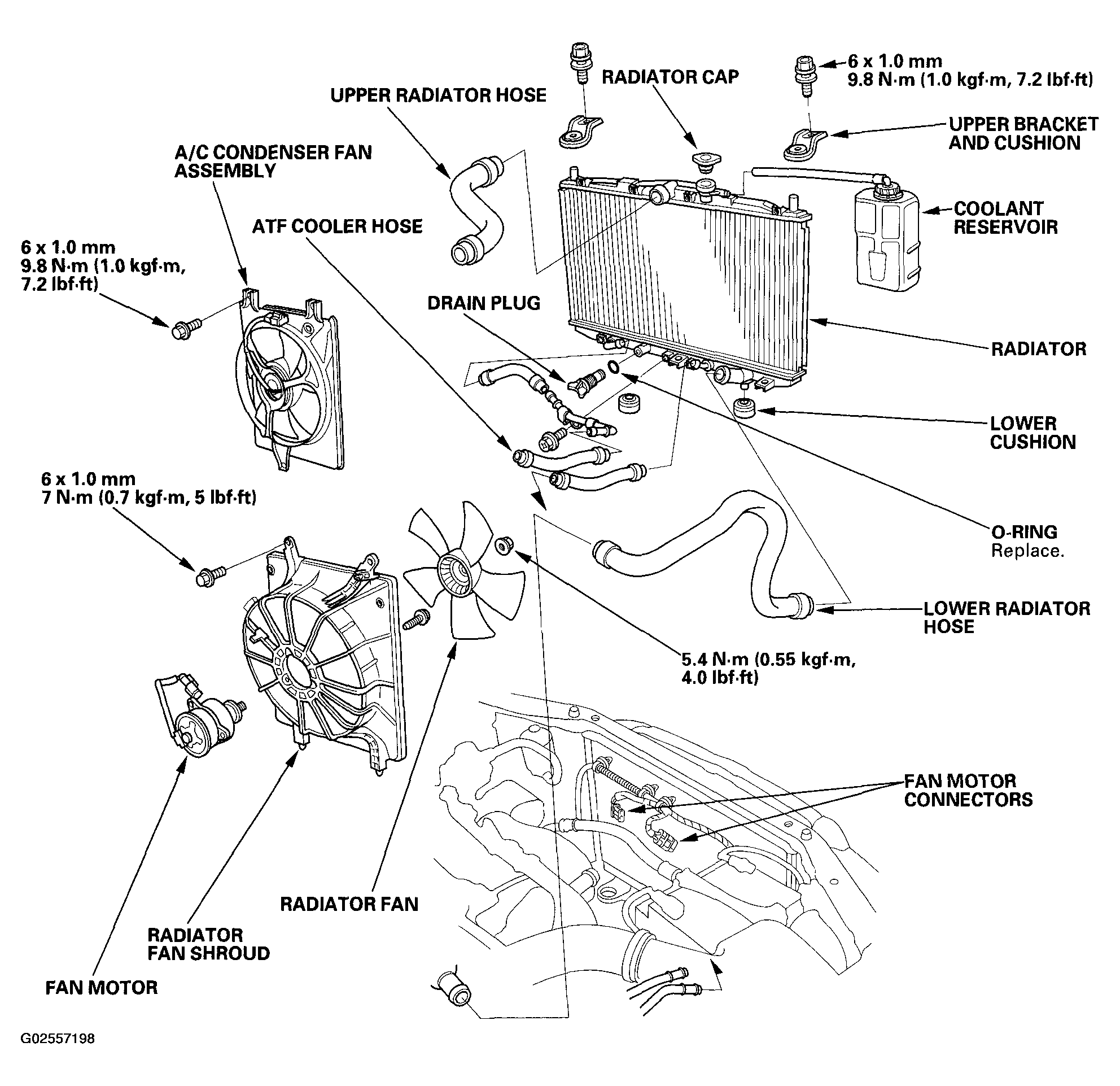

    Fig 1: Exploded View Of Cooling System
    G02557198Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the fan motor connectors.
  4. Remove the radiator upper brackets, then pull up the radiator.
  5. Remove the fan shroud assemblies and other parts from the radiator.
  6. Install the radiator in the reverse order of removal. Make sure the upper and lower cushions are set securely.
  7. Fill the radiator with engine coolant and bleed the air.
