Fan Motor Test

  1. Disconnect the 2P connectors from the radiator fan motor (A) and condenser fan motor (B).

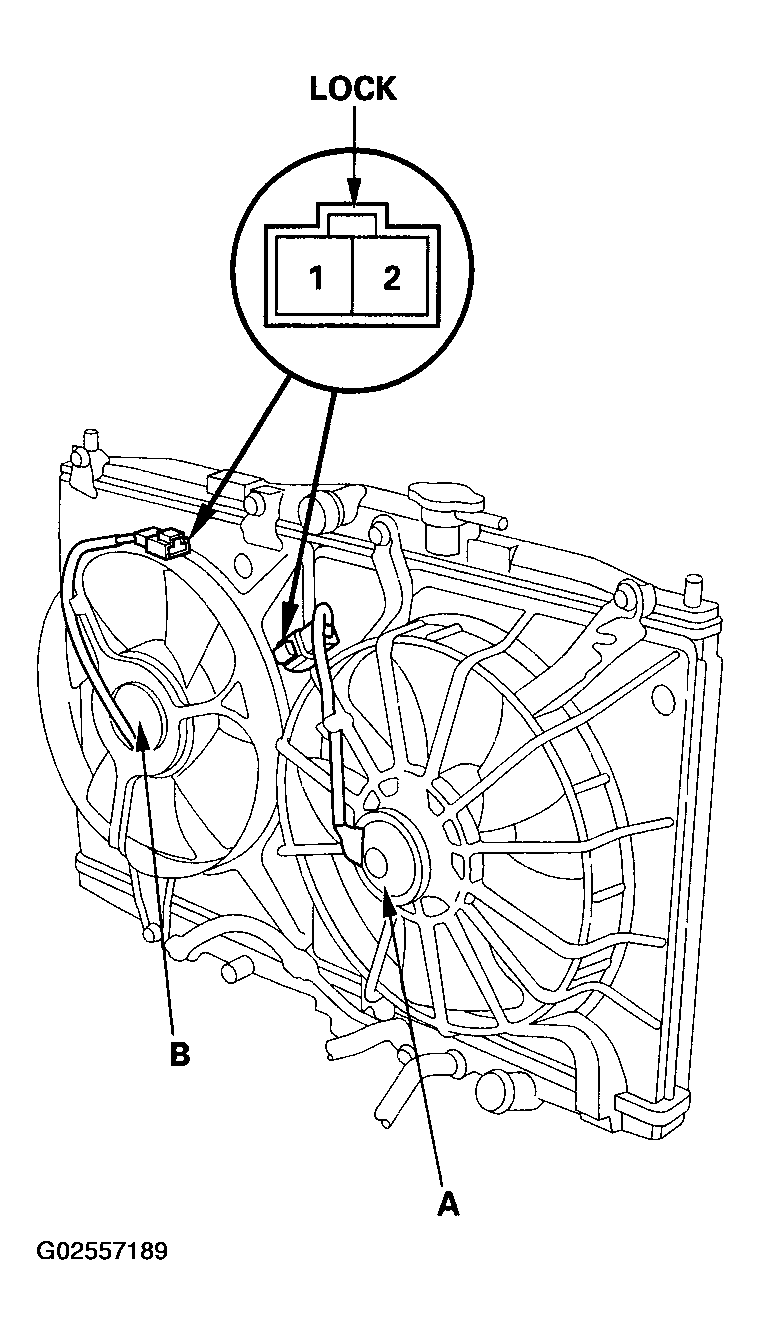

    Fig 1: Identifying Radiator Fan Motor & Condenser Fan Motor 2P Connectors Terminals
    G02557189Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Test the motor by connecting battery power to the No. 1 terminal, and ground to the No. 2 terminal.
  3. If the motor fails to run or does not run smoothly, replace it.
