Starter Solenoid Test

  1. Check the hold-in coil for continuity between the "S" terminal and the armature housing (ground). See Fig 1 (2.3L) or Fig 2 (3.0L). There should be continuity. If there is continuity, go to next step. If there is no continuity, replace the solenoid.
  2. Check the pull-in coil for continuity between the "S" terminal and "M" terminal. There should be continuity. If there is continuity, the solenoid is OK. If there is no continuity, replace the solenoid.

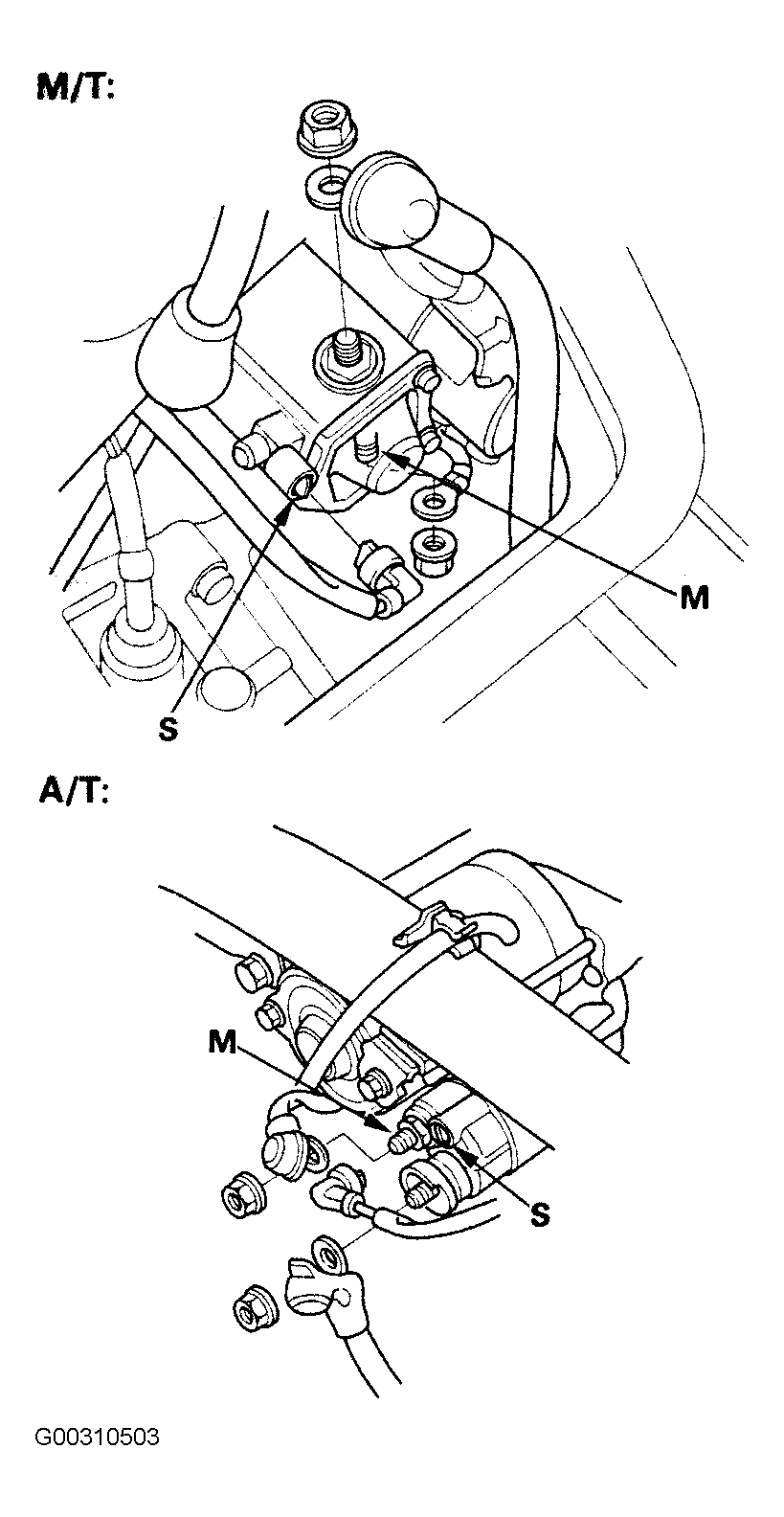

Fig 1: Identifying Starter Solenoid Terminals (2.3L)
G00310503Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Starter Solenoid Terminals (3.0L)
G99E05306Courtesy of AMERICAN HONDA MOTOR CO., INC.
