Component Locations & Drive Belt Routing
Component Locations & Drive Belt Routing
For component location, see
Fig 1
for 2.3L or
Fig 2
&
Figure
for 3.0L.

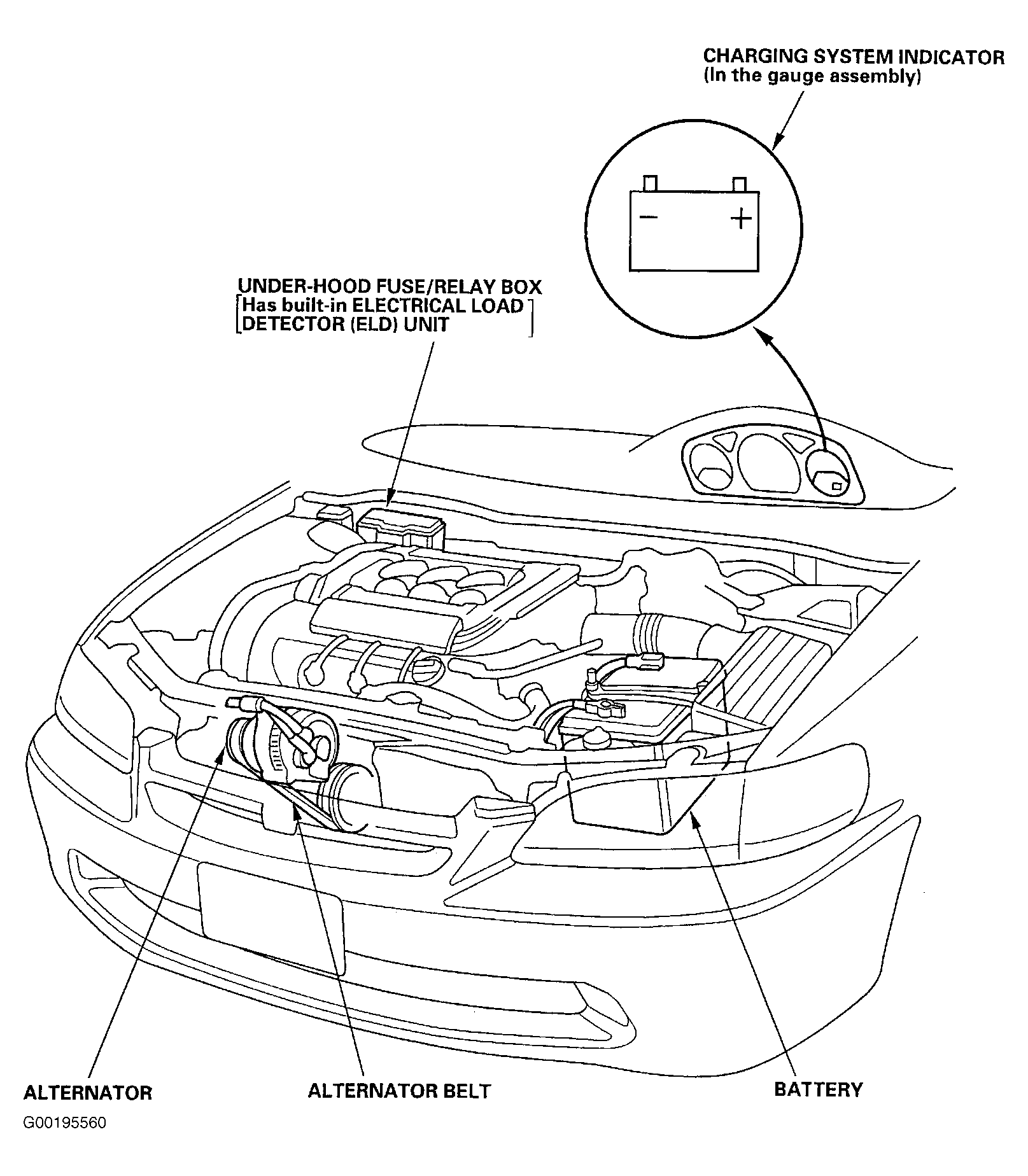

Fig 1: Identifying Component Locations & Drive Belt Routing (2.3L)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

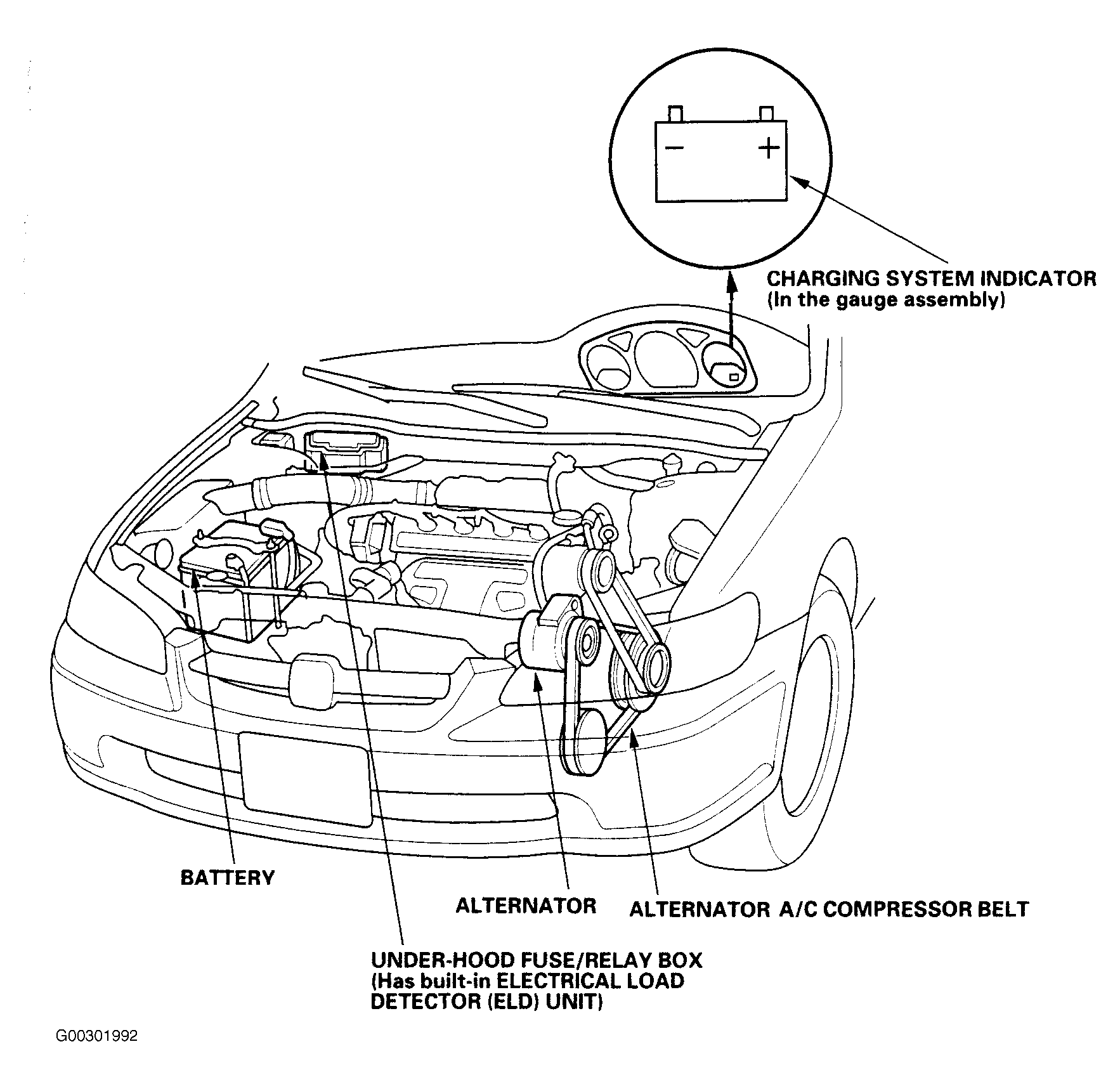

Fig 2: Identifying Component Locations & Drive Belt Routing (3.0L)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
