Power Mirror Replacement

Lower the door glass fully.
Carefully pry out the mirror mount cover (A) by hand in the sequence shown.

Fig 1: Prying Out Mirror Mount Cover In Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION -- SEDAN ).

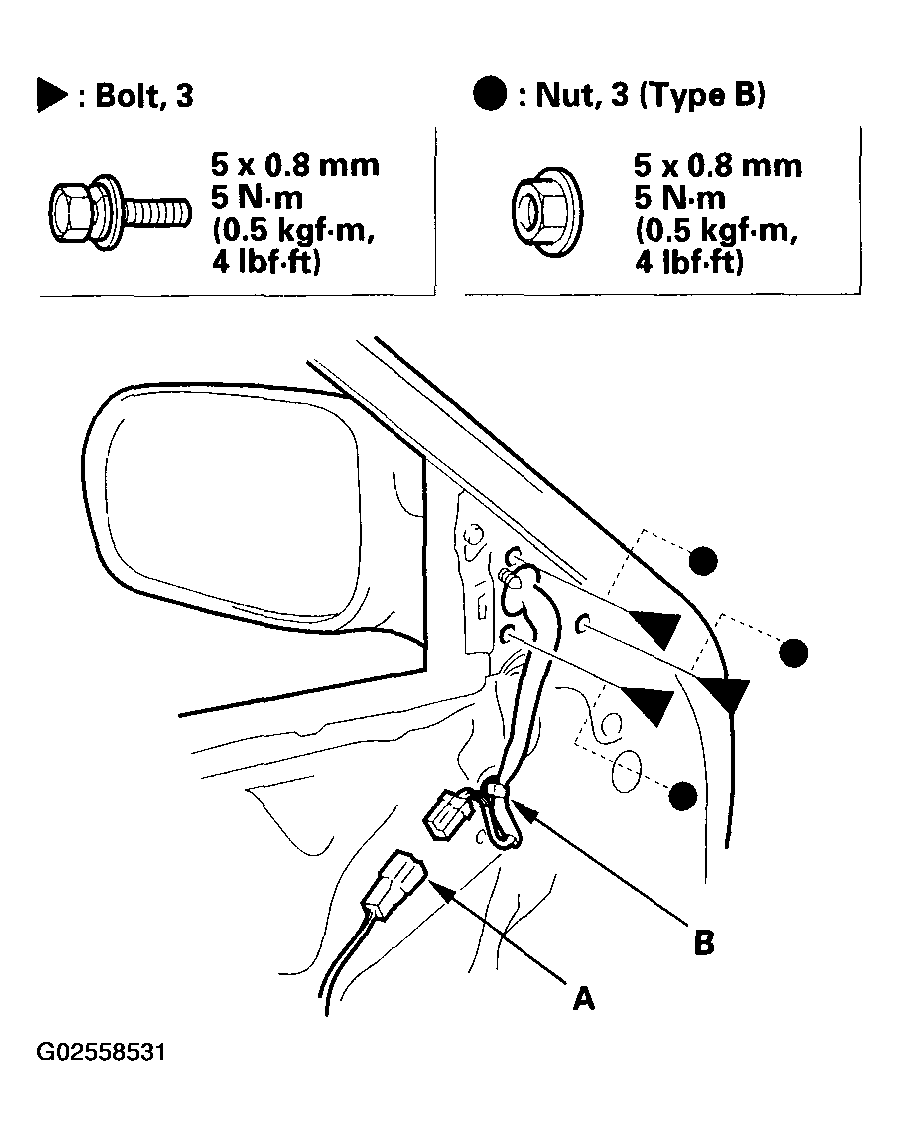

Disconnect the connector (A), and detach the harness clip (B), then remove the nuts or bolts securing the mirror.

Fig 2: Removing Nuts/Bolts Securing Mirror
Courtesy of AMERICAN HONDA MOTOR CO., INC.
While holding the mirror, push out the clip (A), and remove the mirror (B). Take care not to scratch the door.

Fig 3: Pushing Out Clip & Removing Mirror
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the mirror in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Attach the harness clip.
