Park Pin Switch

  1. Remove the center console panel. See CENTER CONSOLE PANEL  under REMOVAL & INSTALLATION.
  2. Disconnect the park pin switch assembly connector.
  3. Shift the gearshift lever into the "P" position, then check for continuity between the A/T shift switch assembly component connector No. 3 and 4 terminals. See Fig 1 . There should be no continuity.
  4. Shift the gearshift lever out of the "P" position, and check for continuity between the A/T shift switch assembly component connector No. 3 and 4 terminals. There should be continuity.
  5. If the park pin switch is faulty, remove the gearshift lever assembly. See GEARSHIFT LEVER ASSEMBLY  under REMOVAL & INSTALLATION. Replace the shift lever bracket base (park pin switch is not available separately).

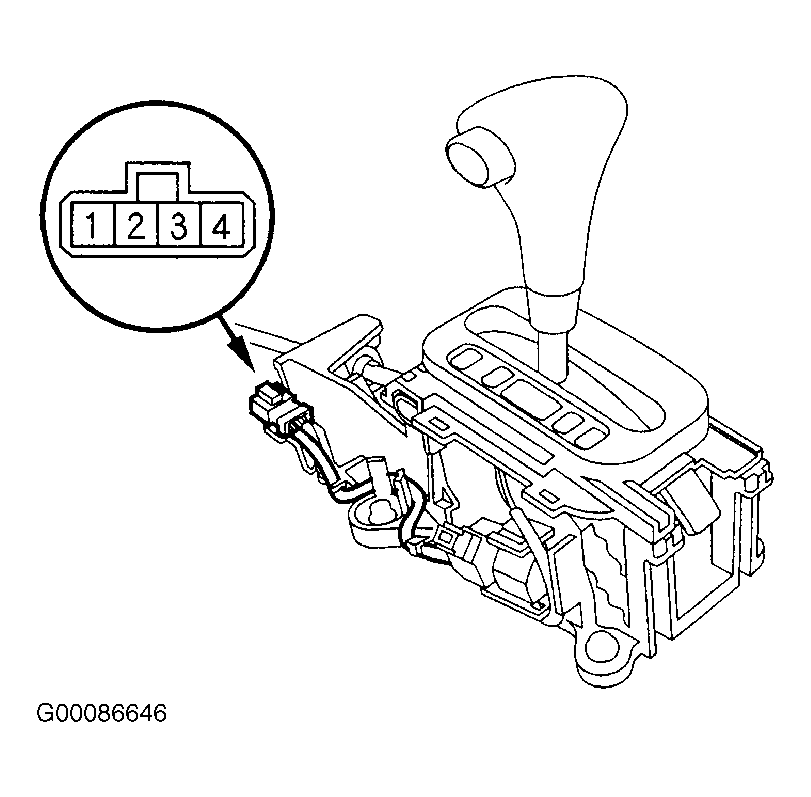

Fig 1: Identifying Park Pin Switch Connector Terminals
G00086646Courtesy of AMERICAN HONDA MOTOR CO., INC.
