Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

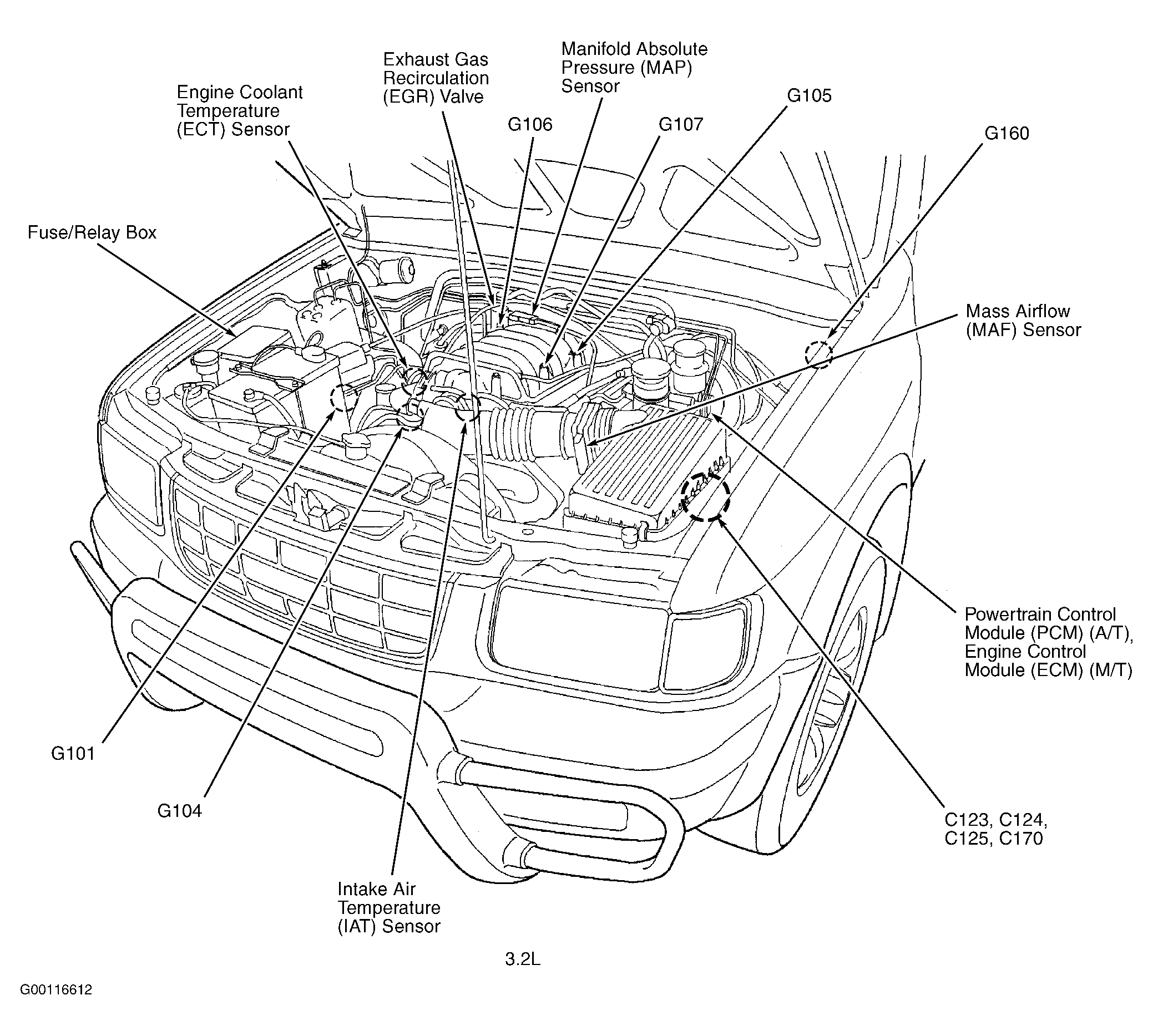

Fig 1: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

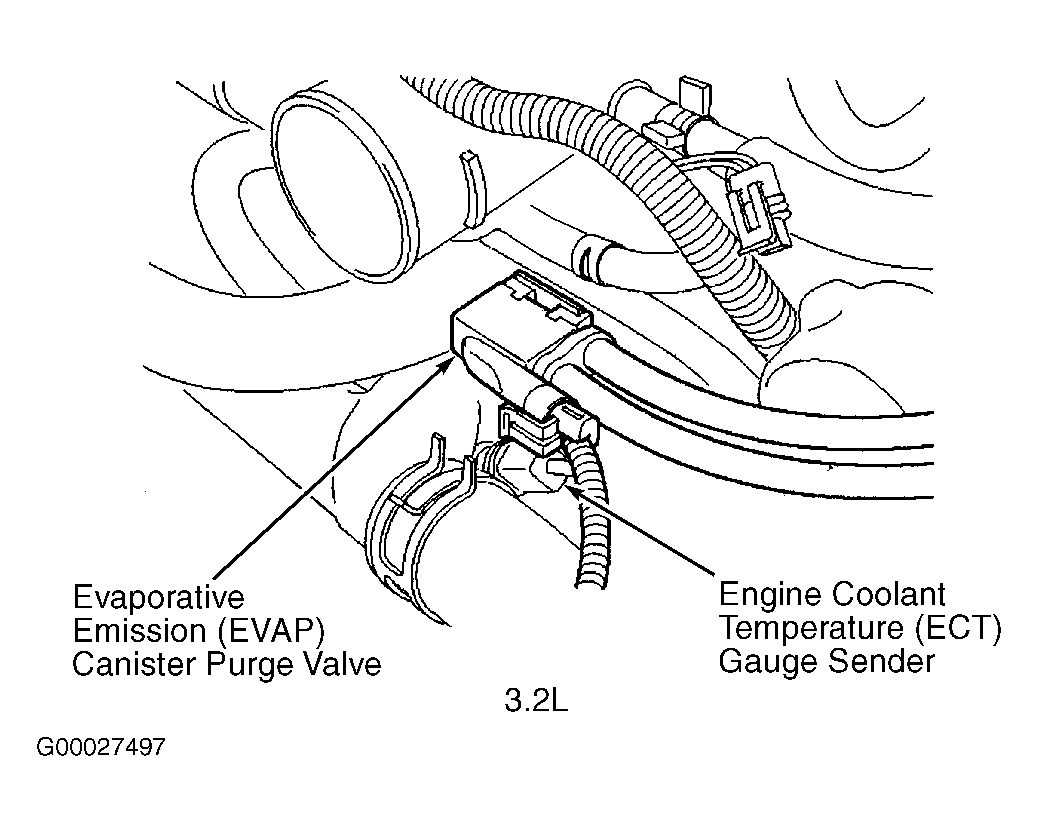

Fig 2: Top Of Engine

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Front Of Engine

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Side Of Engine

Courtesy of AMERICAN HONDA MOTOR CO., INC.
