Pressure retaining mode

TCS NO valve open, TCS NC valve closed, inlet valve closed, outlet valve closed.

Caliper fluid is retained by the inlet valve and outlet valve.

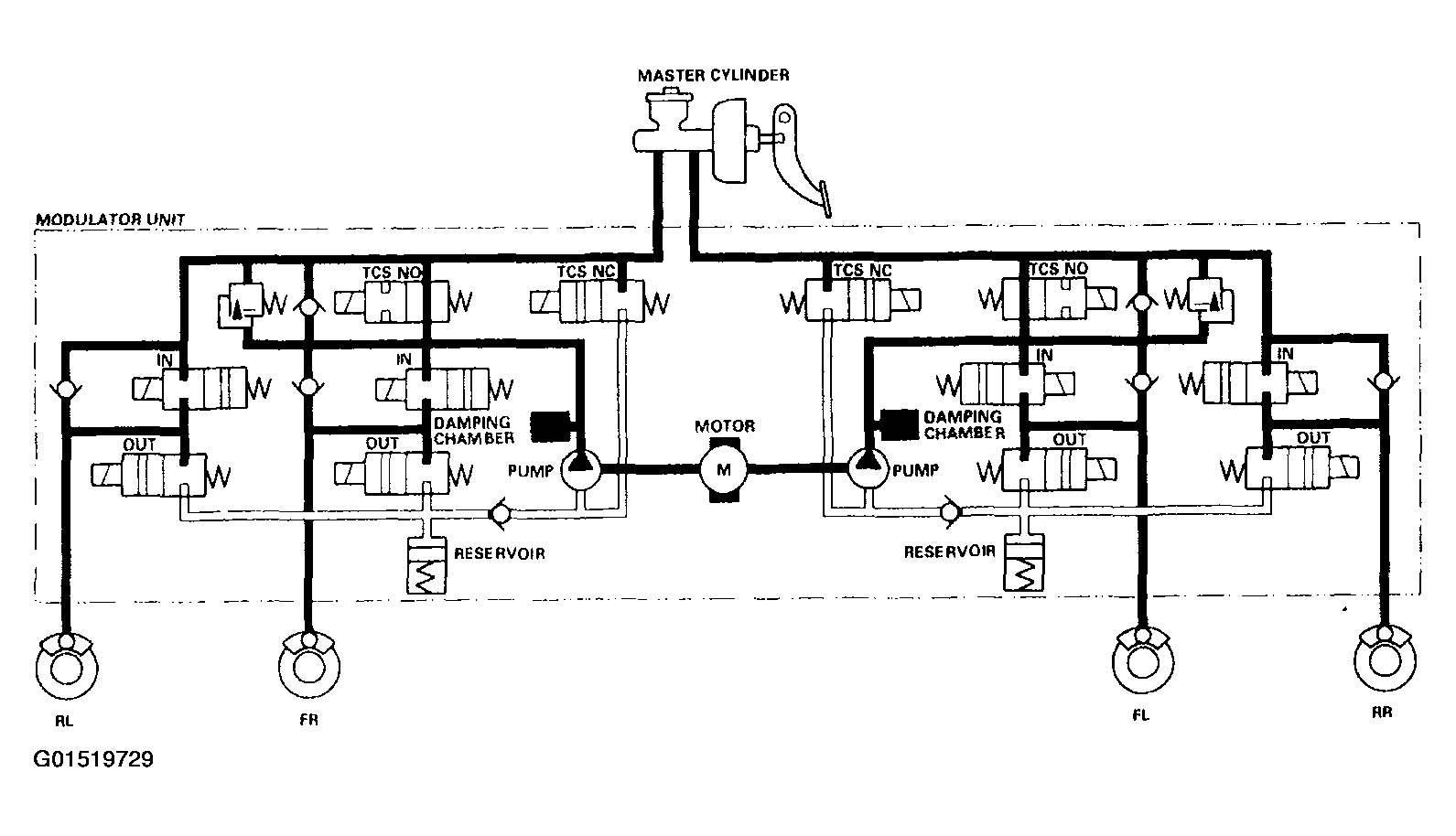

Fig 1: Pressure Retaining Mode Fluid Schematic

Courtesy of AMERICAN HONDA MOTOR CO., INC.
