Steering linkage and Gearbox Inspection

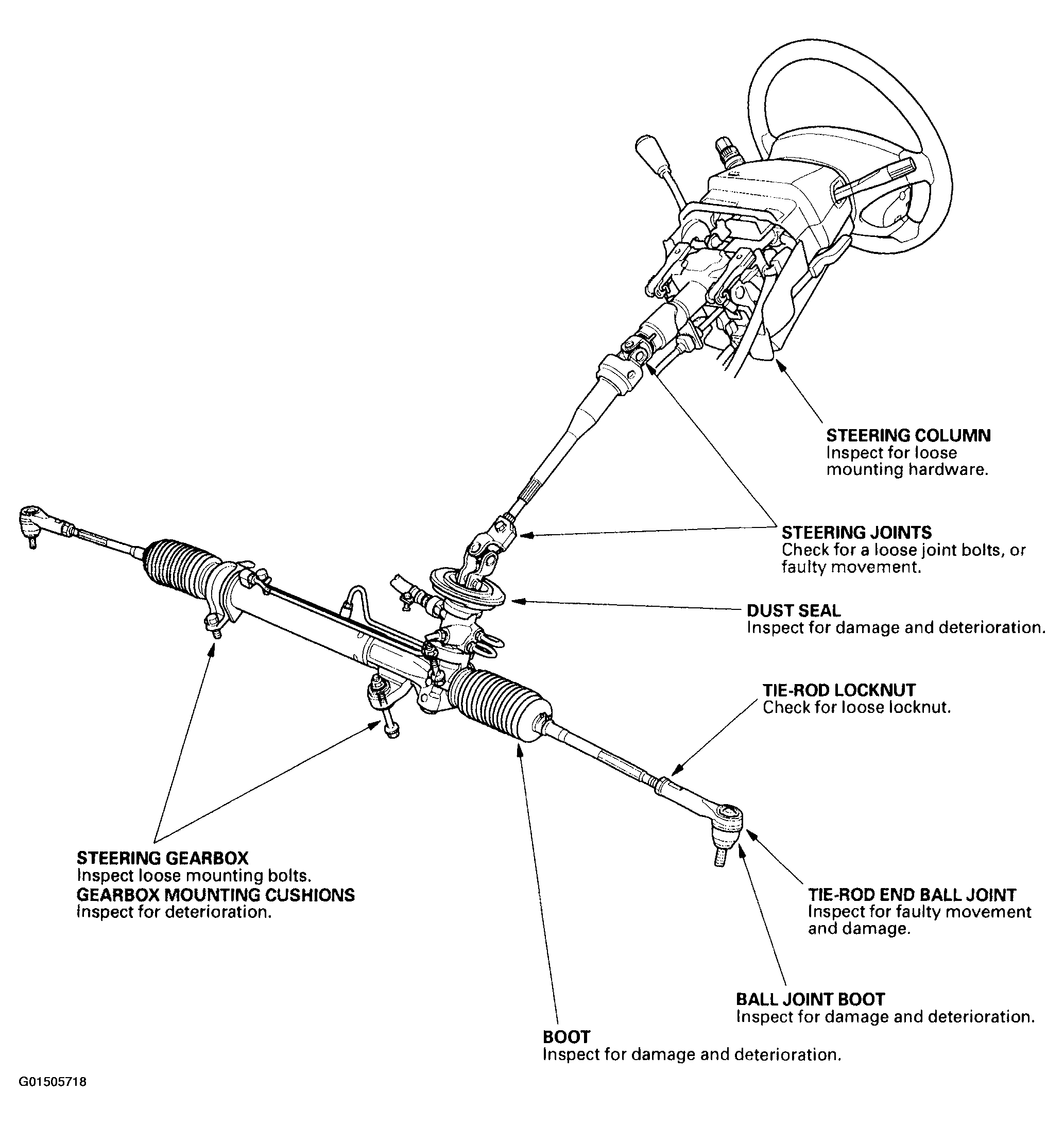

Fig 1: Identifying Linkage & Gearbox Components

G01505718

Courtesy of AMERICAN HONDA MOTOR CO., INC.
