Rear Window Wiper Motor Replacement

  1. Remove the nut (A), the wiper arm (B) and the special nut (C).

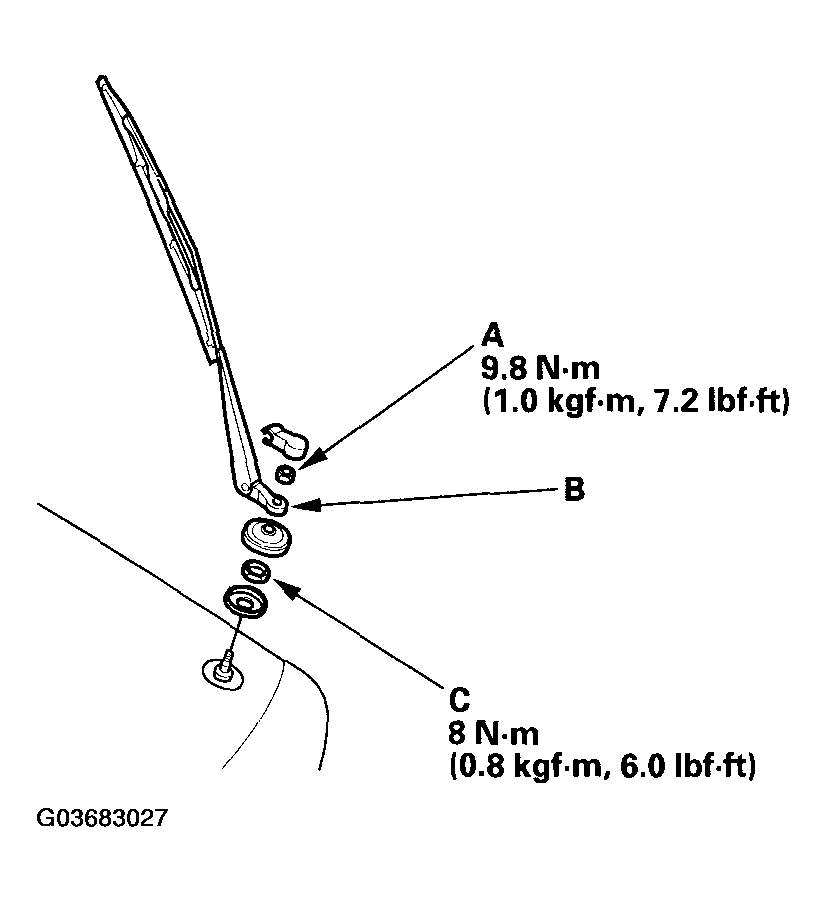

    Fig 1: Removing Nut, Wiper Arm And Special Nut
    G03683027Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Open the hatch and remove the hatch trim panel (see TRIM REMOVAL/INSTALLATION - HATCH AREA ).
  3. Disconnect the 4P connector (A) from the motor (B).

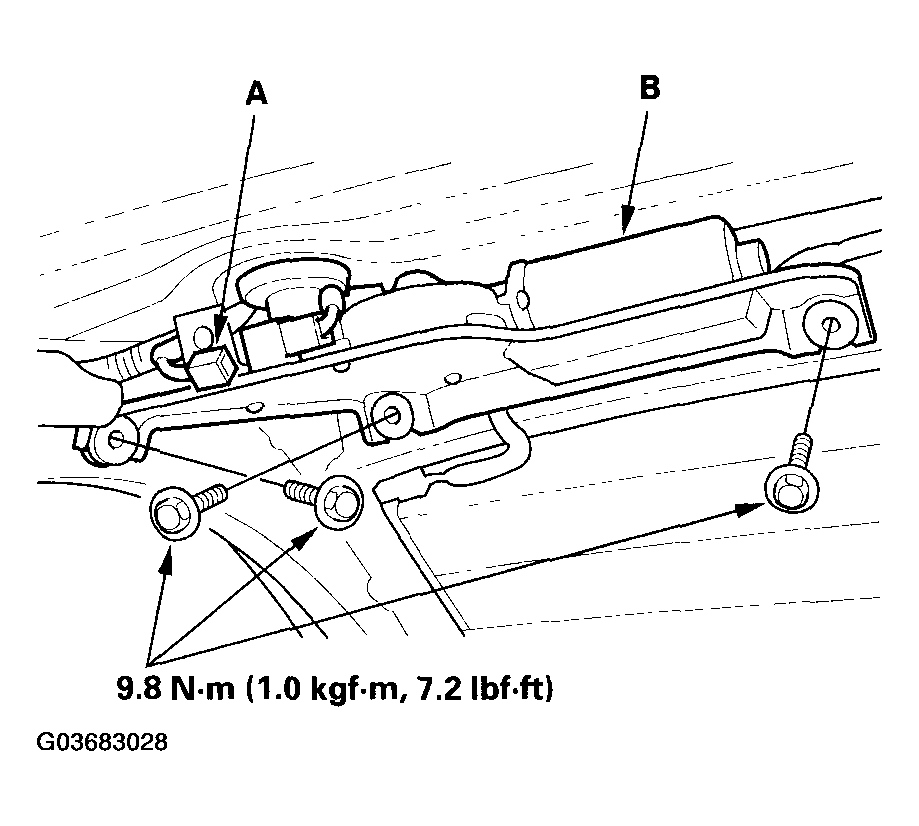

    Fig 2: Disconnecting 4P Connector From Motor And Torque Specifications
    G03683028Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the three mounting bolts, then remove the motor.
  5. Install in the reverse order of removal.
