Recirculation Control Motor Replacement

  1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Remove the wire harness clip (A), then disconnect the 4P connector (B) from the recirculation control motor (C). Remove the self-tapping screws and the recirculation control motor from the blower unit.

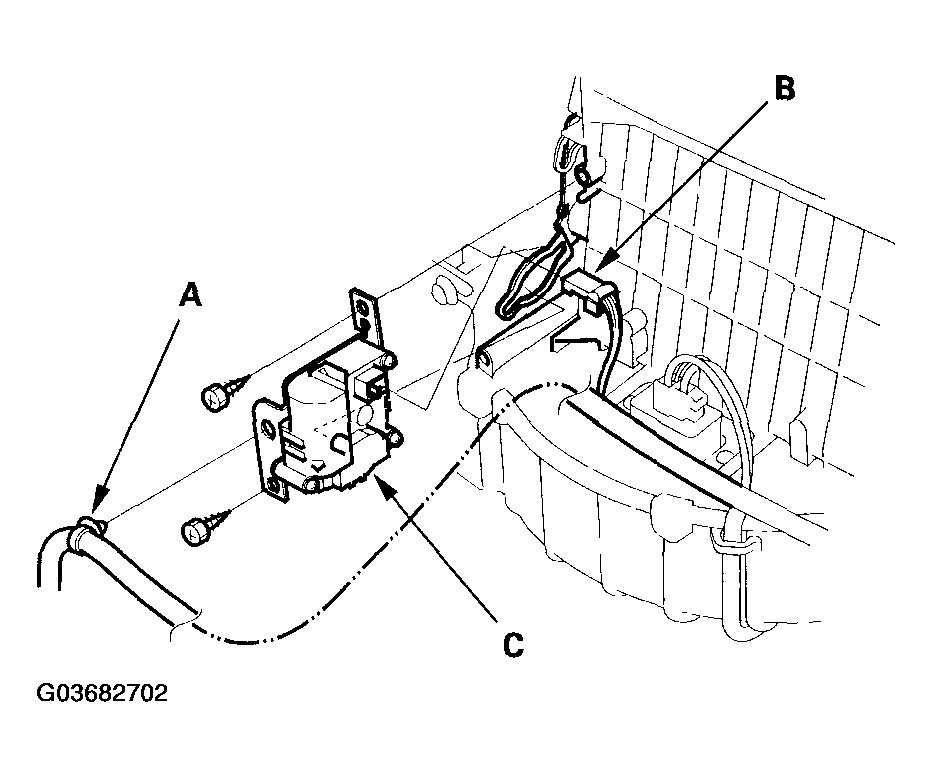

    Fig 1: Removing Wire Harness Clip And Disconnecting 4P Connector From Recirculation Control Motor
    G03682702Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
