Component Locations

COMPONENT LOCATIONS

Component Location
Underdash Fuse/Relay Box Under left side of dash. See Fig 1 .
Underhood Fuse/Relay Box Right side of engine compartment. See Fig 1 .
ABS Modulator Control Unit Left side of engine compartment. See Fig 1 .
Wheel Speed Sensor (4) At respective wheel. See Fig 1 .

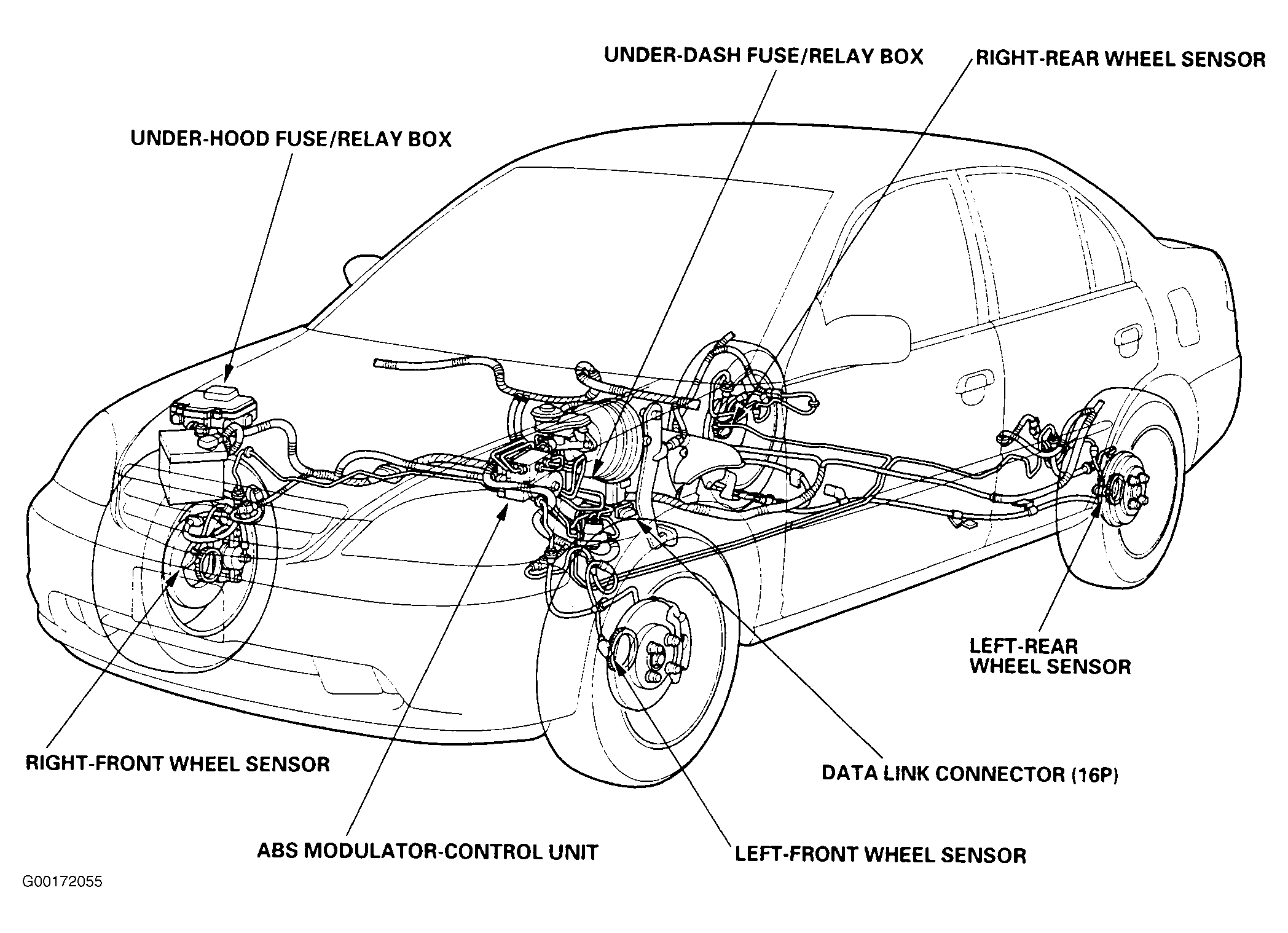

Fig 1: Locating ABS System Components
G00172055Courtesy of AMERICAN HONDA MOTOR CO., INC.
