Ignition System (Except Hatchback & Hybrid)
>>
Circuit Diagram
Circuit Diagram

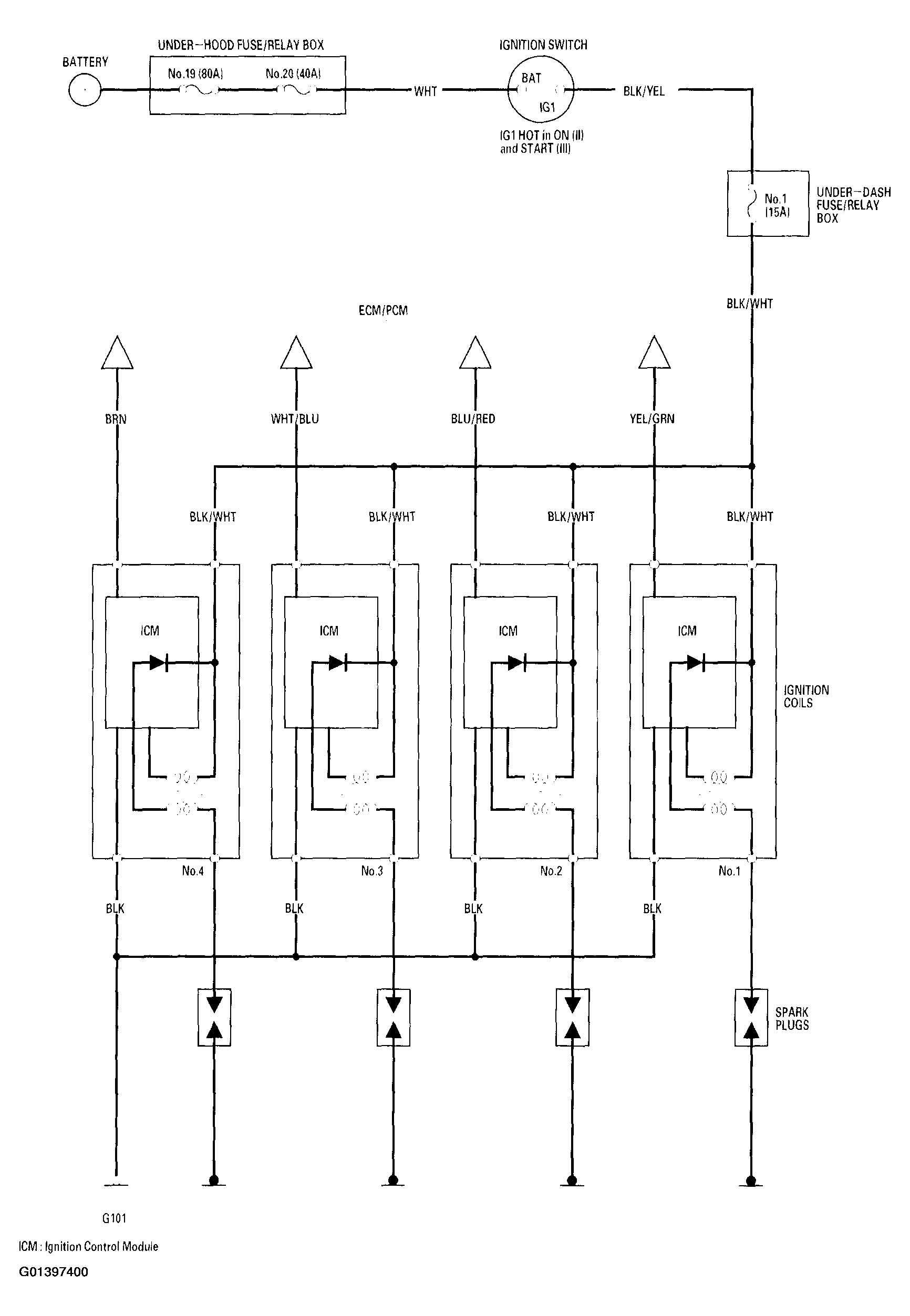

Fig 1: Ignition Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
