Parking Pin Switch: Installation

Route NEW OD switch wires through shift lever knob, shift lever and shift lever control bracket. Install knob onto shift lever and switch into knob. Install NEW park pin switch onto control checker, then install control checker onto shift lever control bracket.
Install OD switch wire terminals into connector cavities No. 1 and 2. See Fig 3. Install shift lock solenoid by aligning joint of shift lock solenoid plunger with tip of shift lock extension. Install shift lock solenoid screws.
Place shift lever in "N" position. Adjust OD switch wire clearance at shift lever control bracket. Wire clearance should be .5" (13 mm). See Fig 2.
To install remaining components, reverse removal procedure. Check shift lever and shift lock operation.

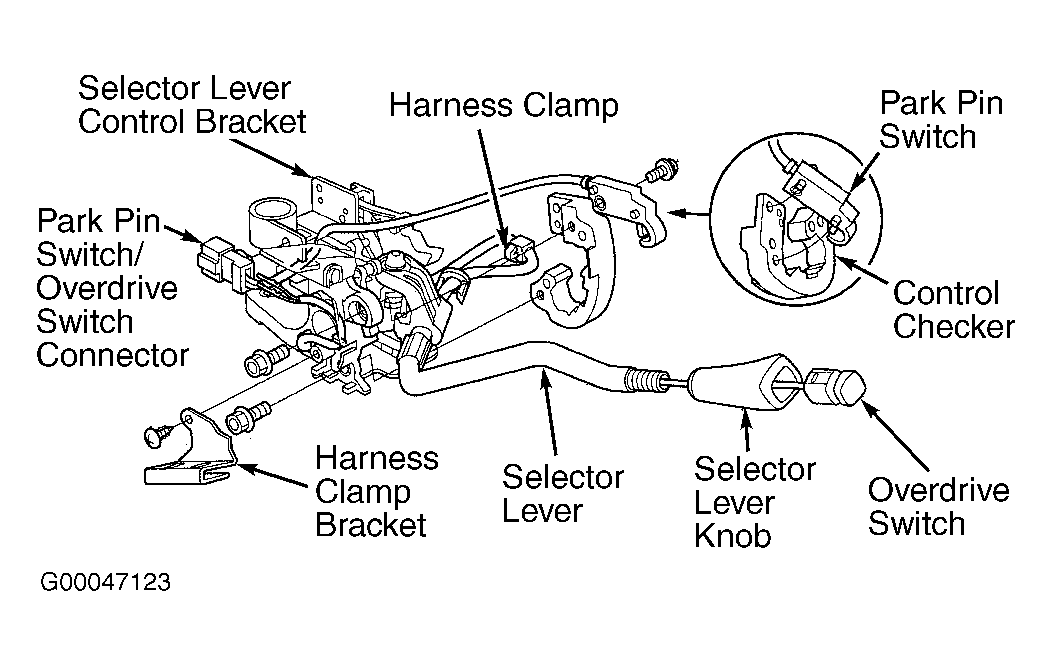

Fig 1: Exploded View Of Shift Lever Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

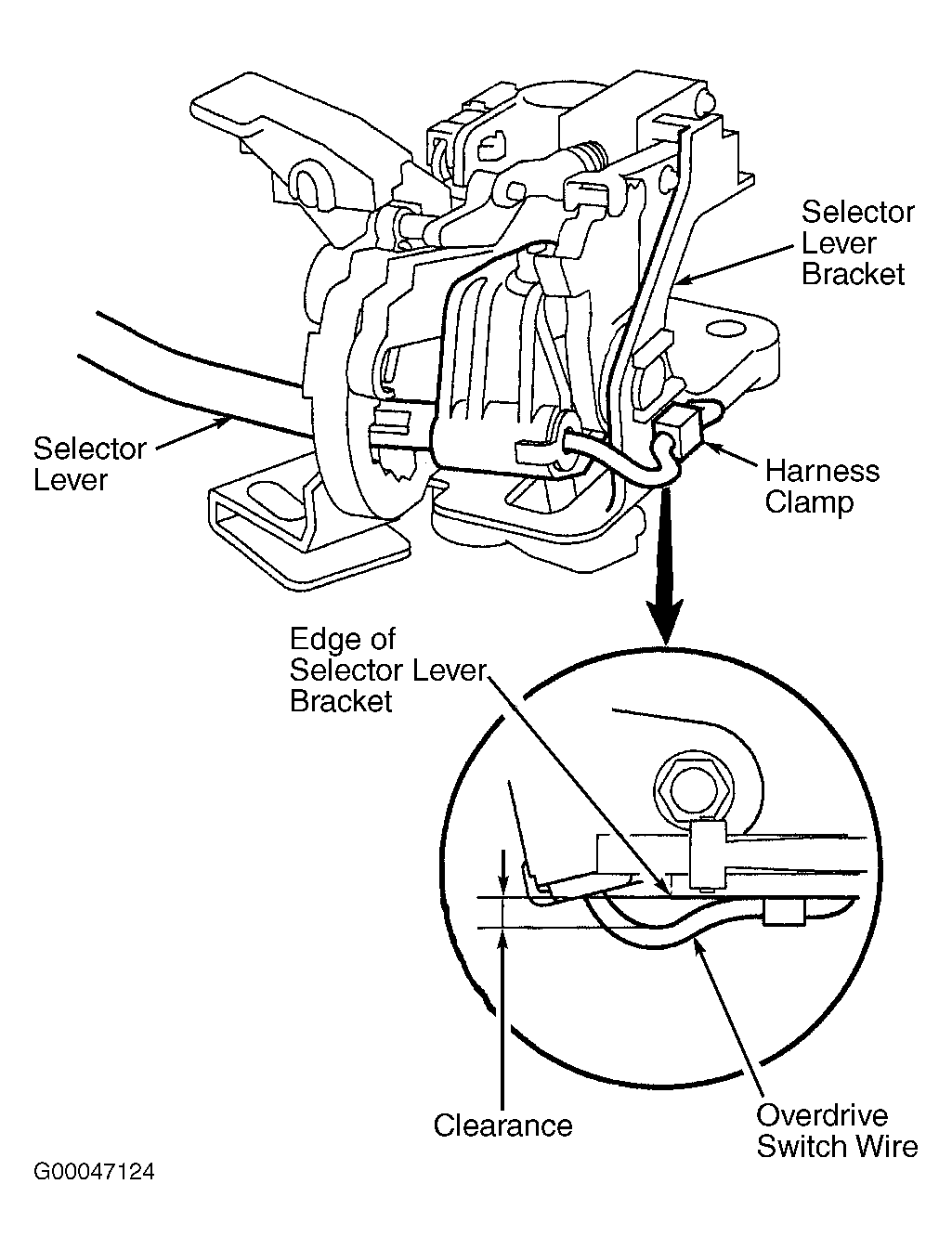

Fig 2: OD Switch Wire Adjustment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

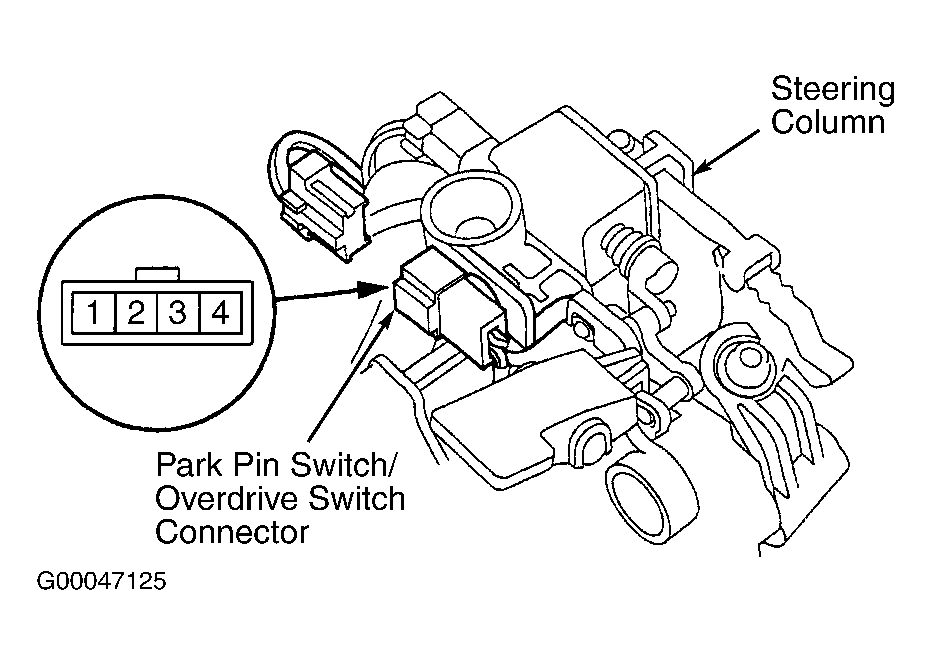

Fig 3: Identifying Park Pin Switch/OD Switch Harness Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
