Accord Value Package
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Multiplex Control System
>>
Circuit Diagram (Power, Ground, Communication Lines)
Circuit Diagram (Power, Ground, Communication Lines)

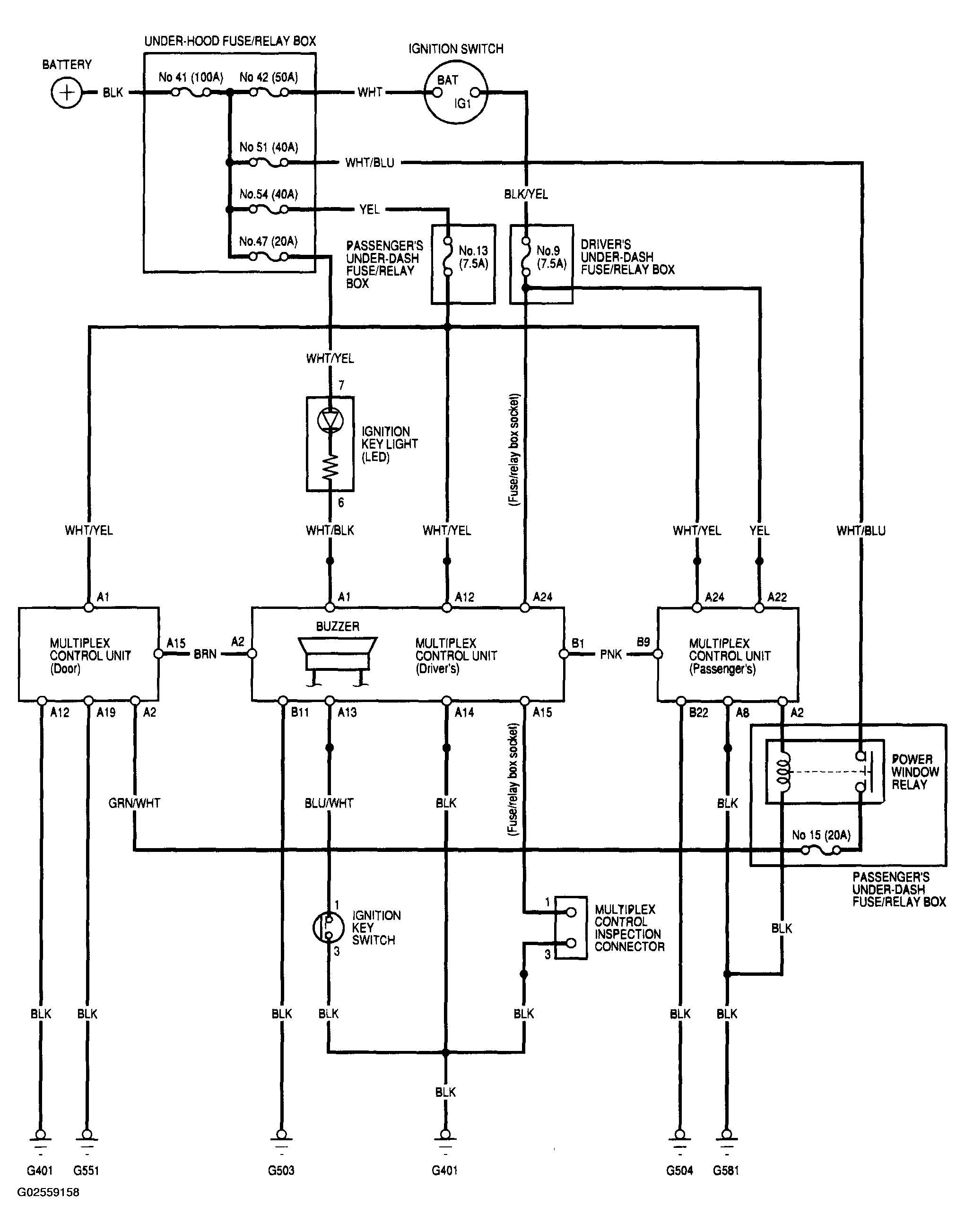

Fig 1: Multiplex Control System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
