Transmission Removal

NOTE: Use fender covers to avoid damaging painted surfaces.

Make sure you have the anti-theft code for the radio, then write down the audio presets. Disconnect the negative cable from the battery first, then disconnect the positive cable. Remove the battery.
Loosen the locknut, then remove the shift lever knob.

Fig 1: Removing Shift Lever Knob
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

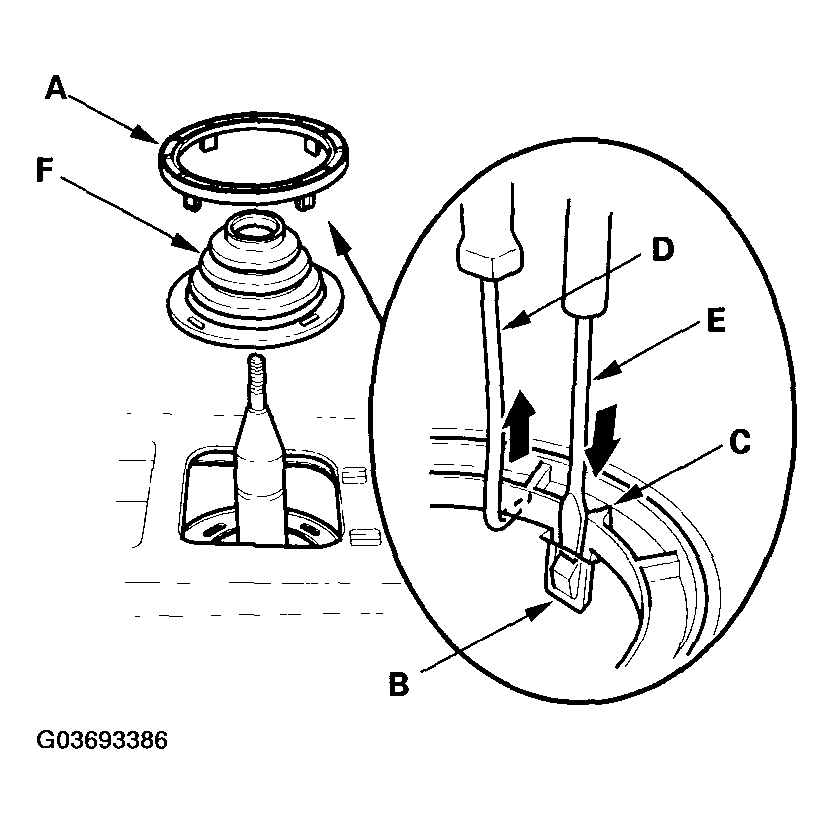

Remove the boot holder (A) by releasing the lock tabs (B) indicated by the arrowheads (C). Insert a hook-shaped tool (D) underneath the boot holder, and lift slightly while releasing the lock tabs with a flat-tip screwdriver (E).

Fig 2: Removing Boot Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull up and remove the boot holder and the shift boot (F).

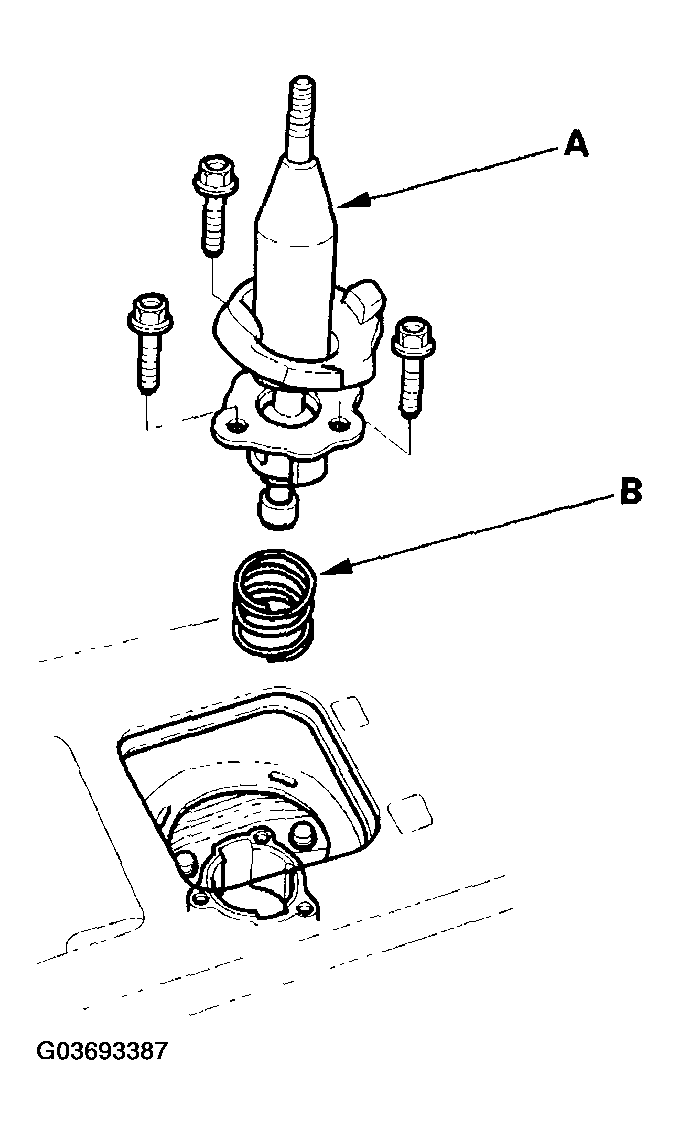

Remove the three bolts, then remove the shift lever (A) and the shift lever spring (B).

Fig 3: Removing Shift Lever And Shift Lever Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

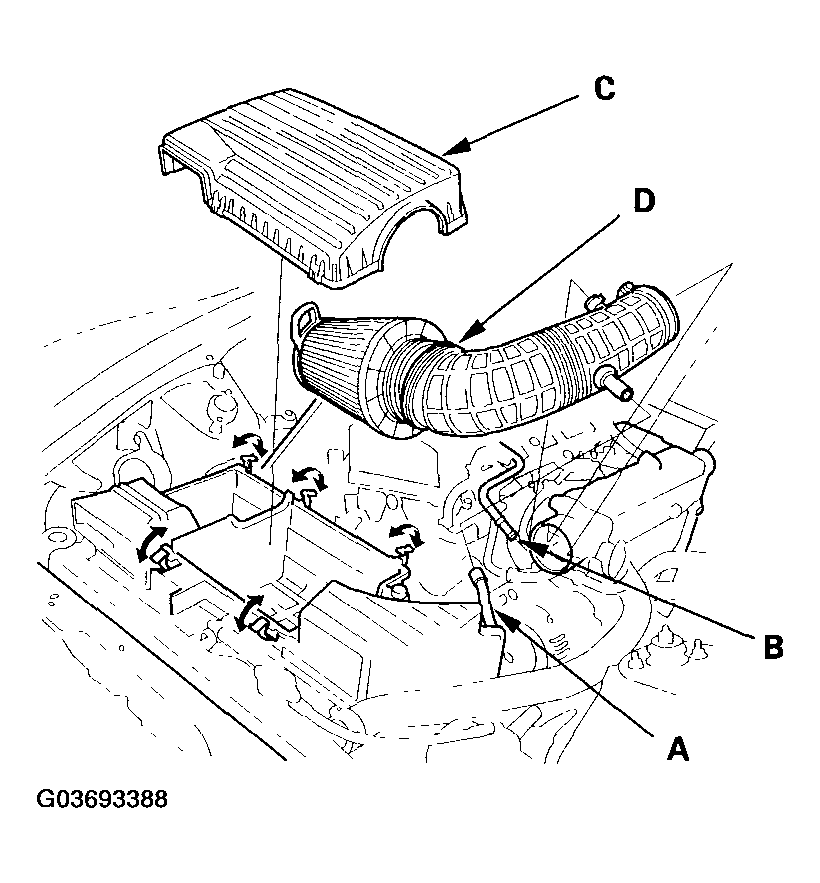

2000-2005 models: Disconnect the air hose (A) and breather pipe (B), then remove the air cleaner housing cover (C) and air cleaner element assembly (D).

Fig 4: Removing Air Cleaner Housing Cover And Air Cleaner Element Assembly (2000-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

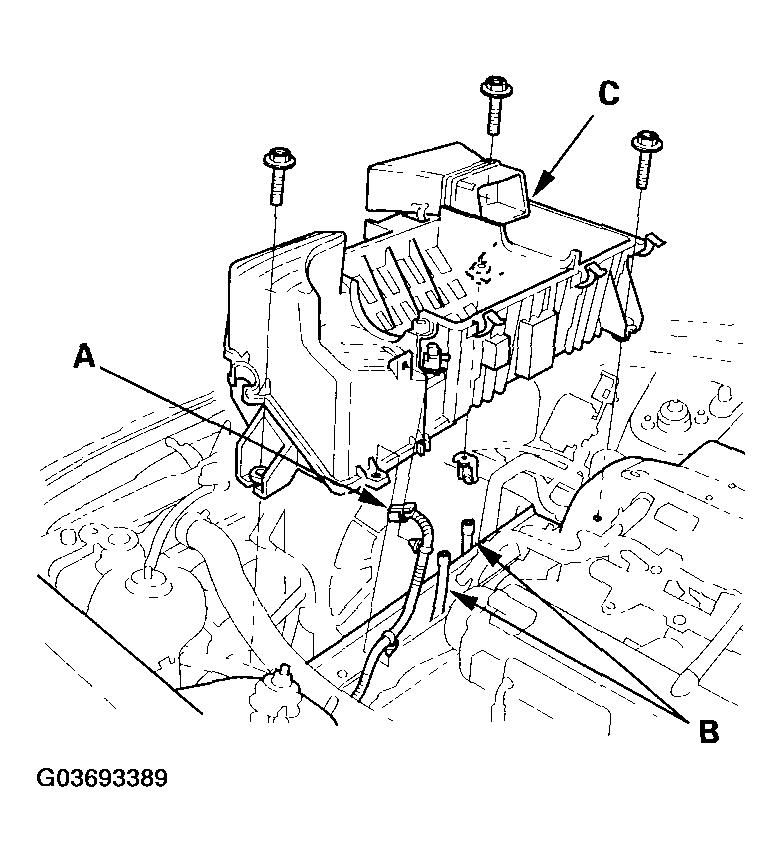

2000-2005 models: Disconnect the control solenoid valve connector (A) and vacuum hoses (B), then remove the air cleaner housing (C).

Fig 5: Removing Air Cleaner Housing (2000-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

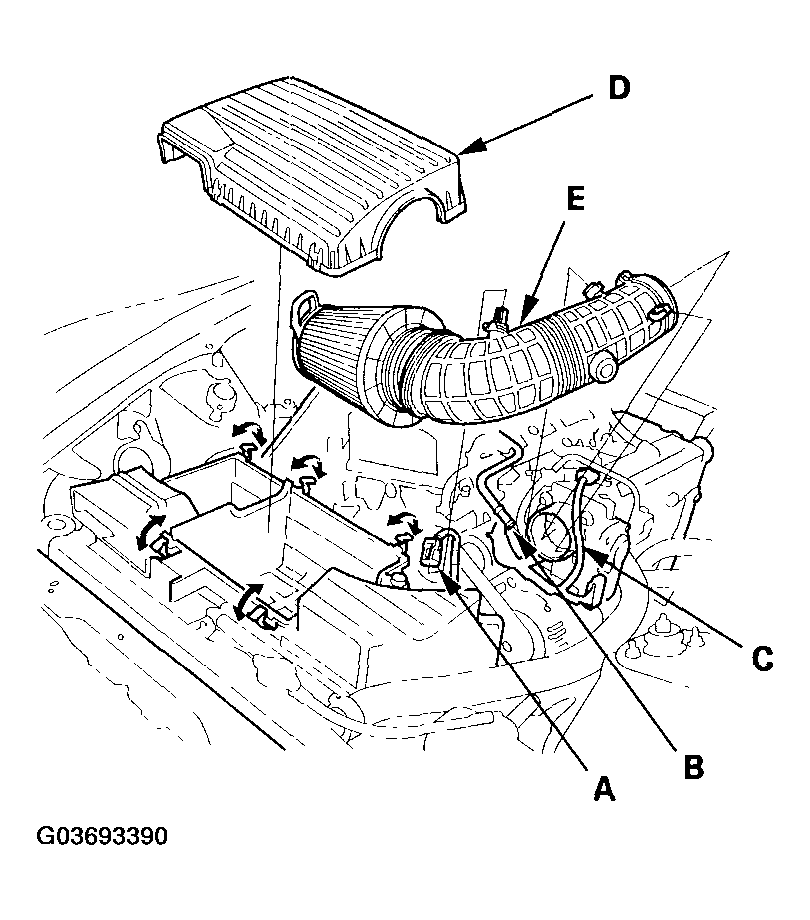

2006-08 model: Disconnect the intake air temperature (IAT) sensor connector (A) and breather pipe (B), remove the manifold absolute pressure (MAP) sensor harness (C) from the holder, then remove the air cleaner housing cover (D) and air cleaner element assembly (E).

Fig 6: Removing Air Cleaner Housing Cover And Air Cleaner Element Assembly (2006-08 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

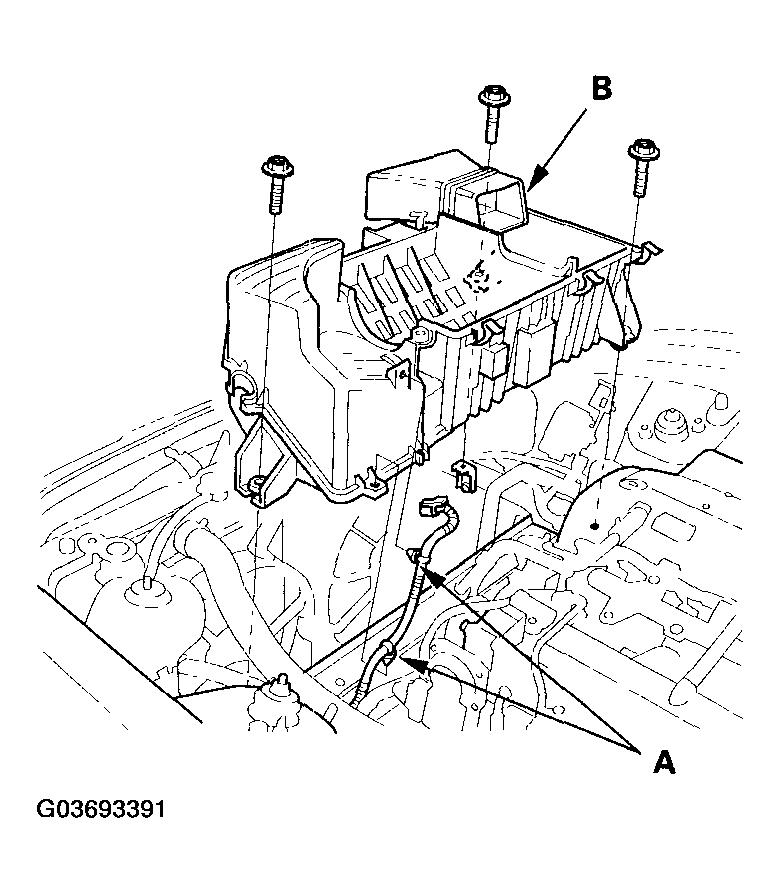

2006-08 model: Remove IAT sensor harness clamps (A), then remove the air cleaner housing (B).

Fig 7: Removing Air Cleaner Housing (2006-08 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

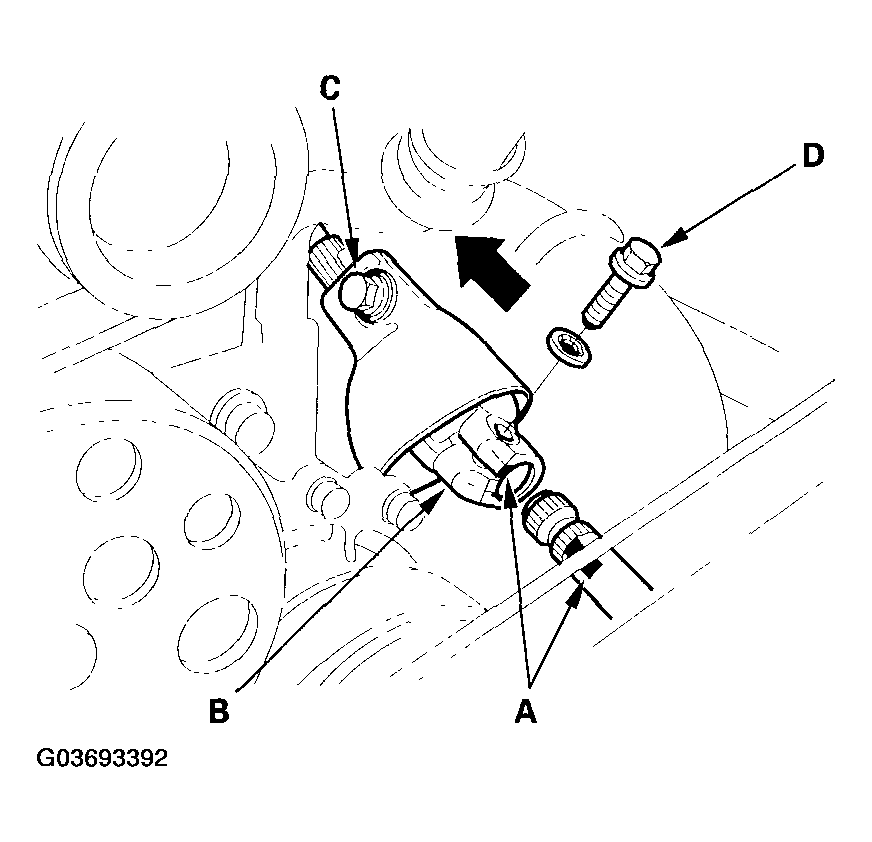

Turn the steering wheel to the straight-ahead position, then remove the key from the ignition switch to lock the steering column. Make a reference mark (A) across the steering joint (B).

Fig 8: Making Reference Mark Across Steering Joint
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the upper steering joint bolt (C), and remove the lower steering joint bolt (D). Disconnect the steering joint from the gear box.
Remove the alternator-compressor belt and the alternator {see ALTERNATOR REMOVAL AND INSTALLATION ).

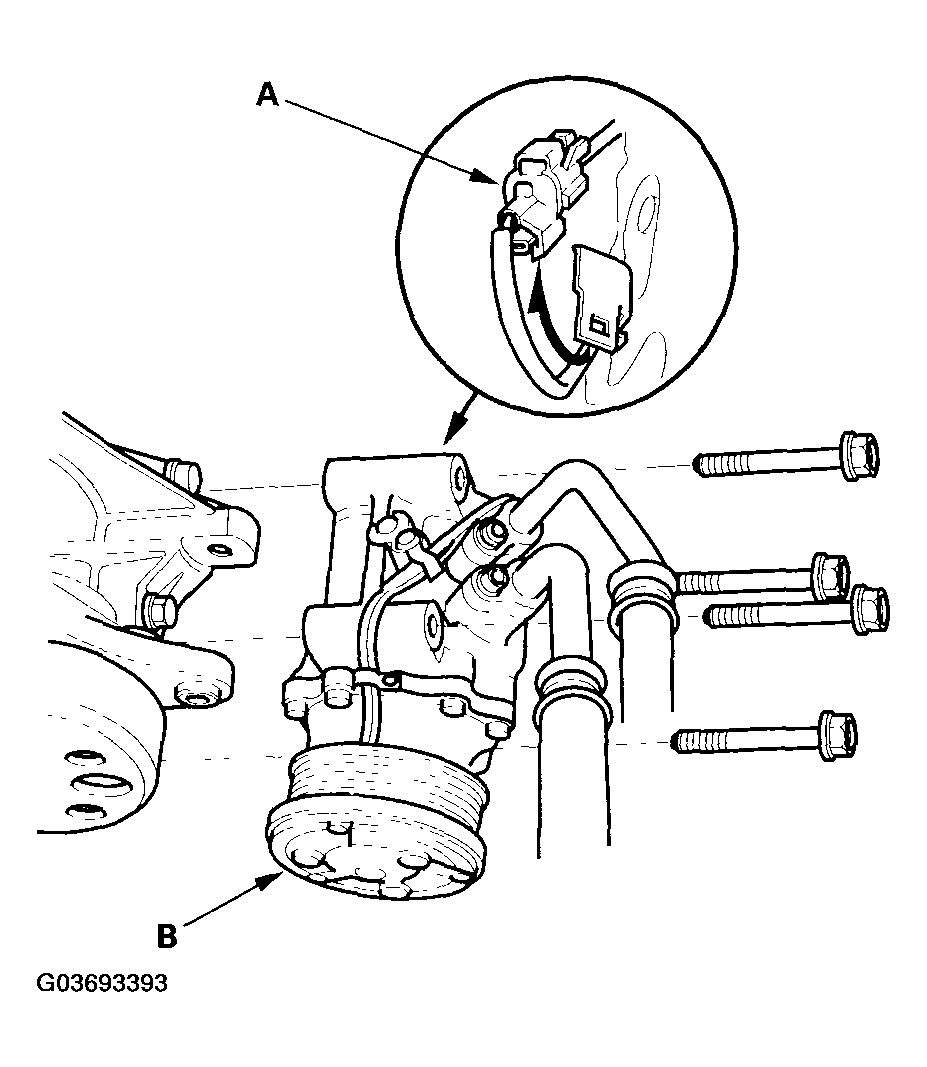

Disconnect the 1P connector (A), then remove the four mounting bolts and the A/C compressor (B). Hang the A/C compressor to the body with a suitable strap.

Fig 9: Disconnecting 1P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

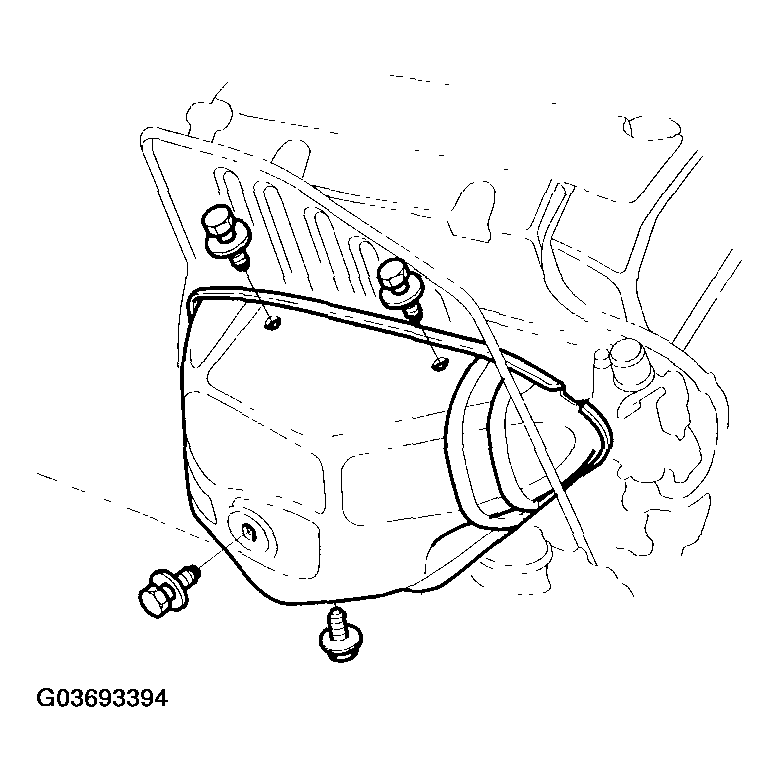

Remove the four exhaust manifold cover mounting bolts.

Fig 10: Removing Four Exhaust Manifold Cover Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

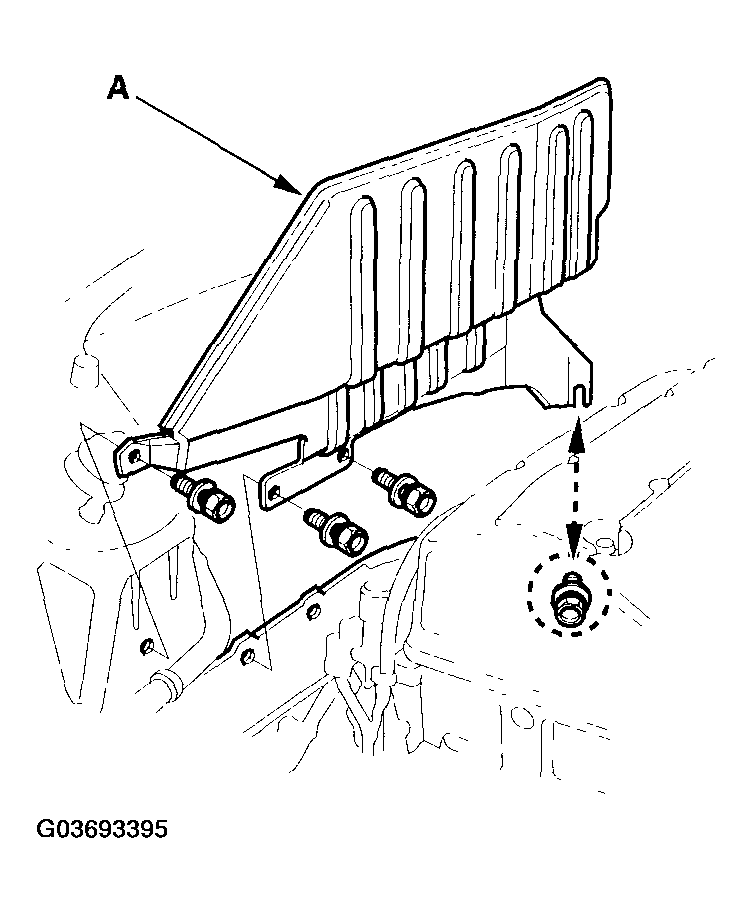

Remove the heat shield (A), then remove the exhaust manifold cover.

Fig 11: Removing Heat Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

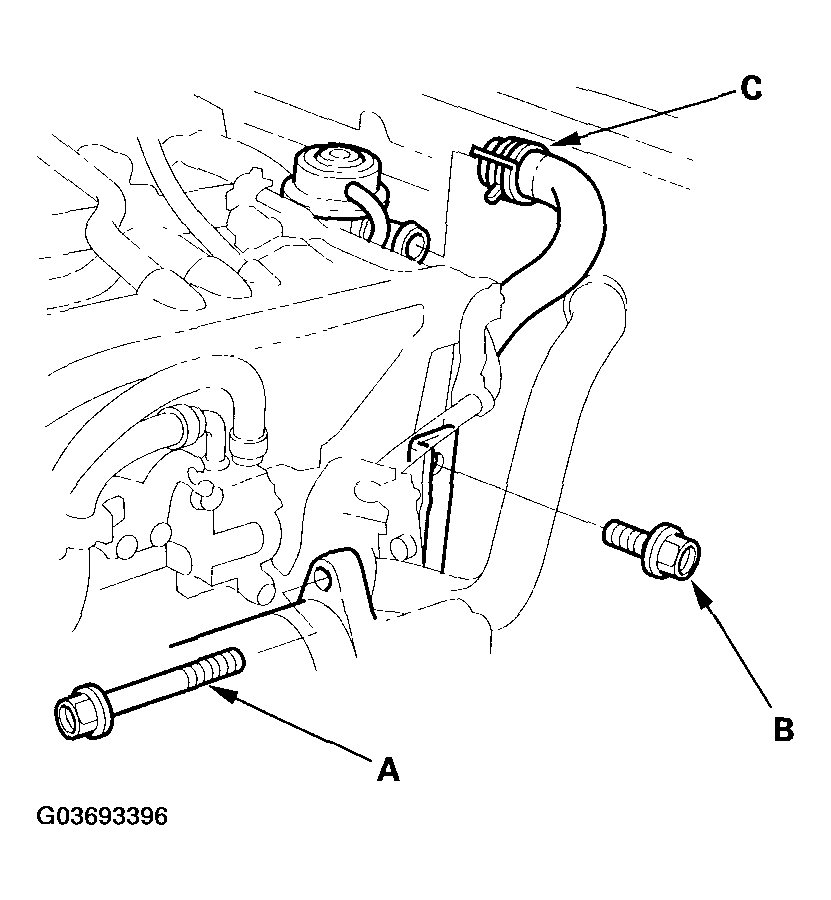

2000-2005 models: Remove the upper starter motor mounting bolt (A) and upper intake manifold bracket mounting bolt (B). Disconnect the hose (C) from the suction valve.

Fig 12: Removing Upper Starter Motor Mounting Bolt (2000-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
2006-08 model: Remove the upper starter motor mounting bolt (A) and upper intake manifold bracket mounting bolt (B).

Fig 13: Removing Upper Starter Motor Mounting Bolt (2006-08 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

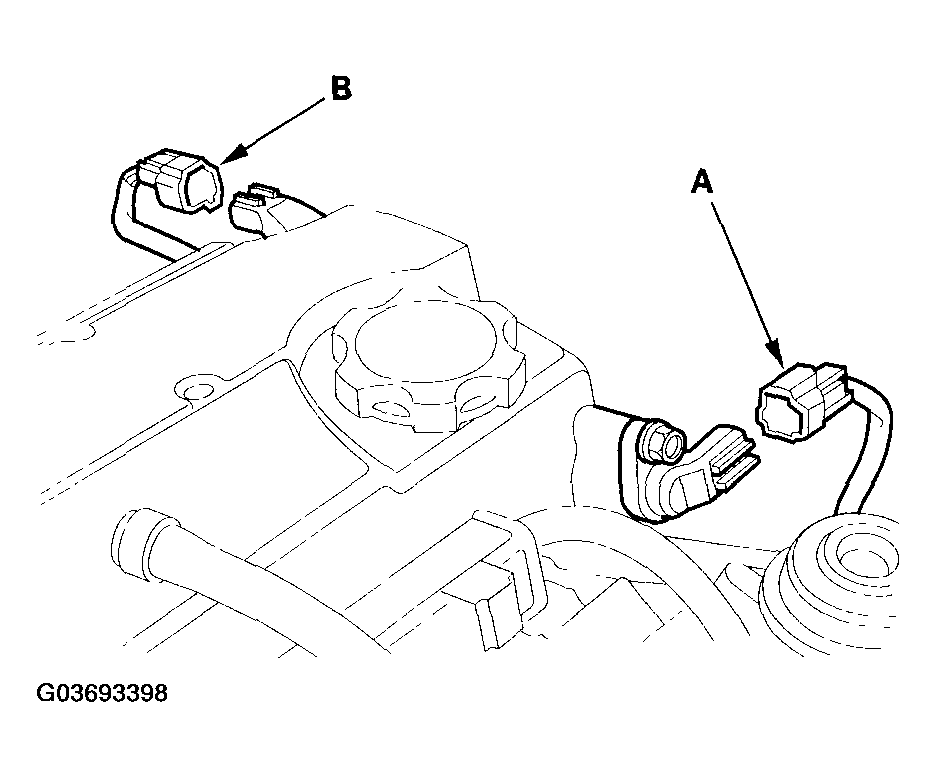

2000-2005 models: Disconnect the camshaft position (CMP) sensor A (top dead center (TDC) sensor 1) and CMP sensor B (TDC sensor 2) connectors.

Fig 14: Disconnecting Camshaft Position Sensor (Top Dead Center Sensor 1) And CMP Sensor (TDC Sensor 2) Connectors (2000-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

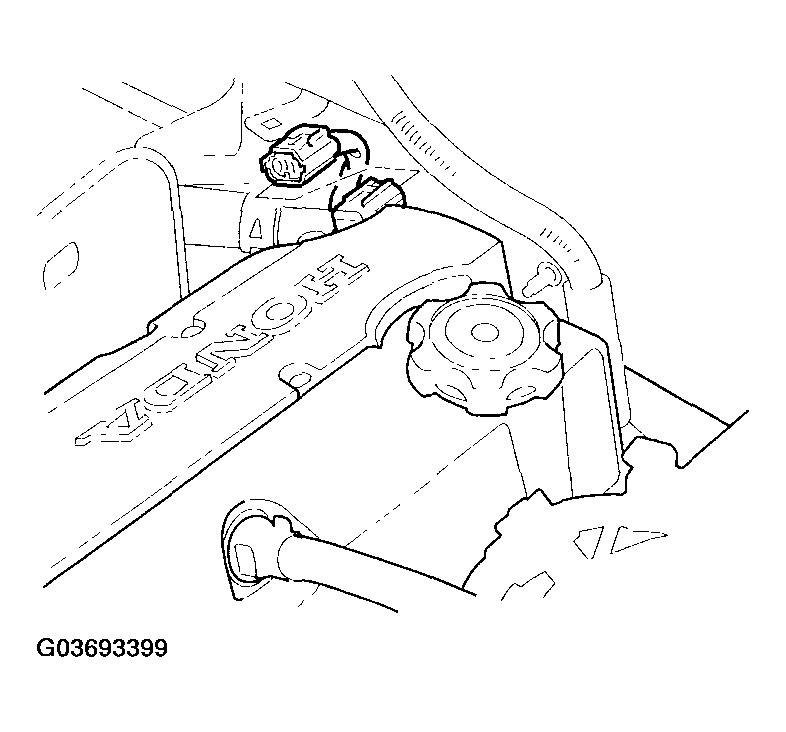

2006-08 model: Disconnect the camshaft position (CMP) sensor connector.

Fig 15: Disconnecting Camshaft Position Sensor Connector (2006-08 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

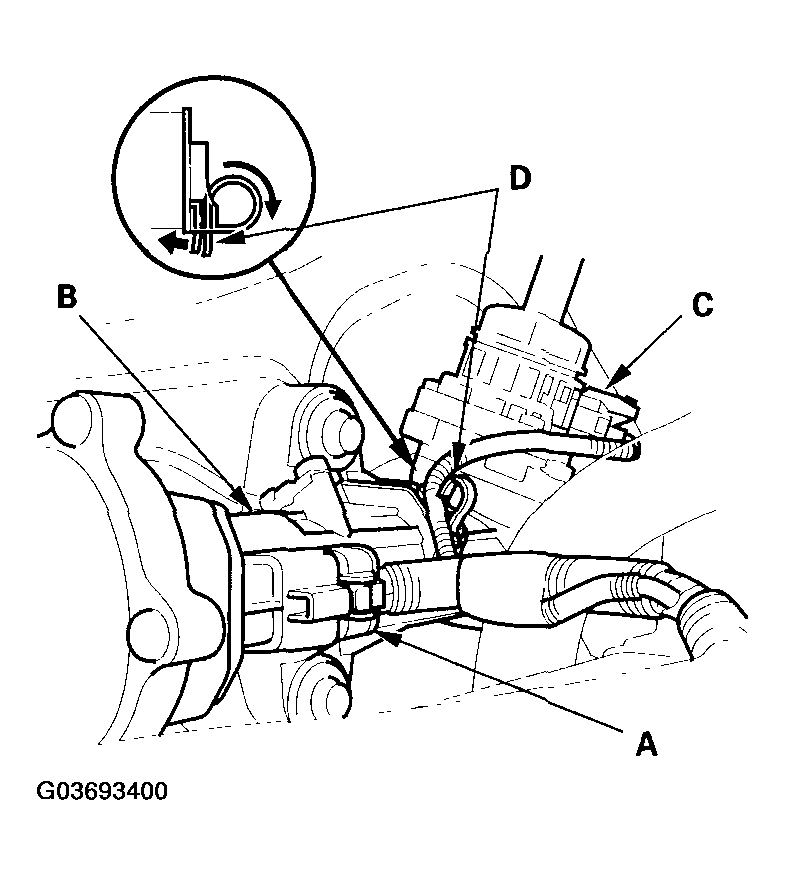

Disconnect the 2P connector (A) from the steering gearbox (B).

Fig 16: Disconnecting 2P Connector From Steering Gearbox
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the torque sensor 3P connector (C), and remove the wire harness clamp (D).
Raise the vehicle, and make sure it is securely supported.

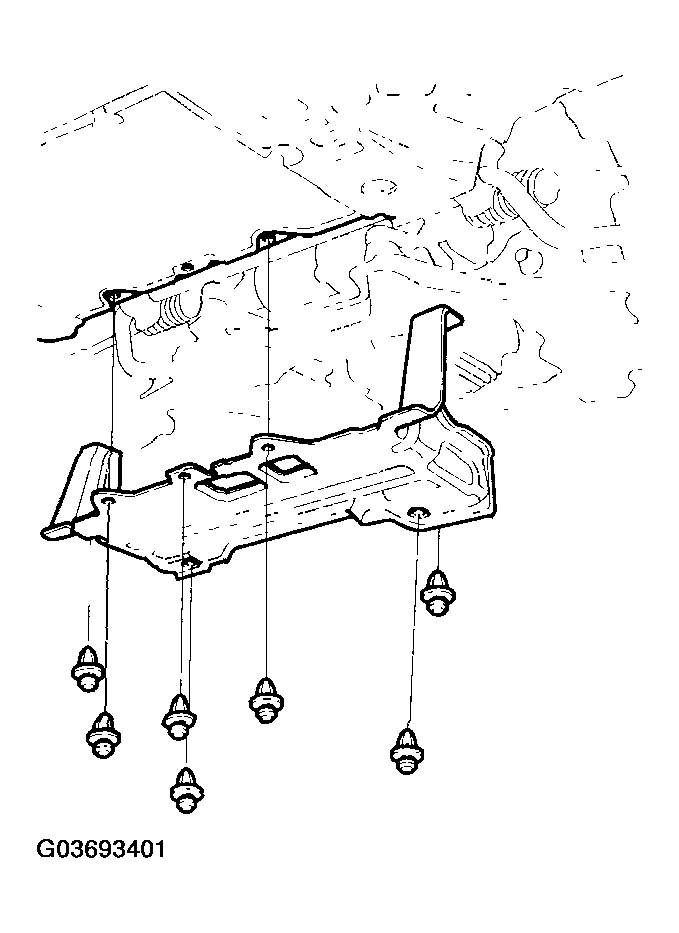

Remove the splash shield.

Fig 17: Removing Splash Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Drain the transmission fluid. Install the drain plug with a new washer (see EXPLODED VIEW-REAR COVER ).

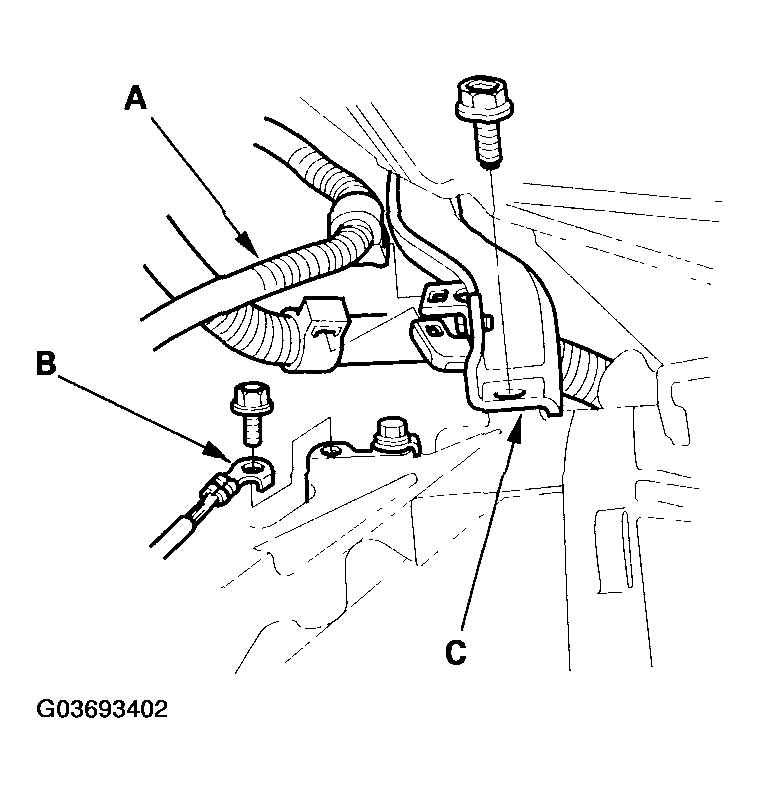

Remove the wire harness (A), ground cable (B), and lower intake manifold bracket mounting bolt, then remove the intake manifold bracket (C).

Fig 18: Removing Intake Manifold Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

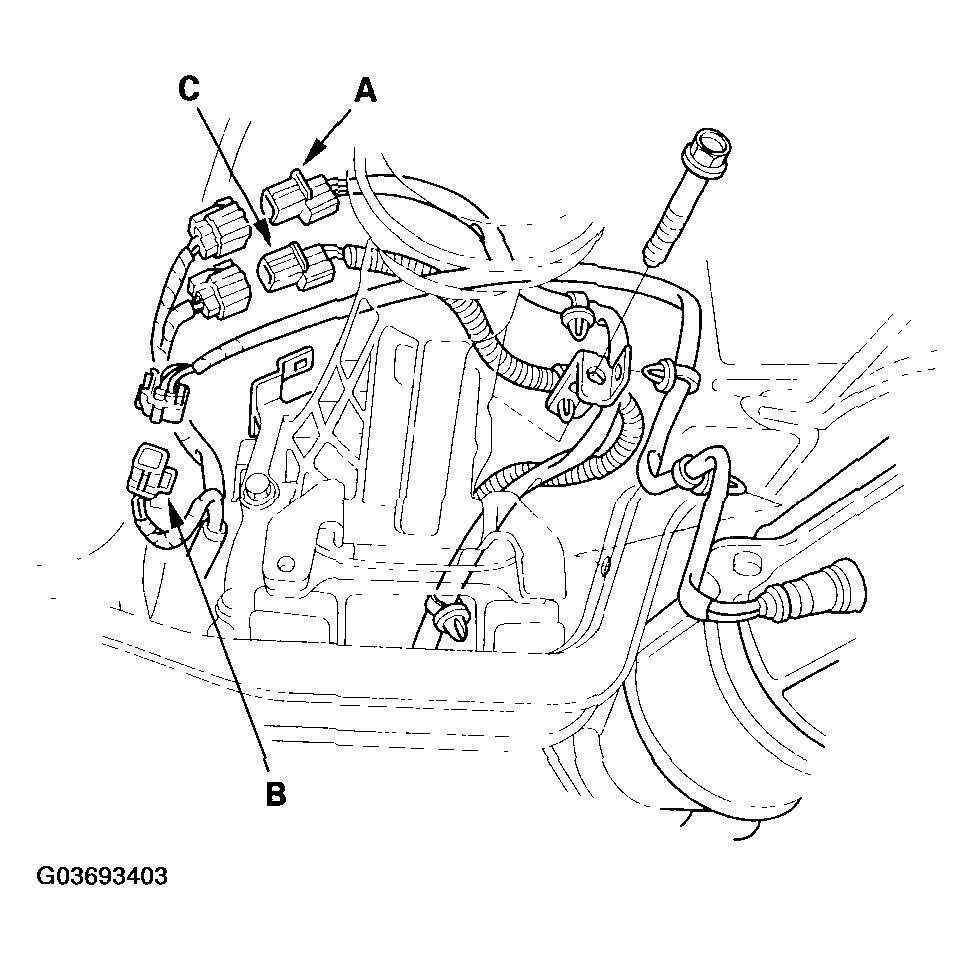

Disconnect the primary heated oxygen sensor (primary HO2S) (sensor 1) (2000-2005 models), the air fuel ratio (A/F) sensor (sensor 1) (2006-08 model) (A), secondary heated oxygen sensor (secondary HO2S) (sensor 2) (B), and the back-up light switch (C) connectors, then remove the wire harness from the transmission.

Fig 19: Removing Back-Up Light Switch Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

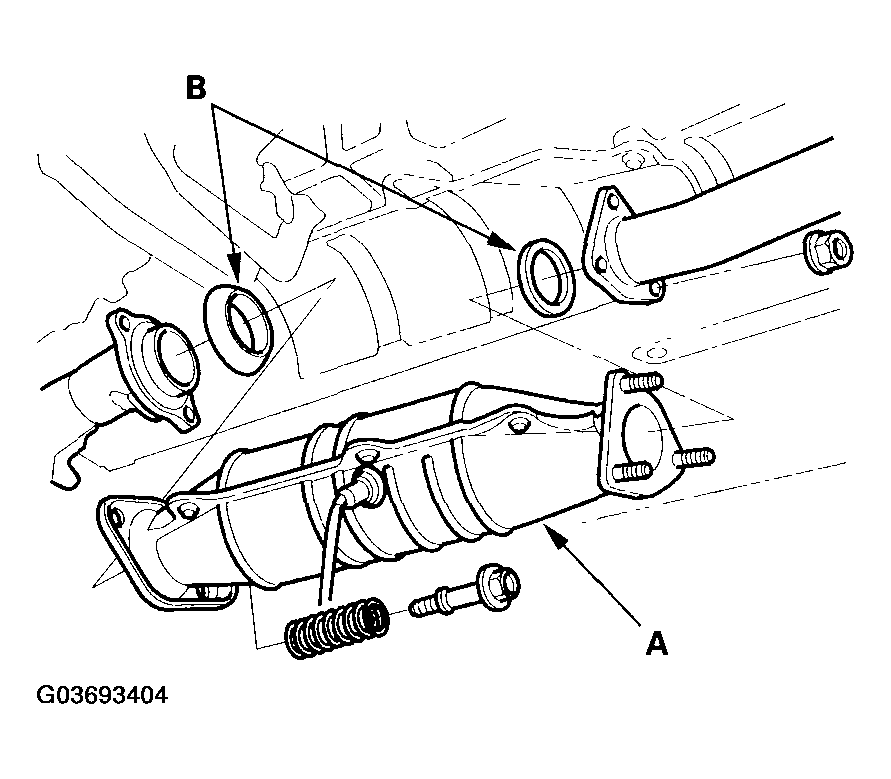

Remove the three way catalytic converter (TWO (A) and gaskets (B).

Fig 20: Removing Three Way Catalytic Converter And Gaskets
Courtesy of AMERICAN HONDA MOTOR CO., INC.

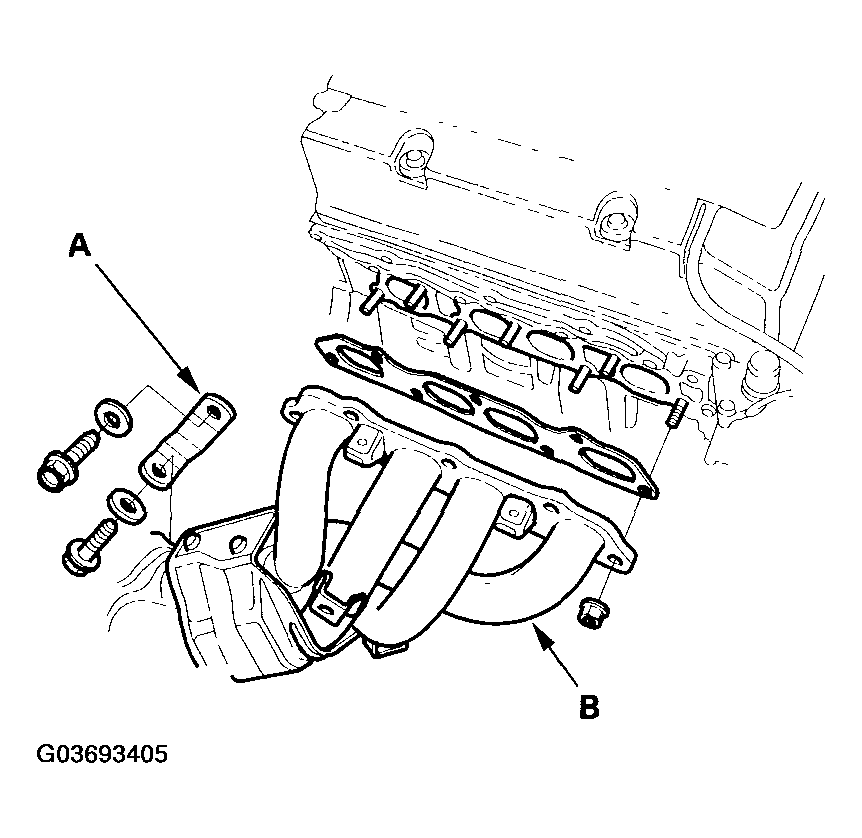

Remove the exhaust manifold bracket (A) and the exhaust manifold (B).

Fig 21: Removing Exhaust Manifold Bracket And Exhaust Manifold
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the propeller shaft (see PROPELLER SHAFT REMOVAL ).

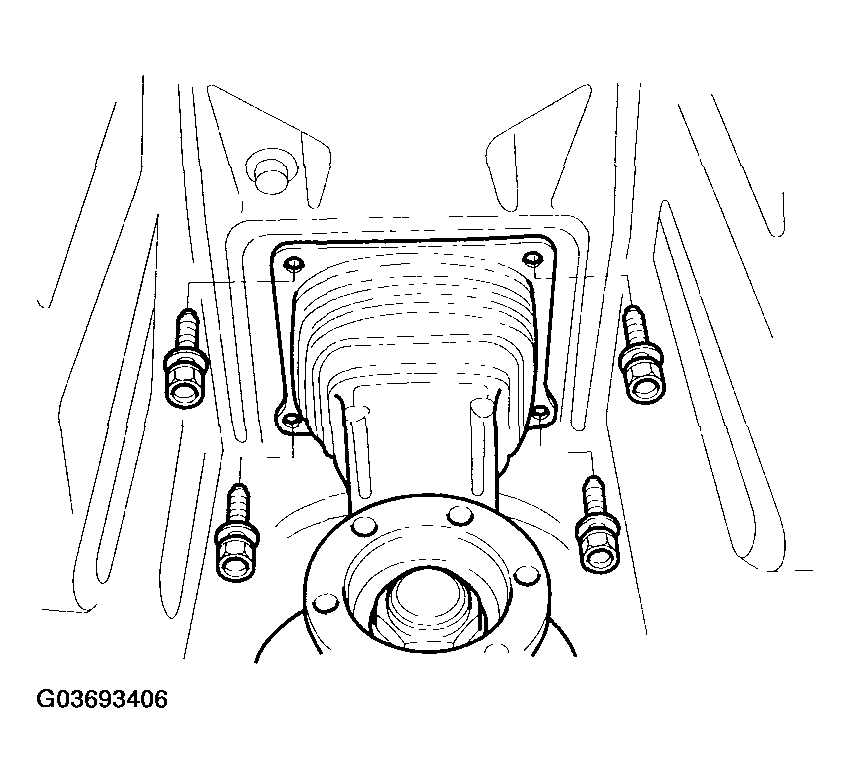

Remove the four shift boot holder mounting bolts.

Fig 22: Removing Four Shift Boot Holder Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

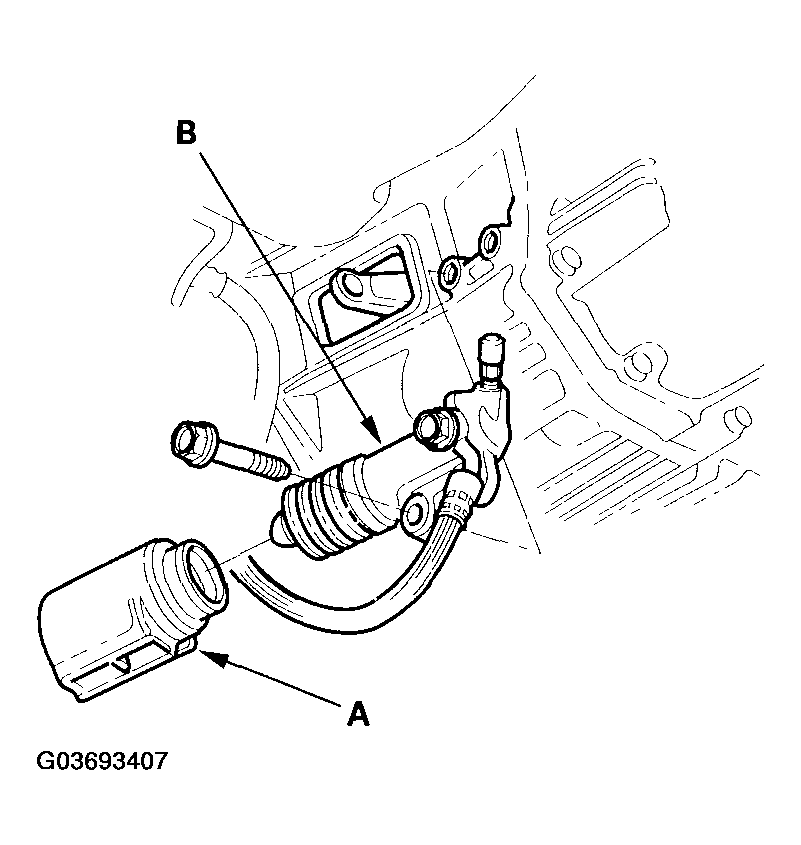

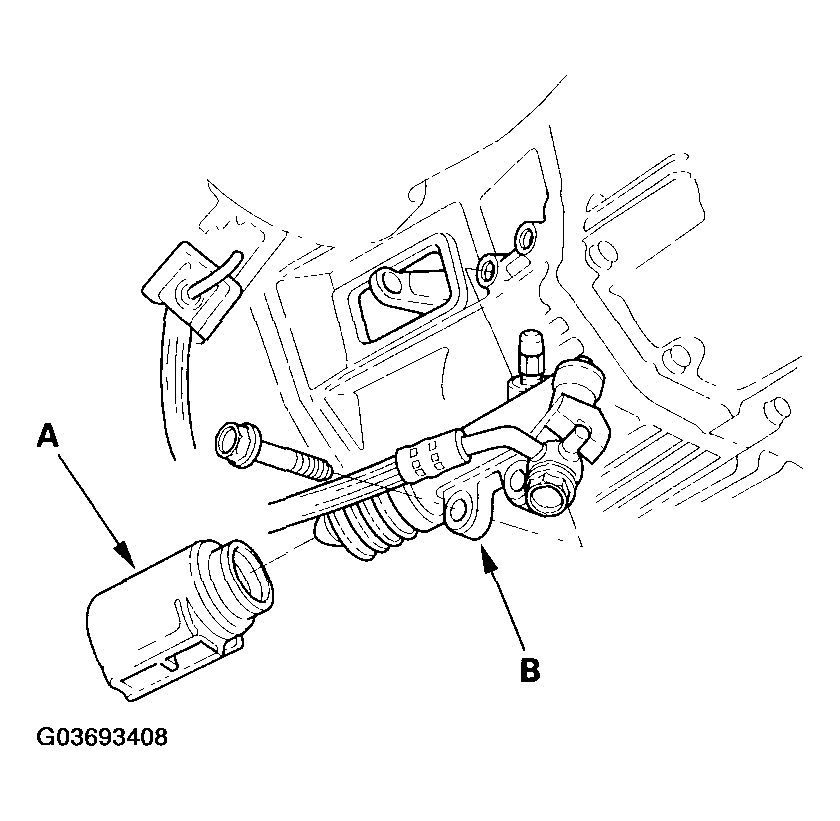

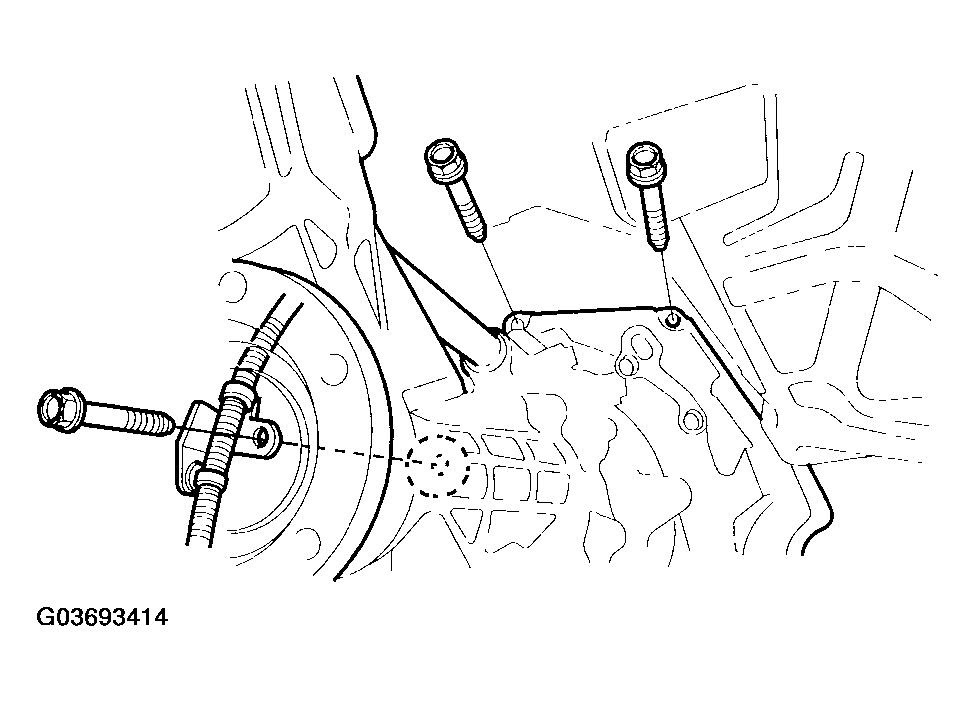

Remove the release fork boot (A), then carefully remove the slave cylinder (B). Do not press the clutch pedal once the slave cylinder has been removed.
2000-2003 models:

Fig 23: Removing Slave Cylinder (2000-2003 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2004-2008 models:

Fig 24: Removing Slave Cylinder (2004-2008 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

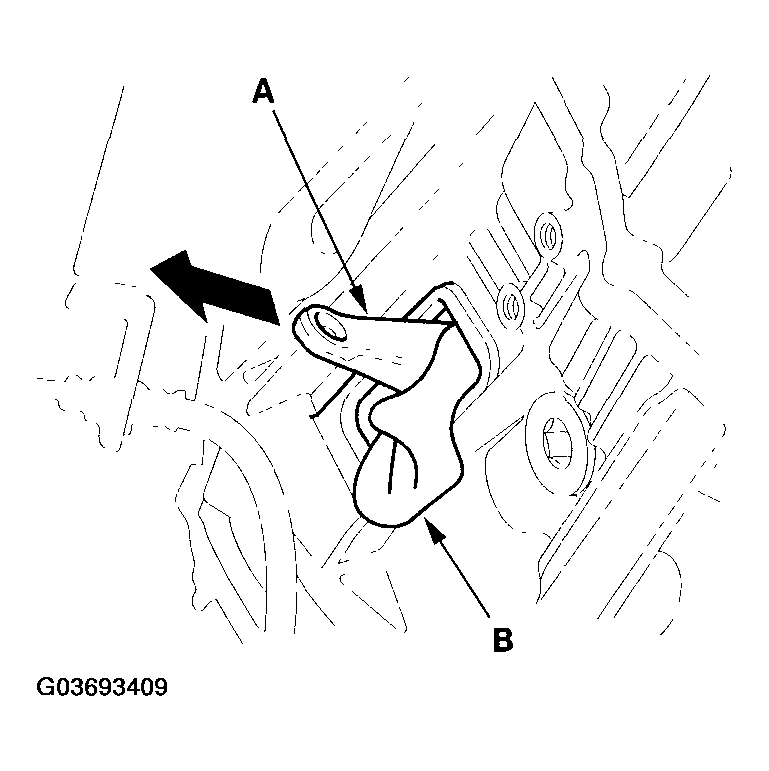

Pull out the release fork (A) from the release fork hanger. Wedge a shop towel (B) between the opening in the clutch housing and the release fork to hold the release fork in place.

Fig 25: Pulling Out Release Fork From Release Fork Hanger
Courtesy of AMERICAN HONDA MOTOR CO., INC.

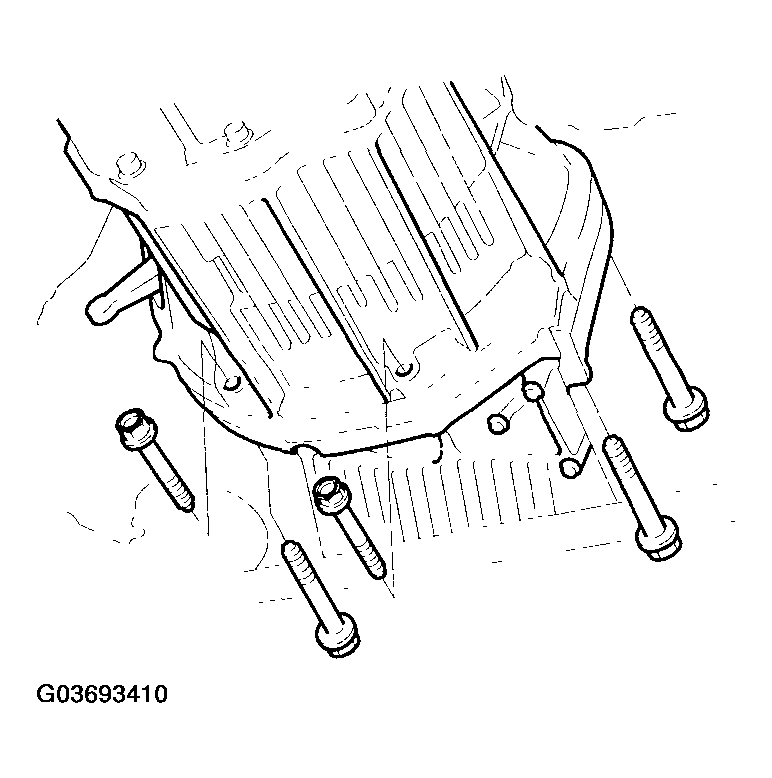

Remove the five lower transmission mounting bolts.

Fig 26: Removing Five Lower Transmission Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Place a floor jack under the front subframe and the engine mounting stiffener.

Fig 27: Placing Floor Jack Under Front Subframe And Engine Mounting Stiffener
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two center mounting bolts.

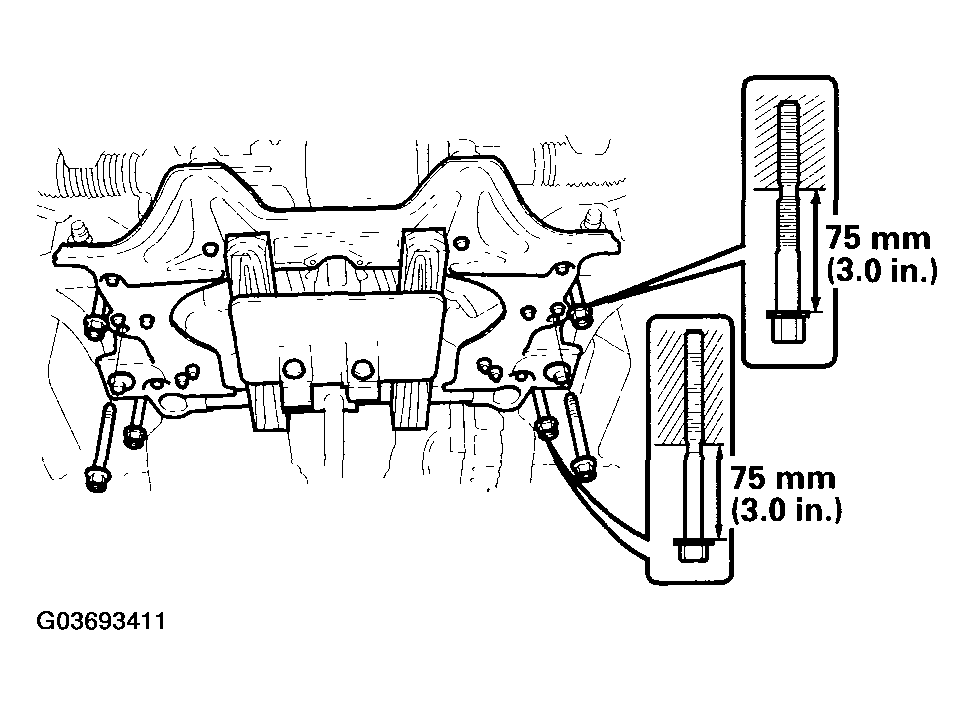

Loosen the four mounting bolts 75 mm (3.0 in.) as shown.
Lower the front subframe in until it touches the four loosened mounting bolts.
Place the floor jack under the transmission, and remove the three transmission rear mount bolts.

Fig 28: Removing Three Transmission Rear Mount Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

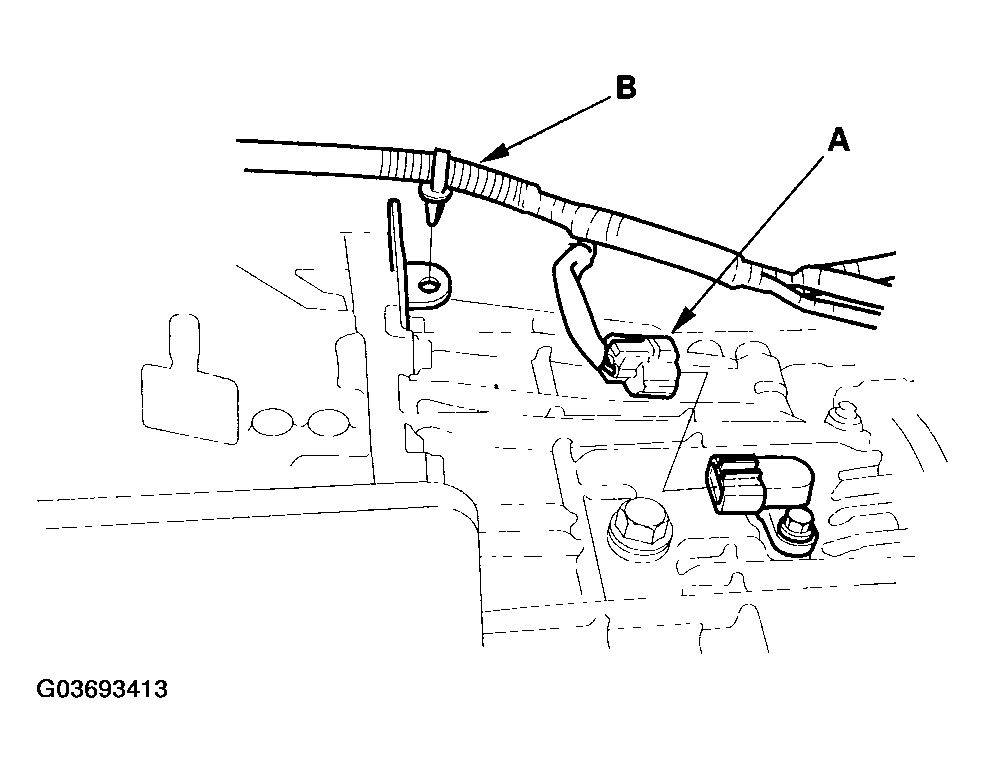

Lower the transmission. Disconnect the vehicle speed sensor (VSS) (2000-2005 models) or the output shaft (countershaft) speed sensor (2006-08 model) connector (A), then remove the wire harness (B) from the transmission.

Fig 29: Disconnecting Vehicle Speed Sensor (2000-2005 Models) Or Output Shaft Speed Sensor (2006-08 Model) Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the three upper transmission mounting bolts.

Fig 30: Removing Three Upper Transmission Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the transmission away from the engine until it clears the mainshaft, then lower the transmission on the jack.

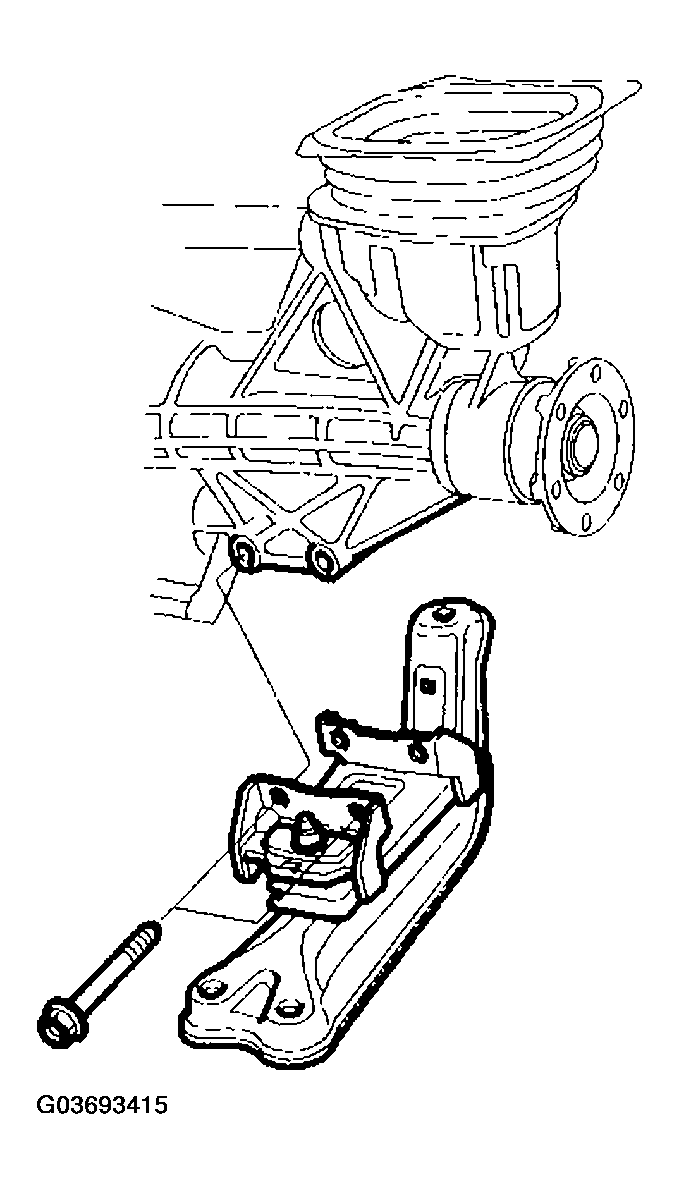

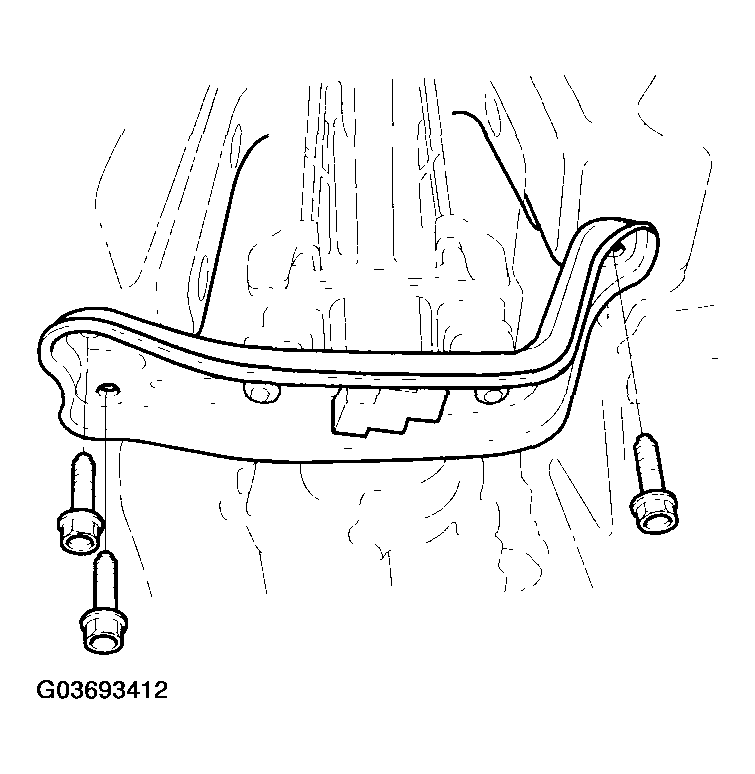

Remove the transmission rear mount from the transmission.

Fig 31: Removing Transmission Rear Mount From Transmission
Courtesy of AMERICAN HONDA MOTOR CO., INC.
