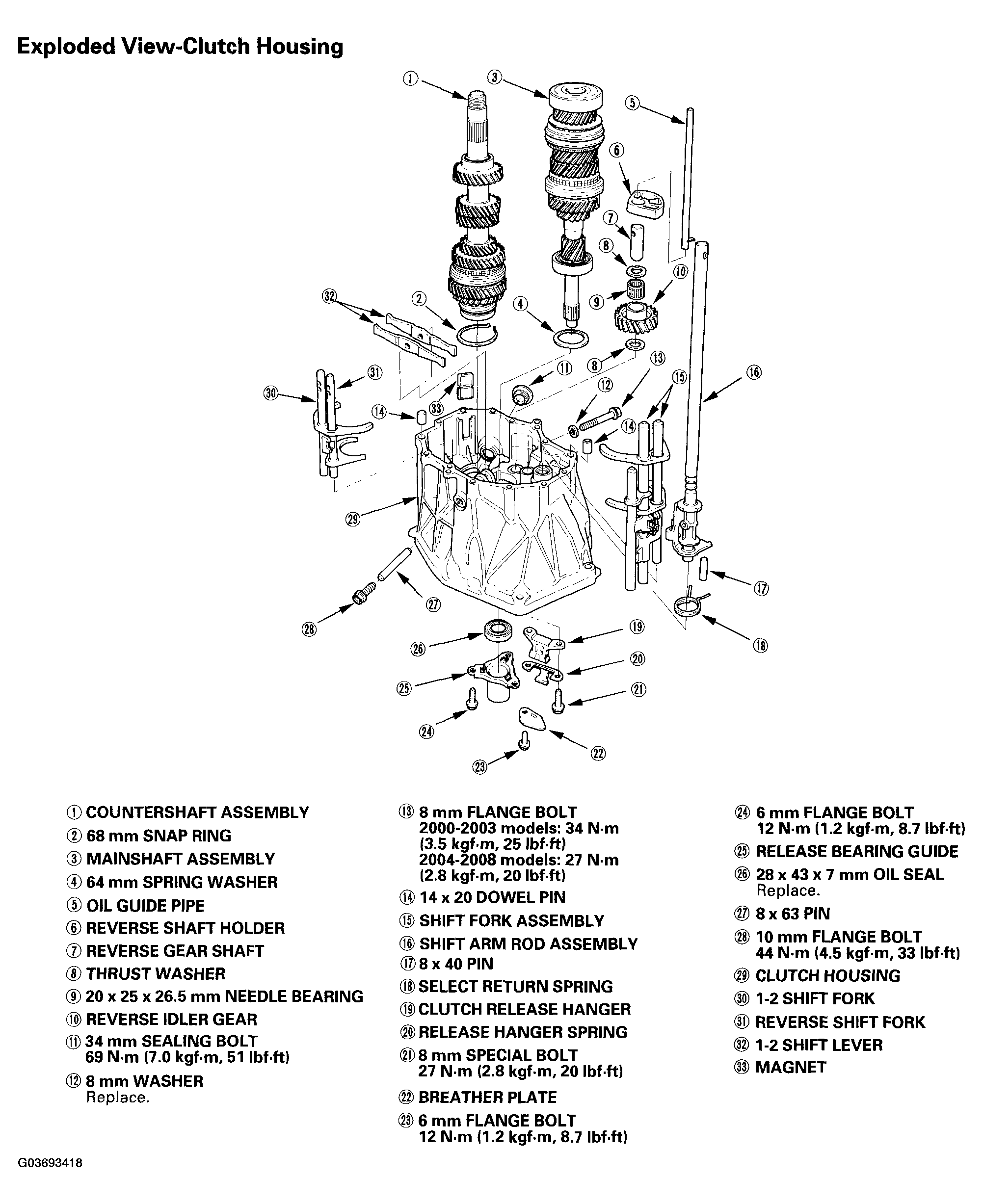

Exploded View-Clutch Housing

Fig 1: Exploded View-Clutch Housing With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Holder handle 07JAB-001020A
• Mainshaft holder 07PAB-001A300
• Companion flange holder 07RAB-TB4010B
• Adjustable bearing puller, 20-40 mm 07736-A01000B
