Ceiling Light/Spotlights Connector End View

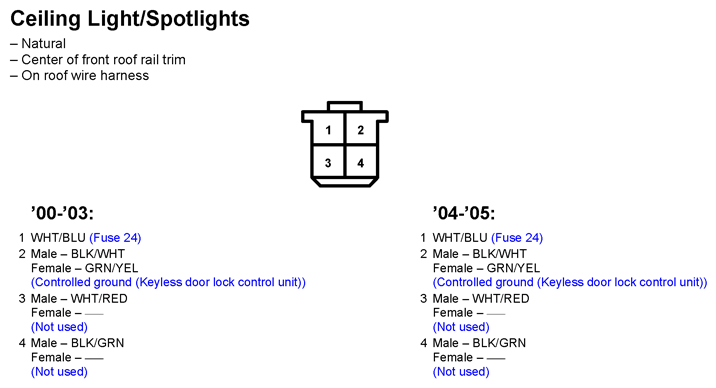

Fig 1: Ceiling Light/Spotlights Connector End View

G11250138

Courtesy of AMERICAN HONDA MOTOR CO., INC.
