Air Pump Electrical Current Sensor Connector End View

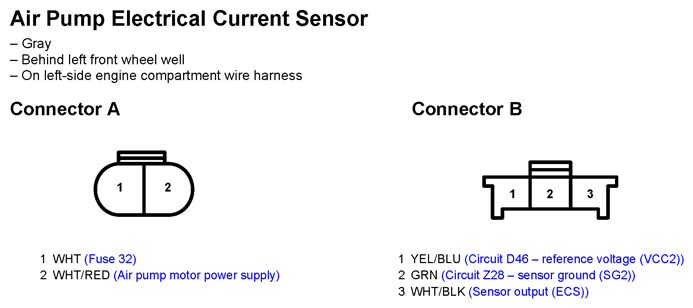

Fig 1: Air Pump Electrical Current Sensor Connector End View

G11250197

Courtesy of AMERICAN HONDA MOTOR CO., INC.
