Testing Electrical Circuits (HSN 0802-07)
Publication date: 2002-08-01Reference number: HSN 0802-07
TESTING ELECTRICAL CIRCUITS
TECHNICAL SERVICE BULLETIN
Reference Number(s): HSN 0802-07, Date of Issue:
August 2002
| HONDA: | All models |
| CATEGORY: | Honda Service News |
| APPLIES TO: | All models |
SERVICE INFORMATION

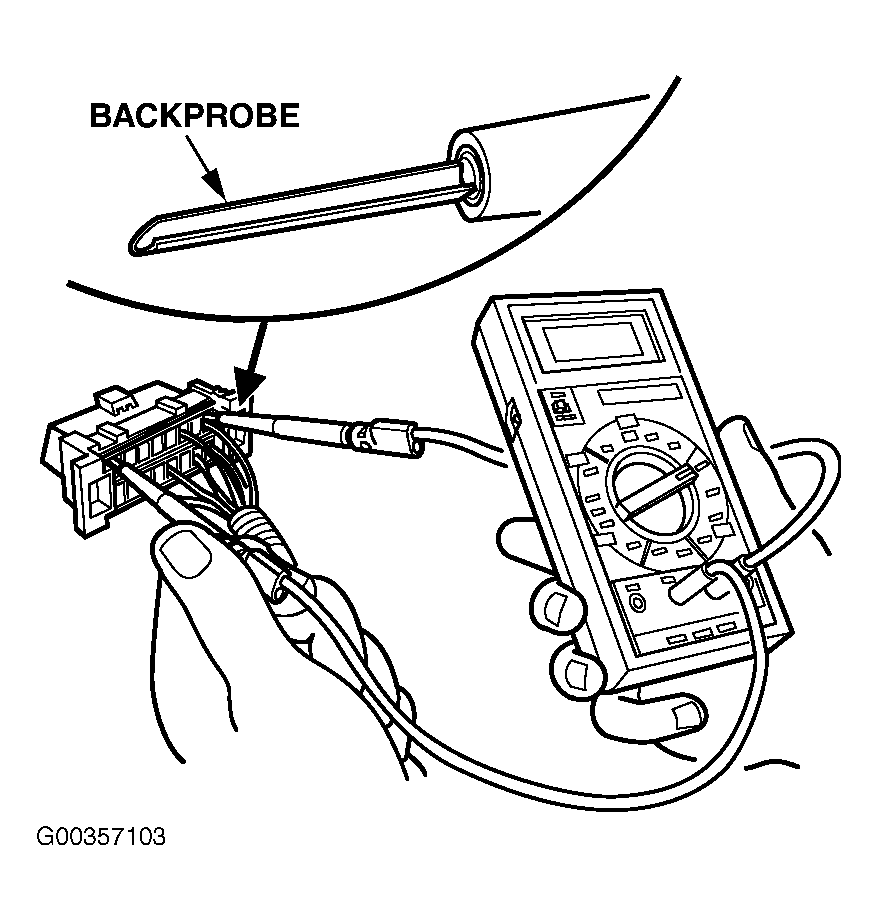

When using electrical test equipment, always insert the tester probe into the wire side of the connector, not the terminal side.
For best results, use a Backprobe Set (T/N 07SAZ-001000A). If you need just the backprobe, order T/N 07TAZ-001020A.
