ECM Inputs and Outputs at Connector A (32P)

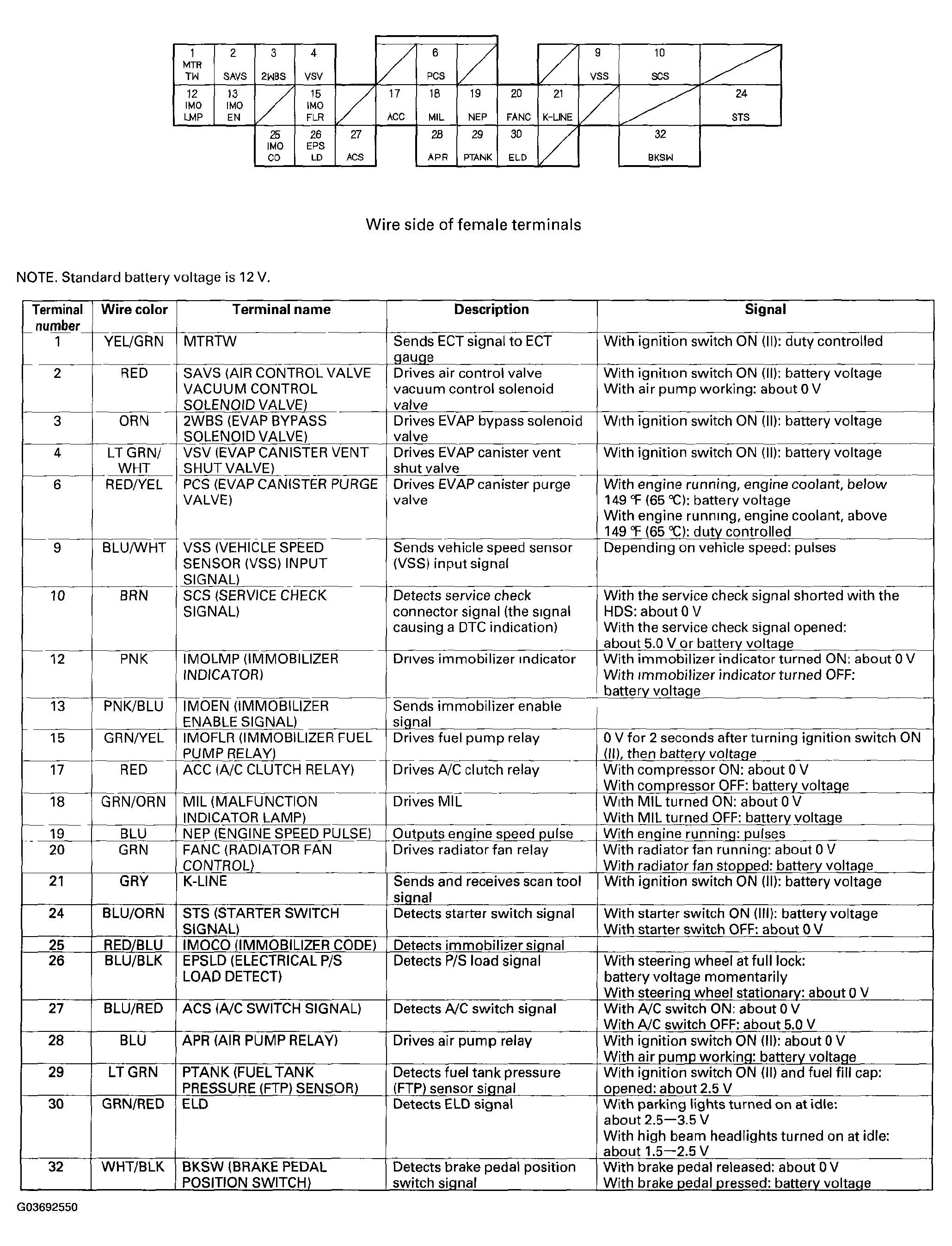

Fig 1: Identifying ECM Inputs And Outputs At Connector A (32P)

G03692550

Courtesy of AMERICAN HONDA MOTOR CO., INC.
