Rocker Arm Assembly Removal

  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  ).
  2. Loosen the rocker arm adjusting screws (A).

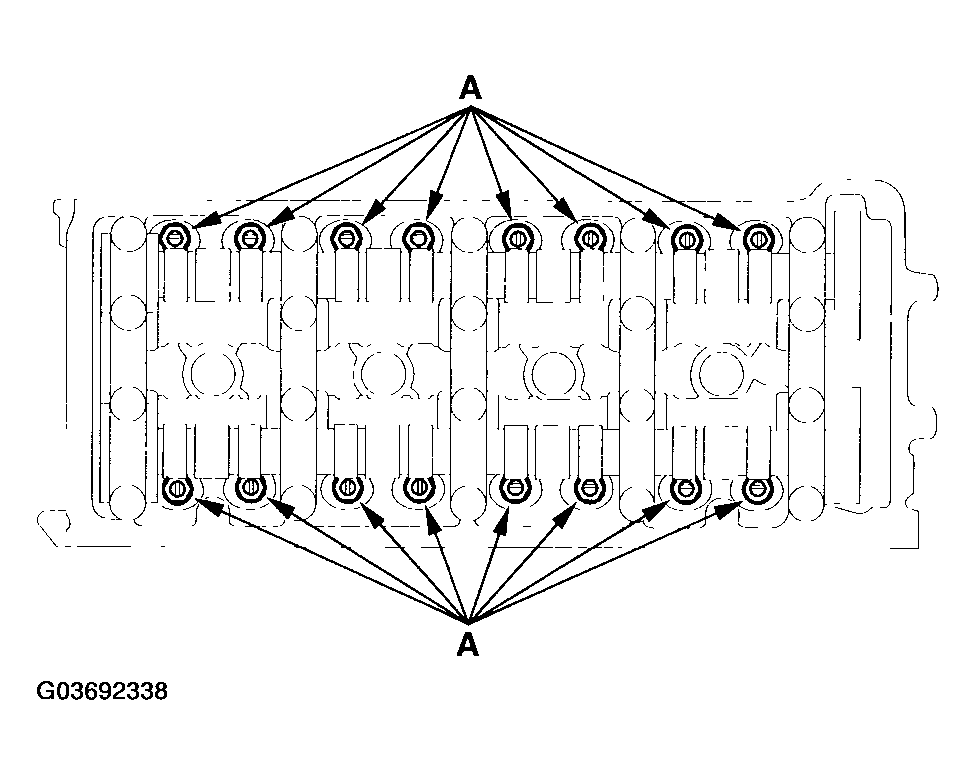

    Fig 1: Loosening Rocker Arm Adjusting Screws
    G03692338Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the camshaft holders and camshafts. To prevent damaging the camshafts, unscrew the camshaft holder bolts two turns at a time, in a crisscross pattern.
  4. Insert the bolts (A) into the rocker shaft holder, then remove the rocker arm assembly (B).

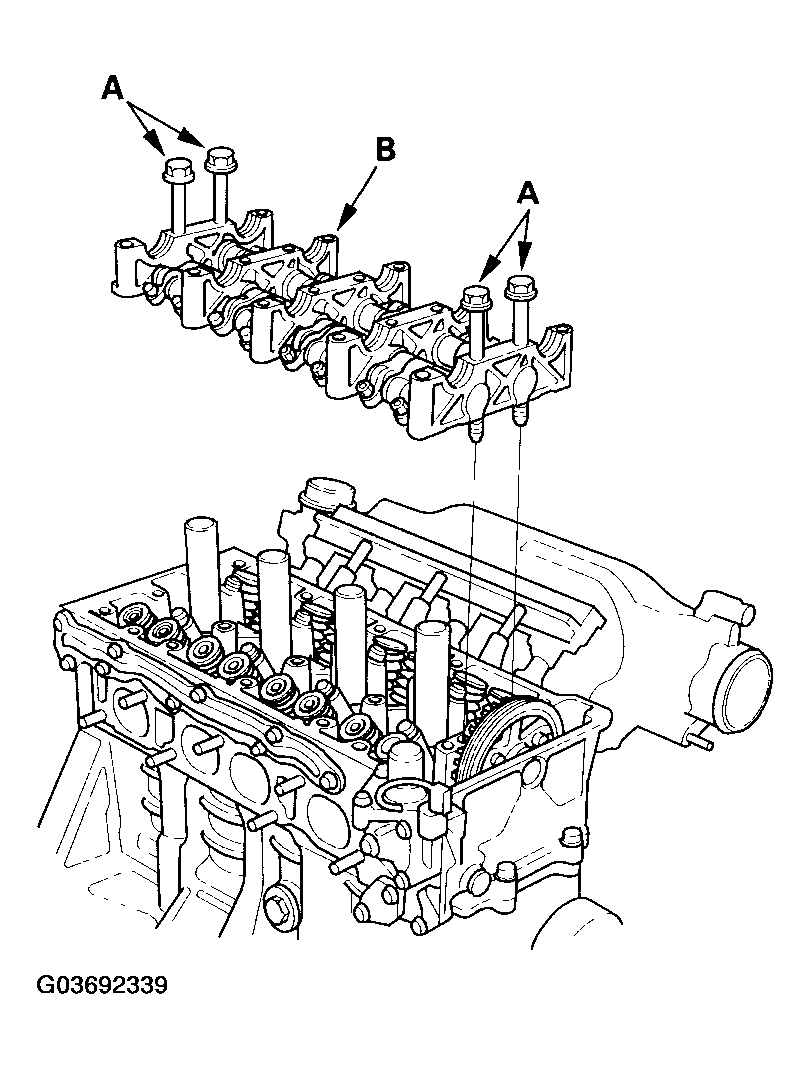

    Fig 2: Removing Rocker Arm Assembly
    G03692339Courtesy of AMERICAN HONDA MOTOR CO., INC.
