Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling Fan
>>
Fan Controls
>>
Circuit Diagram
Circuit Diagram

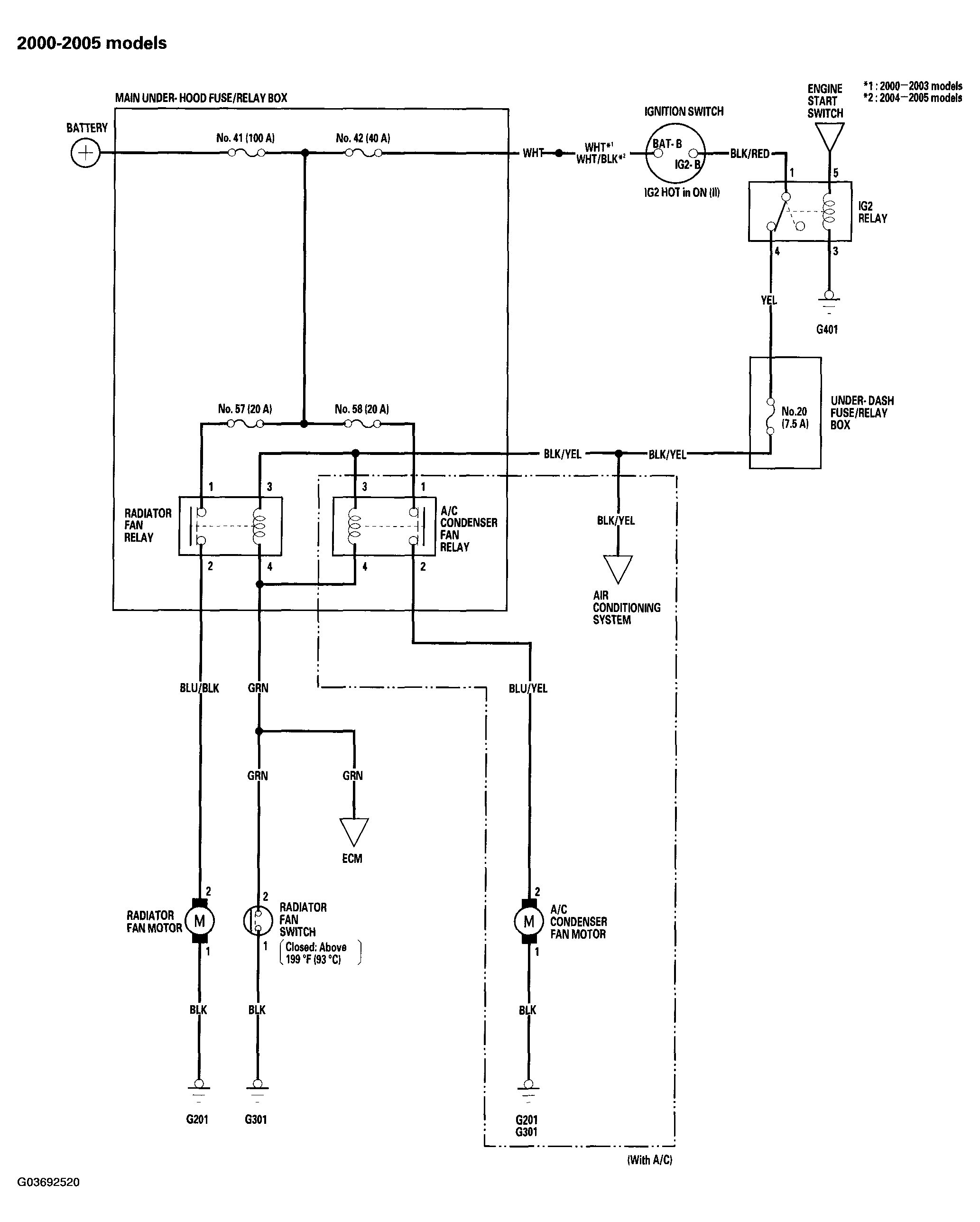

Fig 1: Identifying Fan Controls Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

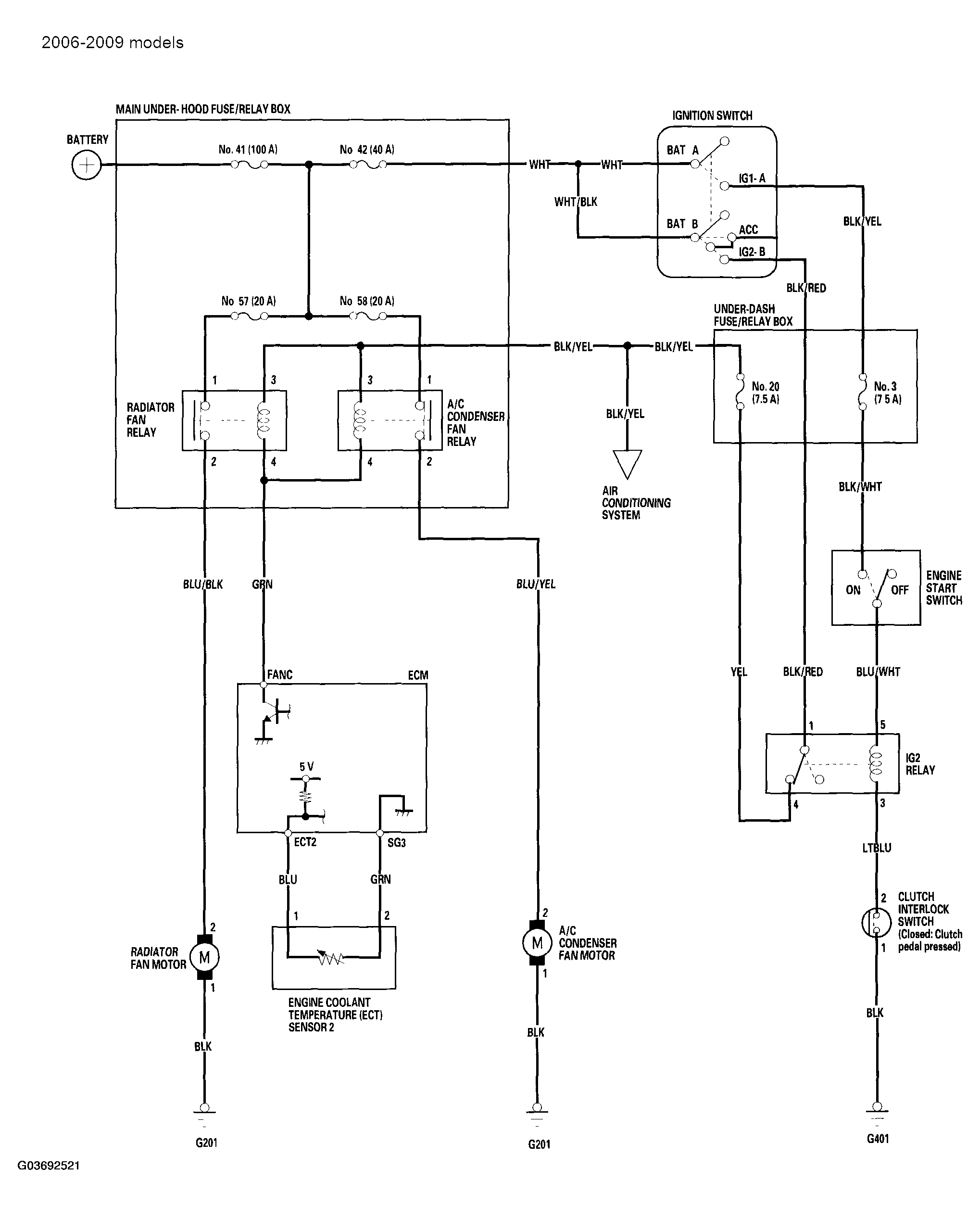

Fig 2: Identifying Fan Controls Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
