Circuit Diagram
Circuit Diagram

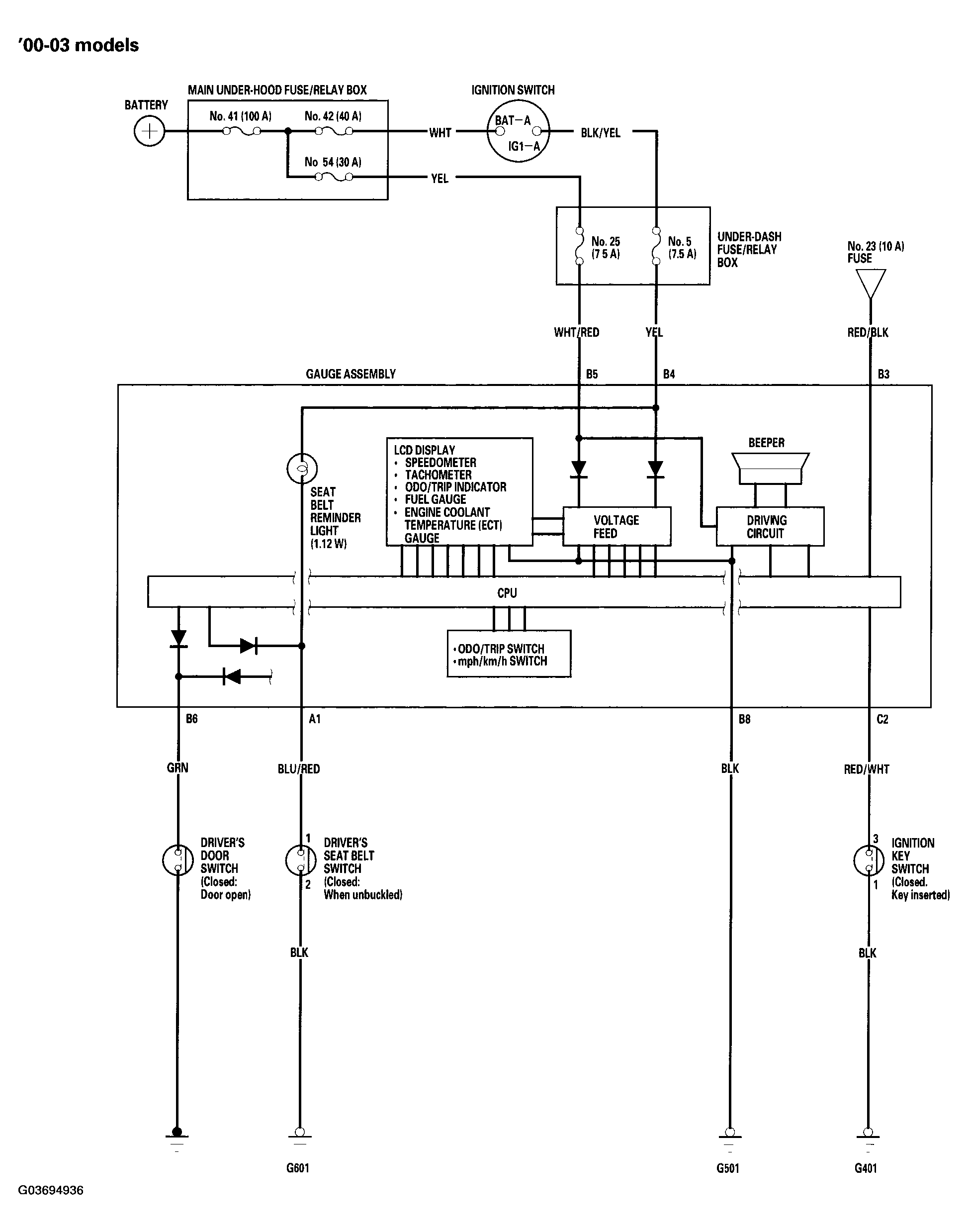

Fig 1: Identifying Reminder System Circuit Diagram (00-03 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

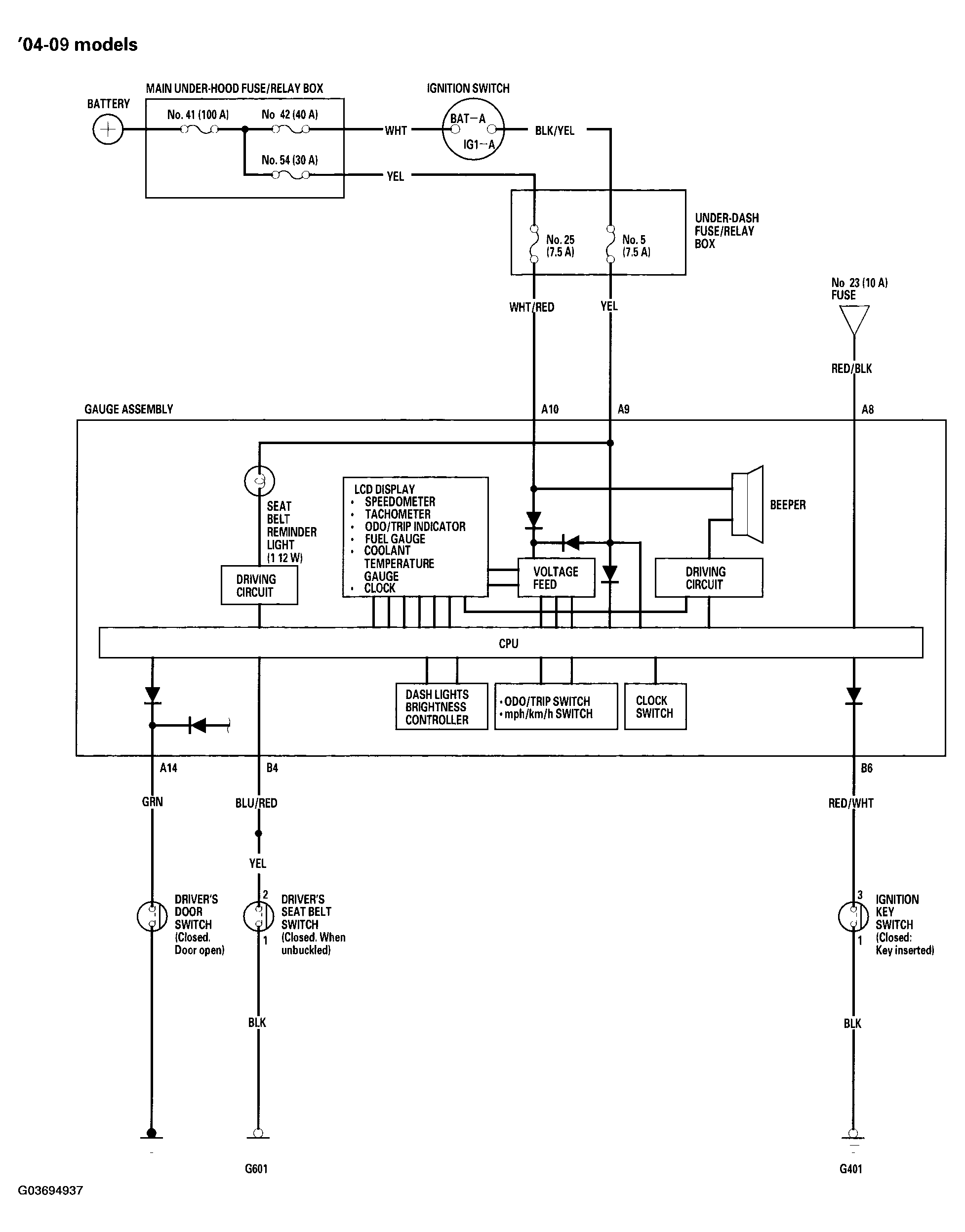

Fig 2: Identifying Reminder System Circuit Diagram (04-09 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
