Parking Brake Switch Connector End View

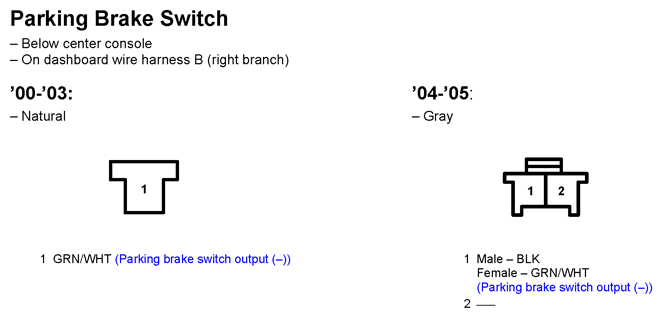

Fig 1: Parking Brake Switch Connector End View

G11250058

Courtesy of AMERICAN HONDA MOTOR CO., INC.
