DRL Sub-control Unit (USA) Connector End View

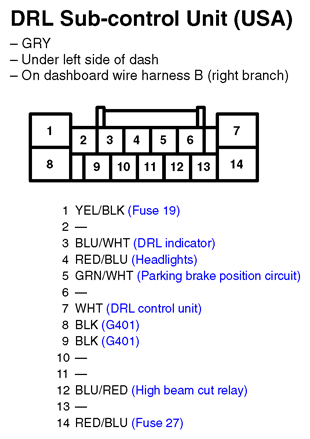

Fig 1: DRL Sub-control Unit (USA) Connector End View

G11250379

Courtesy of AMERICAN HONDA MOTOR CO., INC.
