Battery Terminal Disconnection and Reconnection: Reconnection

NOTE: Some systems store data in memory that is lost when the battery is disconnected Do the following procedures before disconnecting the battery
  1. Clean the battery terminals.
  2. Test the battery BATTERY TEST
  3. Reconnect the positive cable (A) to the battery (B) first, then reconnect the negative cable (C) to the battery
    NOTE: Always disconnect the negative cable from the battery first

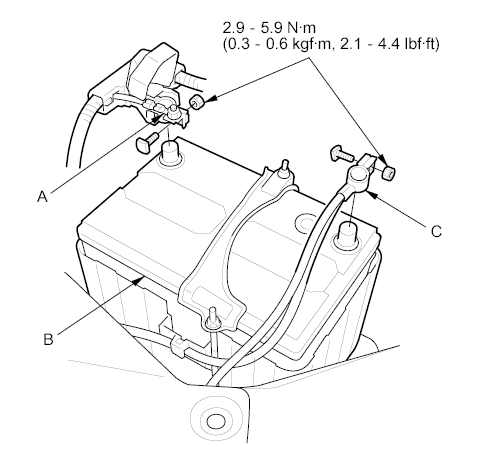

    Fig 1: Battery Reconnection
    G00391319Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Apply multipurpose grease to the terminals to prevent corrosion
  5. Enter the anti-theft code(s) for the audio system and/or the navigation system (if equipped).
  6. 2000-05 models : Do the ECM idle learn procedure
