Battery Removal and Installation: Installation

Install the battery (A), then install the battery setting plate (B)

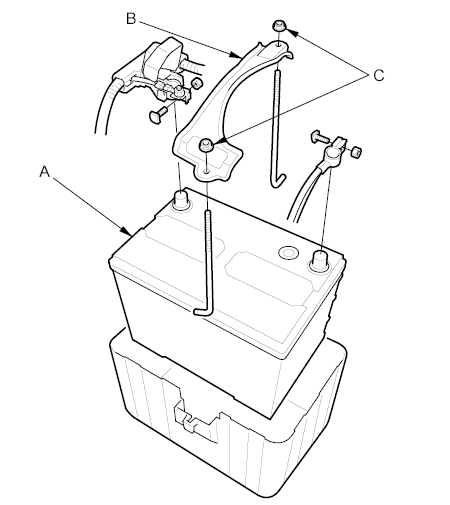

Fig 1: Removing/Installing Battery
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the two nuts (C) equally until the battery is stable
NOTE: Do not deform the battery setting plate by tightening the nuts too much
Do the battery terminal reconnection procedure (see RECONNECTION )
NOTE: Make sure the positive terminal and the negative terminal are not reverse-connected
