Convertible Top Switch Test

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A) from the switch.

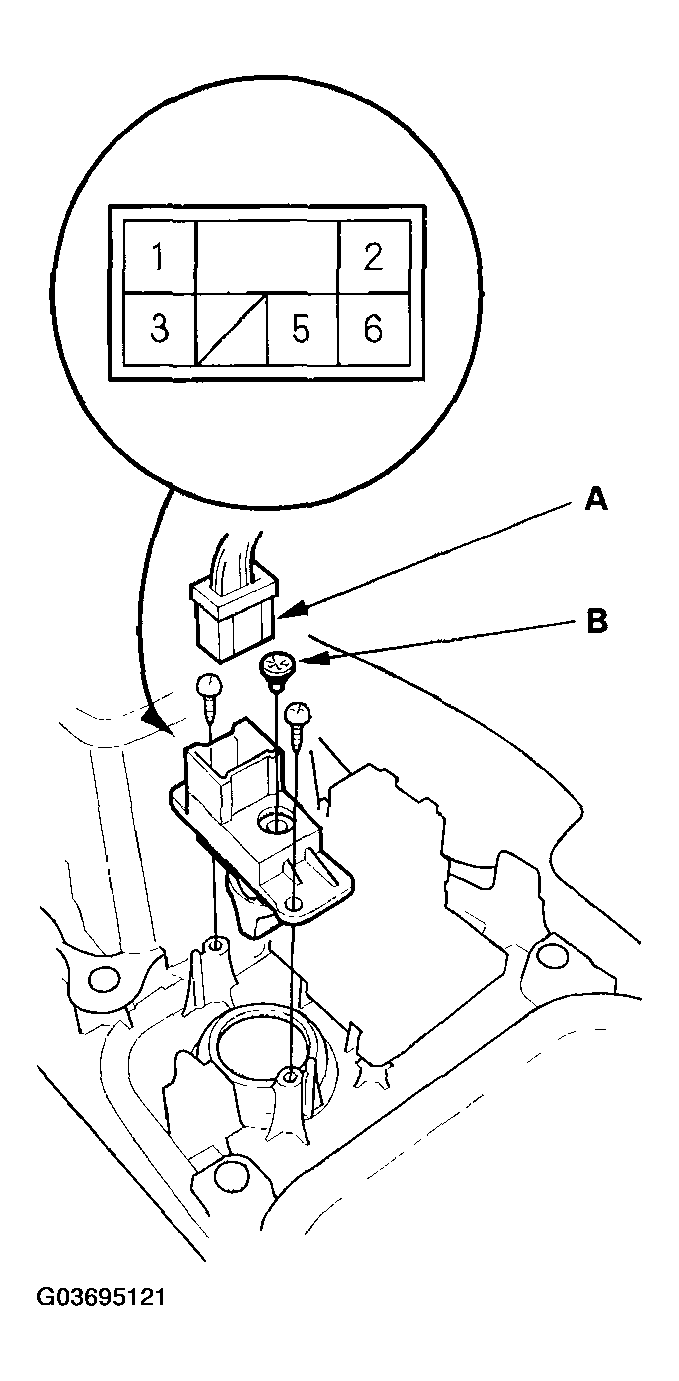

Fig 1: Disconnecting 6P Connector From Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

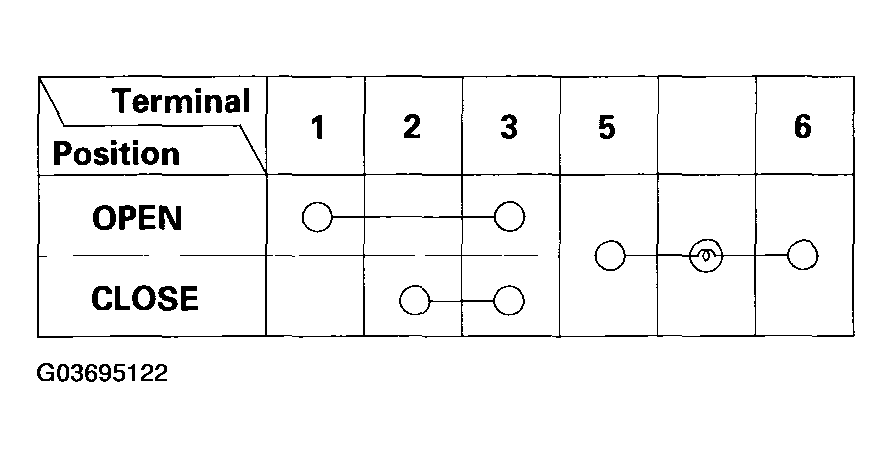

Fig 2: Checking Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the illumination bulb (B) or the switch.
