'00-05 Models

NOTE:
  • Make sure the bushing and pivot washer are installed correctly.
  • Apply multipurpose grease to the moving portion of the seat track.
  • To prevent wrinkles in the seat-back cover, stretch the material evenly over the pad.
  • Reinstall the connecting wire through the holes in the hooks.

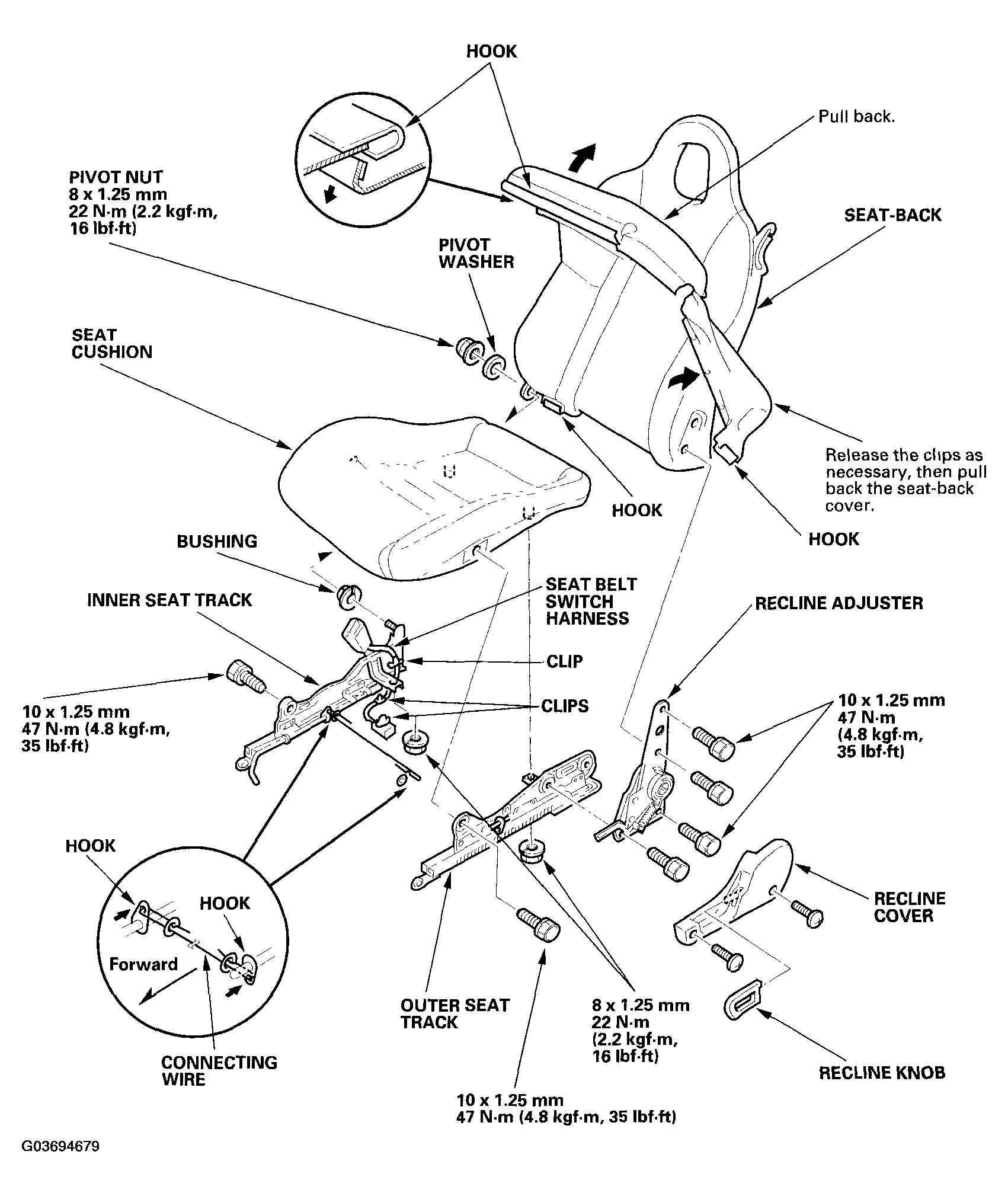

Fig 1: Disassembling View Of Seat (2000-05 Model) (Driver) With Torque Specifications
G03694679Courtesy of AMERICAN HONDA MOTOR CO., INC.
