Special Tools Required
KTC trim tool set SOJATP2014*
*Available through the American Honda Tool and Equipment Program; call 888-424-6857
NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.

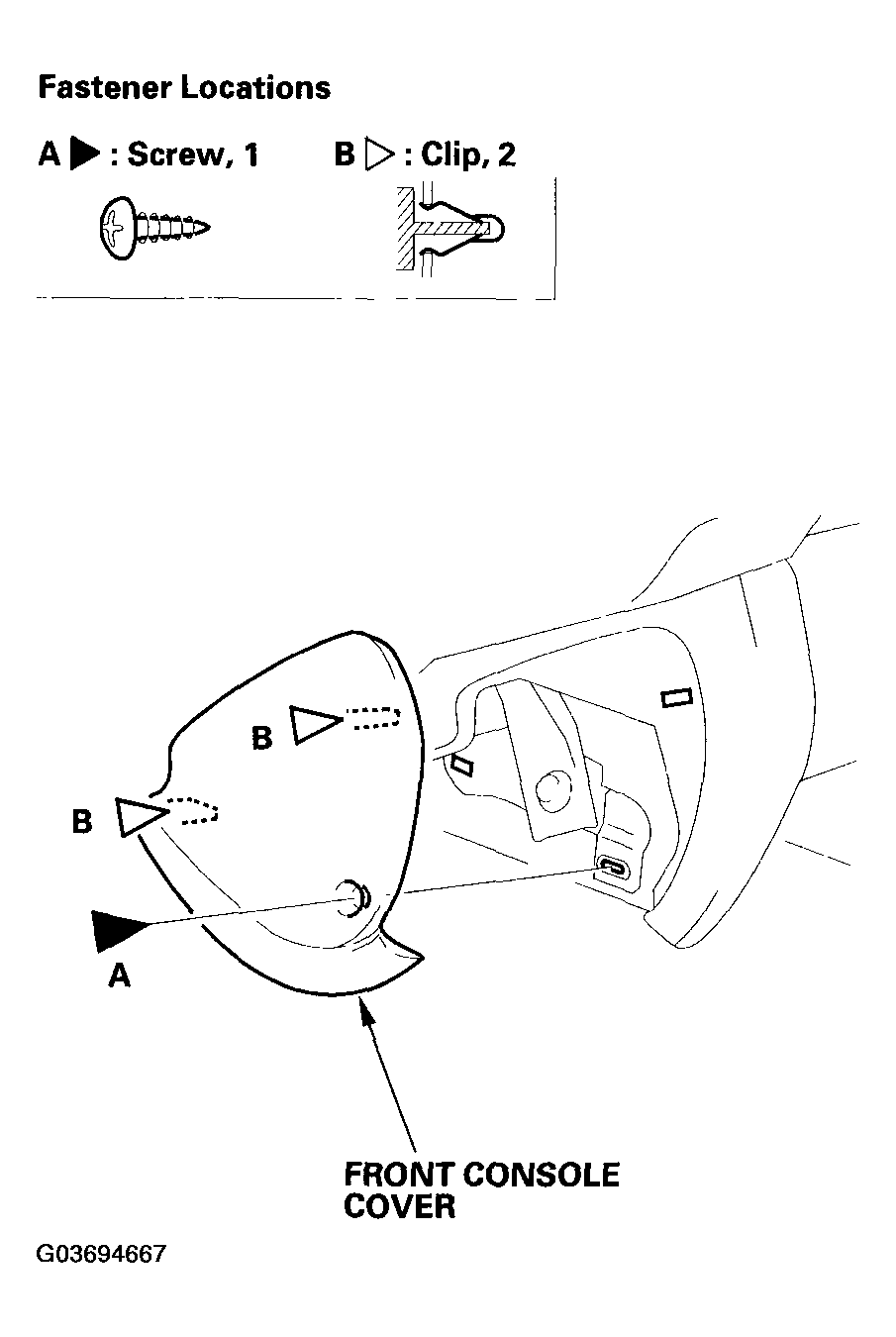

- Remove the front console cover as shown below.
- Install the cover in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
