Special Tools Required

KTC trim tool set SOJATP2014*

*Available through the American Honda Tool and Equipment Program; call 888-424-6857

'01-09 Models

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the rear console upper lid and related parts.

Remove the wind deflector as shown below.
Install the wind deflector in the reverse order of removal.
- Apply liquid thread lock to the thread of the screws (A) before reinstallation.
- Make sure the caps are installed securely onto the screws.

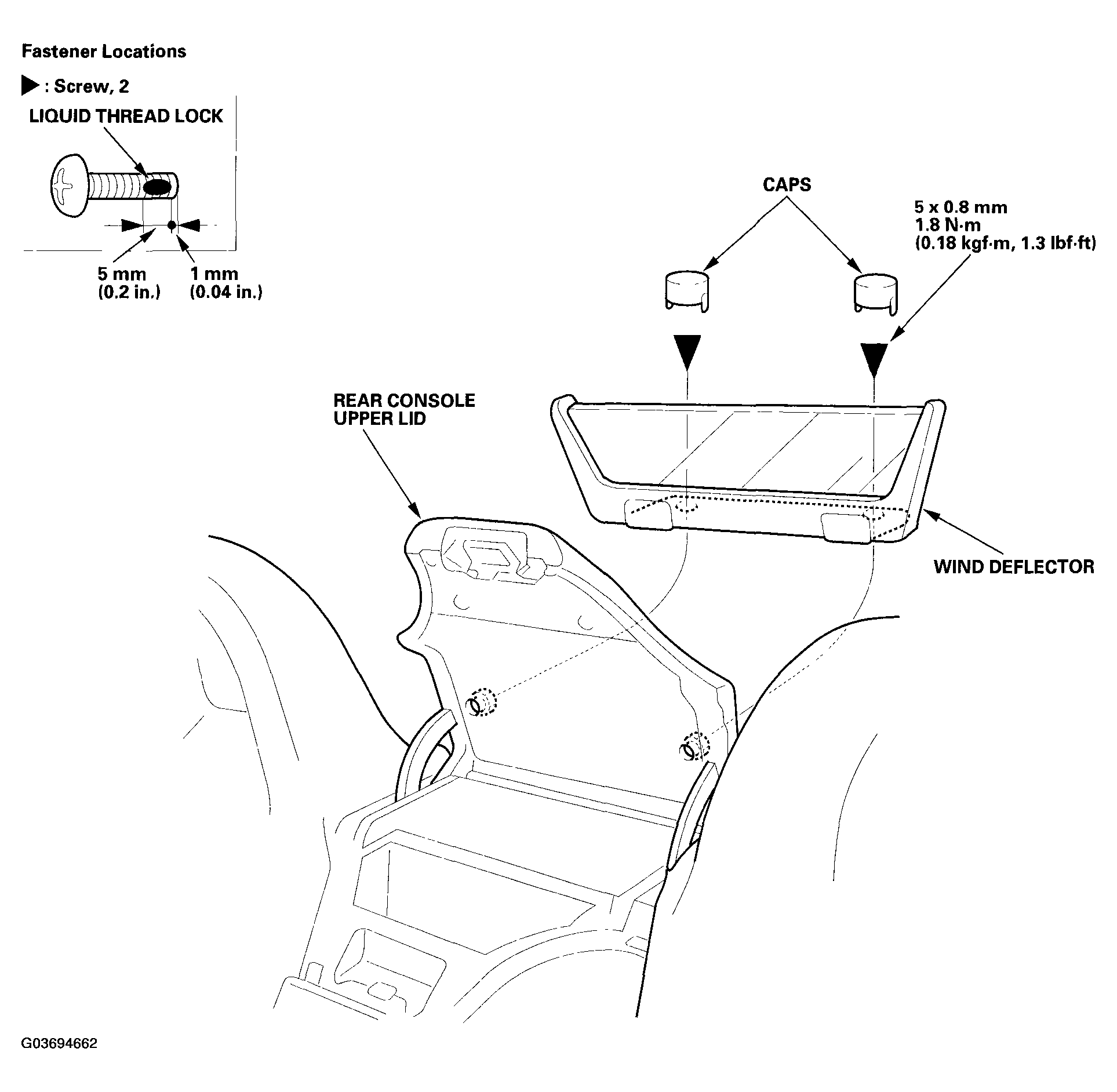

  Fig 1: Wind Deflector With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
