Trunk Lid Rubber Protector Replacement

NOTE:
  • Take care not to scratch the trunk lid.
  • Use a clip remover to remove the clips.
  1. Remove the trunk lid rubber protectors as shown below.
  2. Note these items when reinstalling the protectors:
    • Check for damaged or stress-whitened clips, and replace them with new ones.
    • Push the clips into place securely.

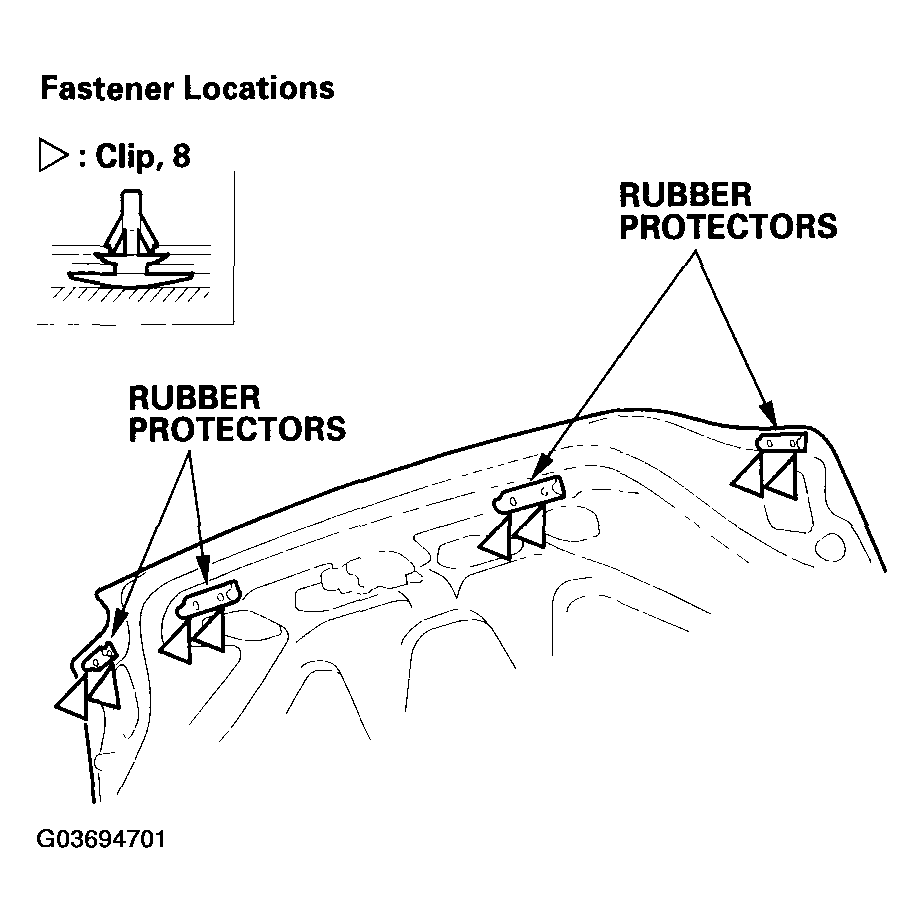

      Fig 1: Identifying Trunk Lid Rubber Protectors
      G03694701Courtesy of AMERICAN HONDA MOTOR CO., INC.
