Trunk Lid: Adjustment
- Slightly loosen each bolt.

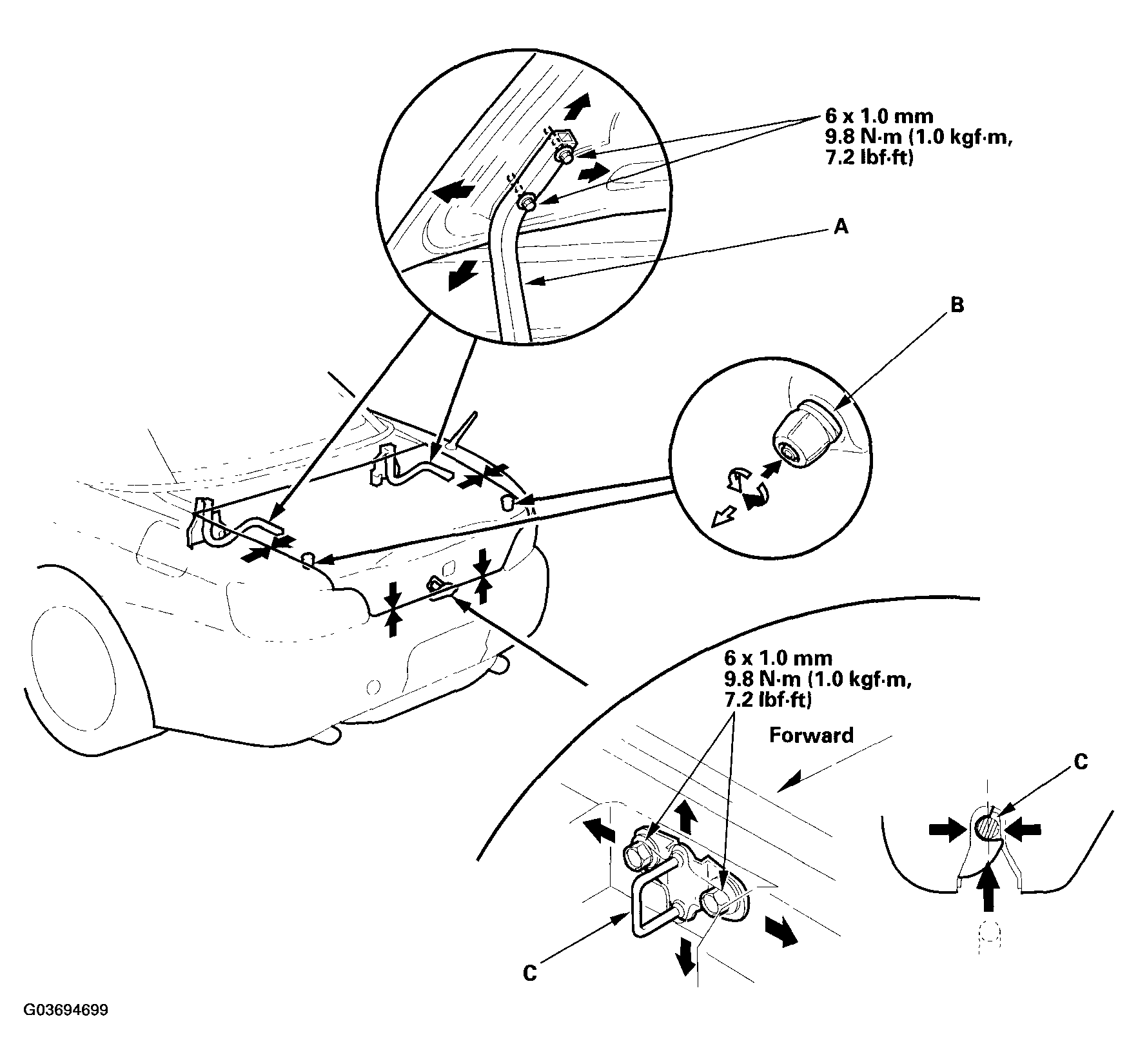

- Adjust the trunk lid alignment:
- Adjust the trunk lid right and left, as well as forward and rearward, by using the elongated holes on the trunk lid hinges (A).
- Turn the trunk lid edge cushions (B) in or out as necessary to make the trunk lid fit flush with the body at the rear and side edges.
- Adjust the fit between the trunk lid and the trunk lid opening by moving the striker (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Tighten each bolt securely.
- Make sure the trunk lid opens properly and locks securely.
- Apply touch-up paint to the trunk lid mounting bolts and around the hinges.
