Strake Replacement

NOTE: Take care not to scratch the body.
  1. Remove the strakes as shown below.
  2. Install the strakes in the reverse order of removal.

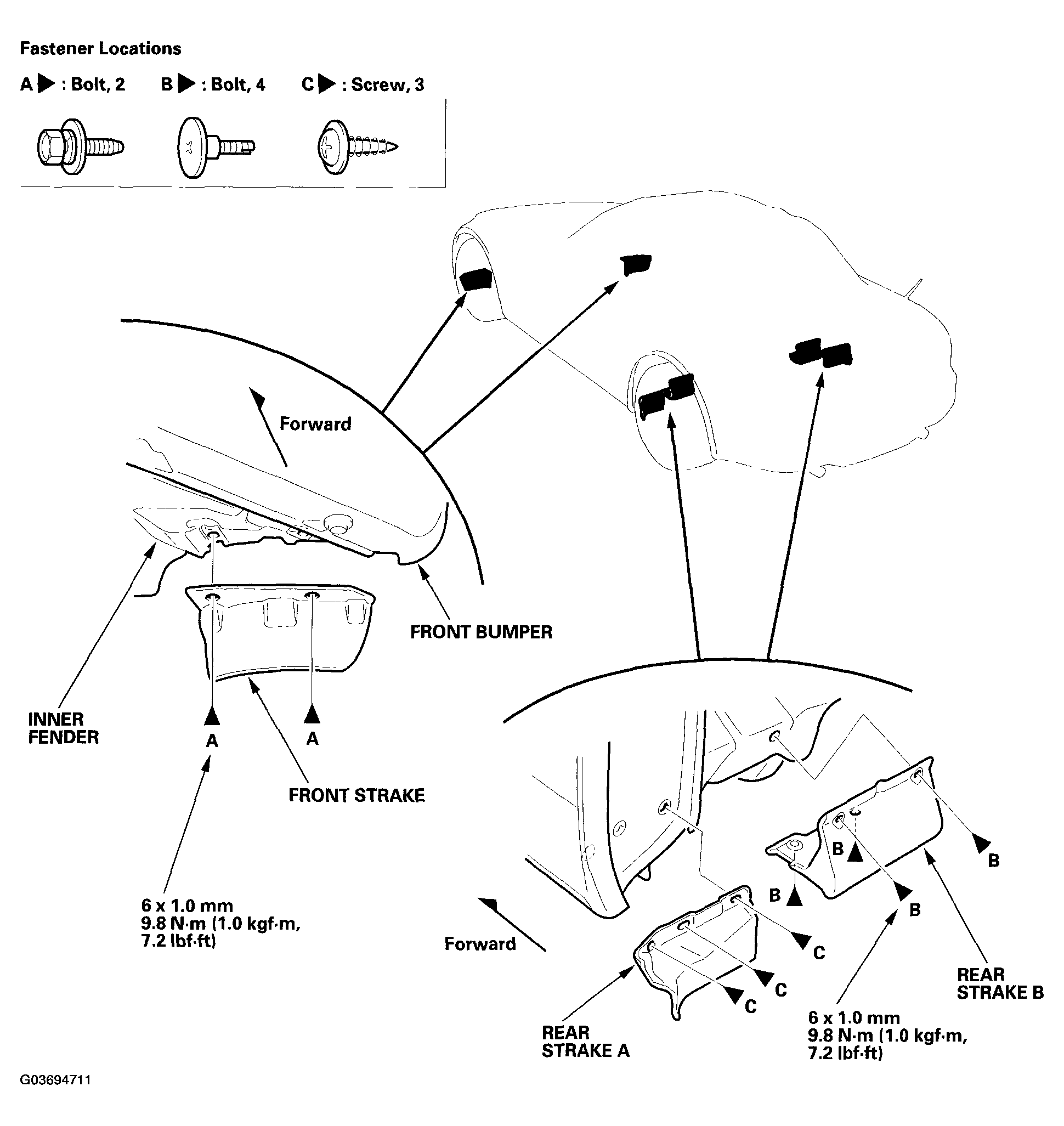

    Fig 1: Strakes With Torque Specifications
    G03694711Courtesy of AMERICAN HONDA MOTOR CO., INC.
