Component Location Index

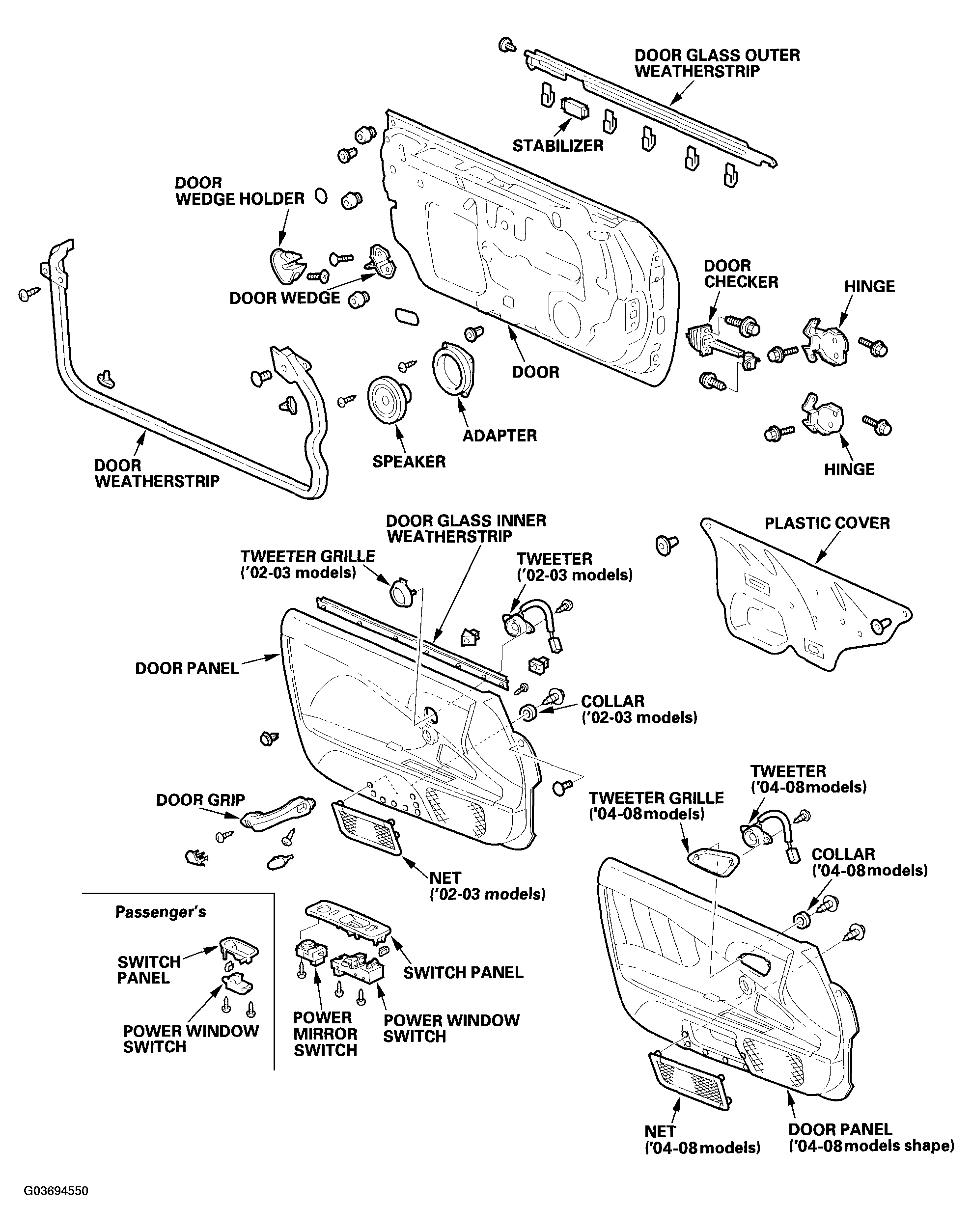

Fig 1: Identifying Door Replacement Components (1 Of 2)
G03694550Courtesy of AMERICAN HONDA MOTOR CO., INC.

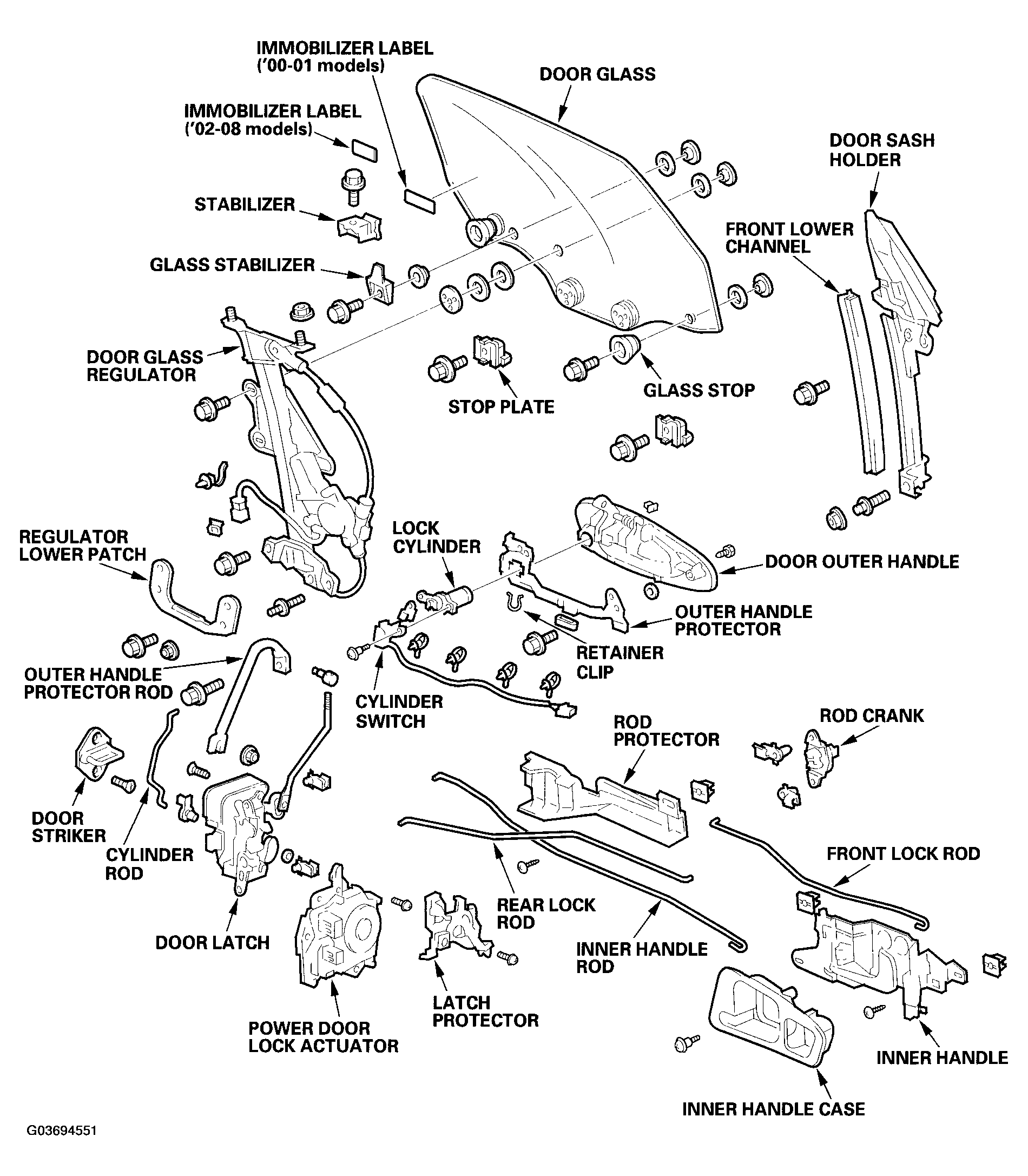

Fig 2: Identifying Door Replacement Components (2 Of 2)
G03694551Courtesy of AMERICAN HONDA MOTOR CO., INC.
