Trunk Lid Lock Cylinder Replacement

NOTE:

Take care not to scratch the body.
Take care not to bend the cylinder rod.

Remove the trunk lid lock cylinder as shown below.
Install the cylinder in the reverse order of removal, and note these items:
- Make sure the cylinder rod is connected properly.
- Make sure the trunk lid opens properly.

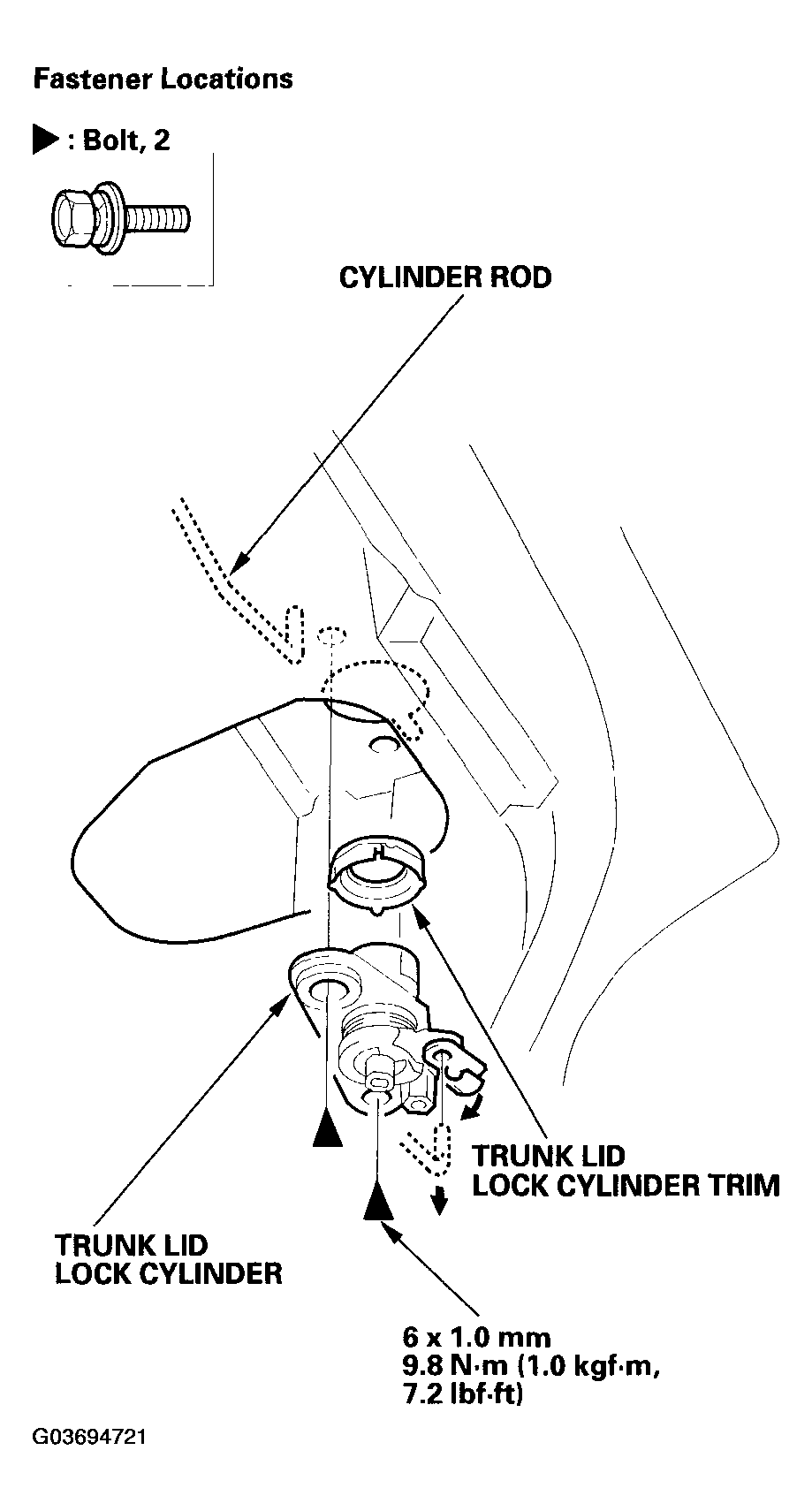

  Fig 1: Trunk Lid Lock Cylinder With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
