Hood Release Handle Replacement

NOTE: Take care not to kink the cable.
  1. Remove the kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  2. Remove the hood release handle as shown below.
  3. Install the handle in the reverse order of removal, and note these items:
    • Make sure the hood opener cable is connected properly.
    • Make sure the hood opens properly.

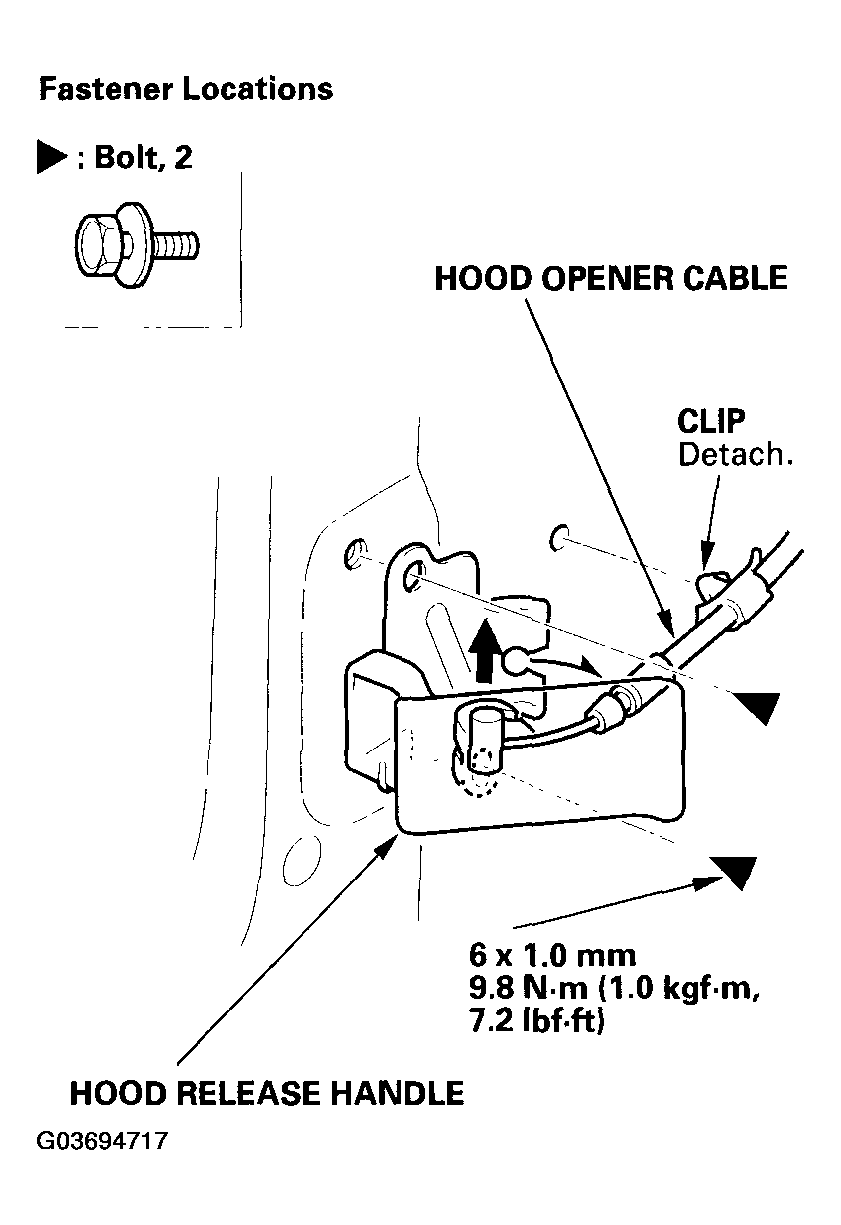

      Fig 1: Hood Release Handle With Torque Specifications
      G03694717Courtesy of AMERICAN HONDA MOTOR CO., INC.
