'08-09 model

Remove the blower motor.

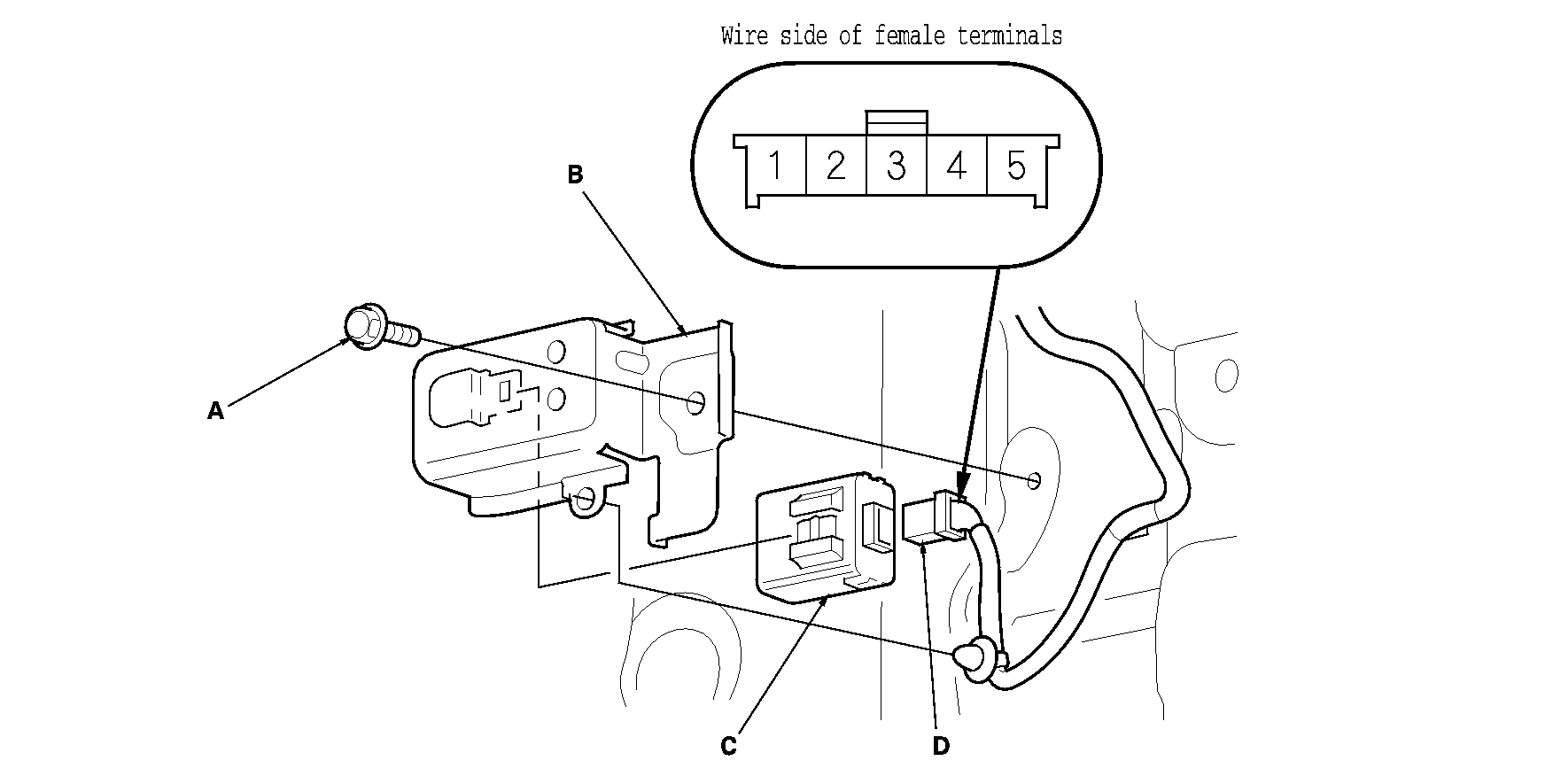

Remove the bolt (A) from the imoes unit bracket (B).

Fig 1: Removing Bolt From Imoes Unit Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the imoes unit (C) from the imoes unit bracket.
Disconnect the 5P connector (D) from the imoes unit.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 3.

With the connectors still disconnected, do these input tests at the following connectors.

If any test indicates a problem, find and correct the cause, then recheck the system.

If all the input tests prove OK, replace the imoes unit, then do the imoes unit registration with the HDS, and make sure the immobilizer indicator blinks correctly.

IMOES UNIT INPUT TEST CHART

Cavity	Wire (Signal)	Test condition	Test: Desired result	Possible cause if desired result is not obtained
5	WHT/RED (+B)	Under all conditions	Measure the voltage to ground: There should be battery voltage.	Blown No. 54 (30 A) fuse in the main under- hood fuse/relay box Blown No. 25 (7.5 A) fuse in the under-dash fuse/relay box An open in the wire
3	BLK/YEL (IG 1)	Ignition switch ON (II)	Measure the voltage to ground: There should be battery voltage.	Blown No. 2 (15 A) fuse in the under-dash fuse/relay box An open in the wire
1	GRN/WHT (LG 3)	Jump the SCS line with the HDS. Disconnect ECM connector E (31P).	Check for continuity between terminal No. 1 and ECM connector E (31P) terminal No. 3: There should be continuity.	An open in the wire
4	RED/WHT (KEY SW)	Ignition key is in the ignition switch	Measure the voltage to ground: There should be less than 1 V.	Faulty ignition key switch An open in the wire Poor ground (G401)
4	RED/WHT (KEY SW)	Ignition switch LOCK (0), and the ignition key removed from the ignition switch Measure the voltage to ground: There should be less than 1 V. Measure the voltage to ground: There should be less than 1 V.	Measure the voltage to ground: There should be more than 5V.	Faulty ignition key switch A short to ground in the wire
2	RED/BLU (IMOCD (S-Net))	SCS line with the HDS. Disconnect ECM connector E (31P), and immobilizer control unit-receiver 7P connector	Check for continuity between terminal No. 2 and ECM connector E (31P) terminal No. 27: There should be continuity, and immobilizer control unit-receiver terminal No. 2	An open in the wire
2	RED/BLU (IMOCD (S-Net))	SCS line with the HDS. Disconnect ECM connector E (31P), and immobilizer control unit-receiver 7P connector	Check for continuity between terminal No. 2 and body ground: There should be no continuity.	A short to ground in the wire
