'00-05 models

  1. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Disconnect the 5P connector (A) from the immobilizer receiver unit (B).

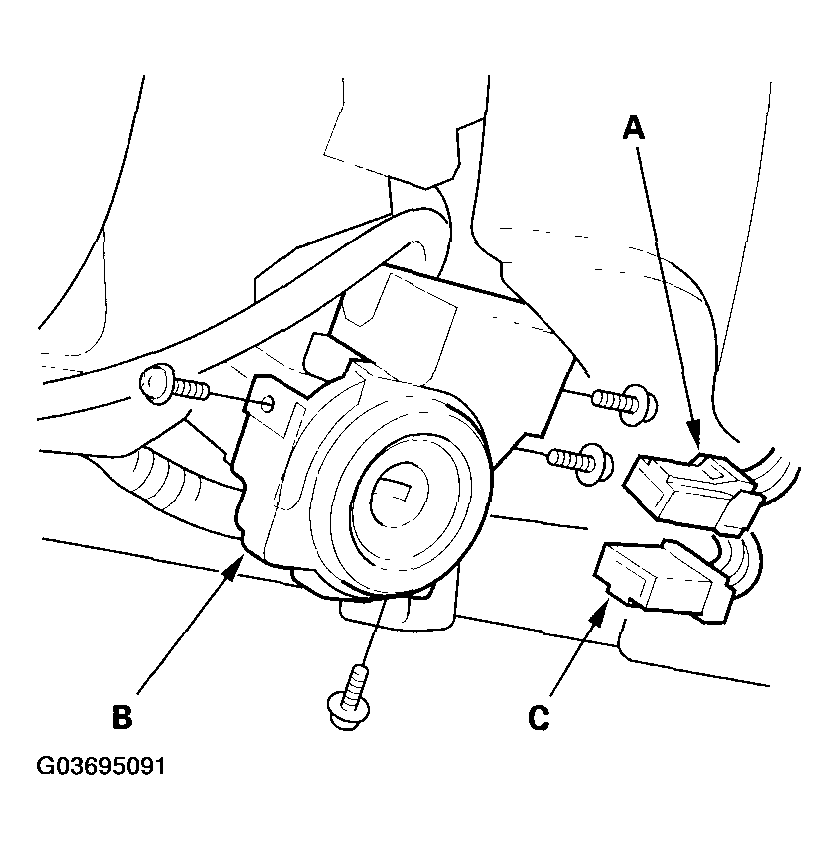

    Fig 1: Disconnecting 5P Connector From Immobilizer Receiver Unit
    G03695091Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 7P connector (C) from the ignition key switch.
  4. Remove the four screws, and remove the immobilizer receiver unit from the ignition key cylinder.
  5. Install in the reverse order of removal.
  6. After replacement, make sure the immobilizer indicator blinks correctly.
    NOTE: The ECM does not need to be reprogrammed if only the receiver has been replaced.
