Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer System
>>
Circuit Diagram
Circuit Diagram

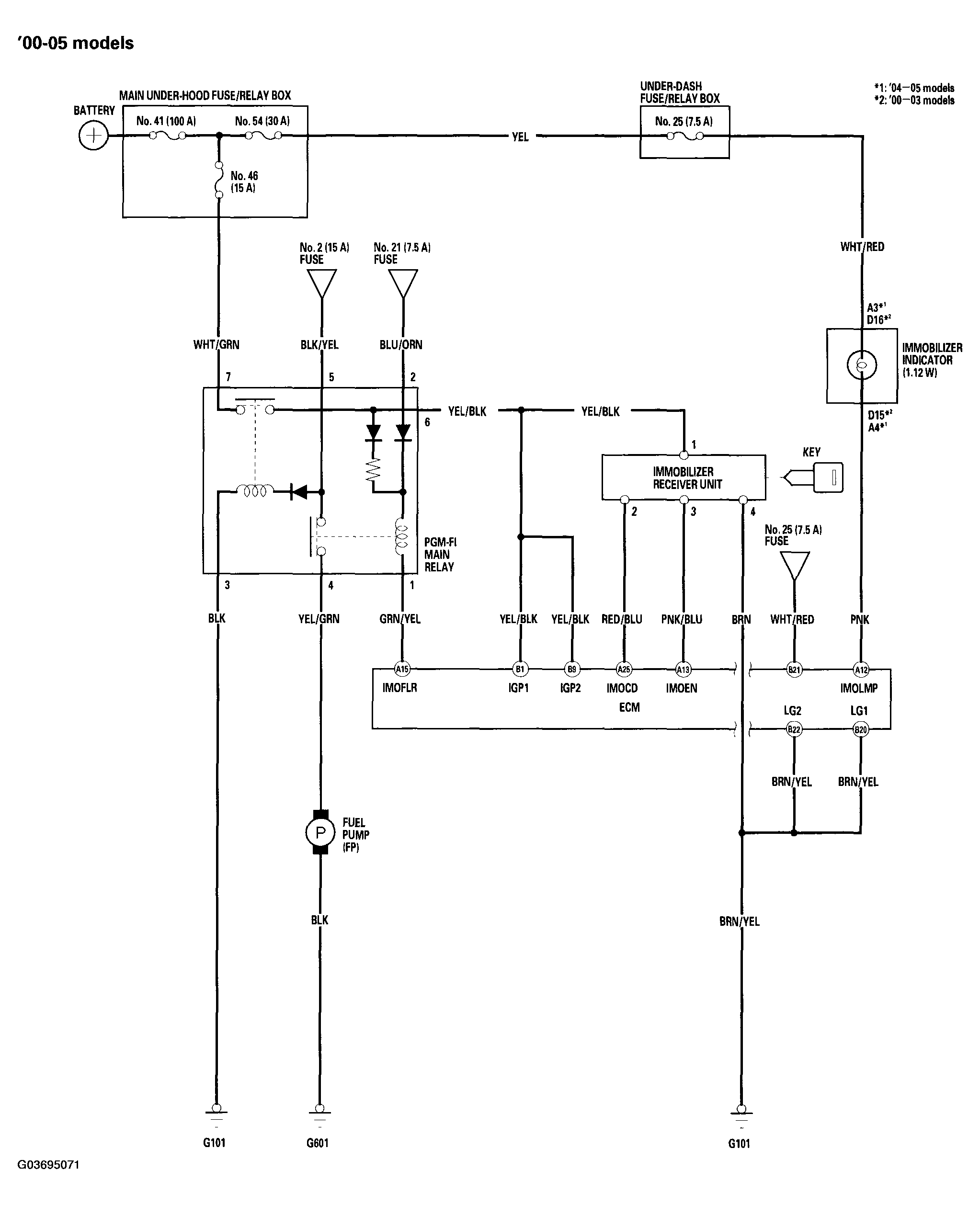

Fig 1: Circuit Diagram (00-05 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

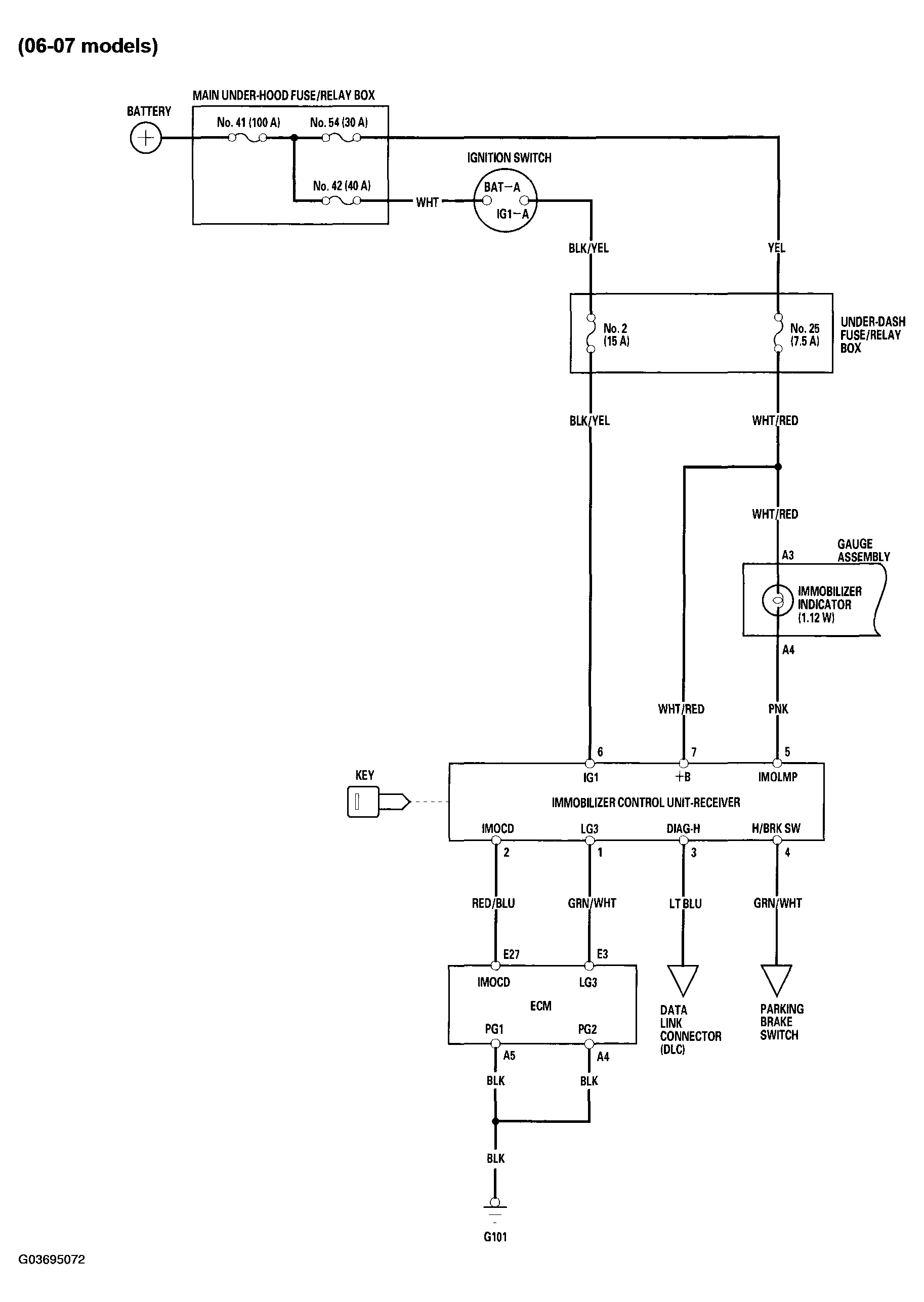

Fig 2: Circuit Diagram (06-09 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
