Wiper Motor Replacement

Open the hood, and remove the cap nuts and the wiper arms.

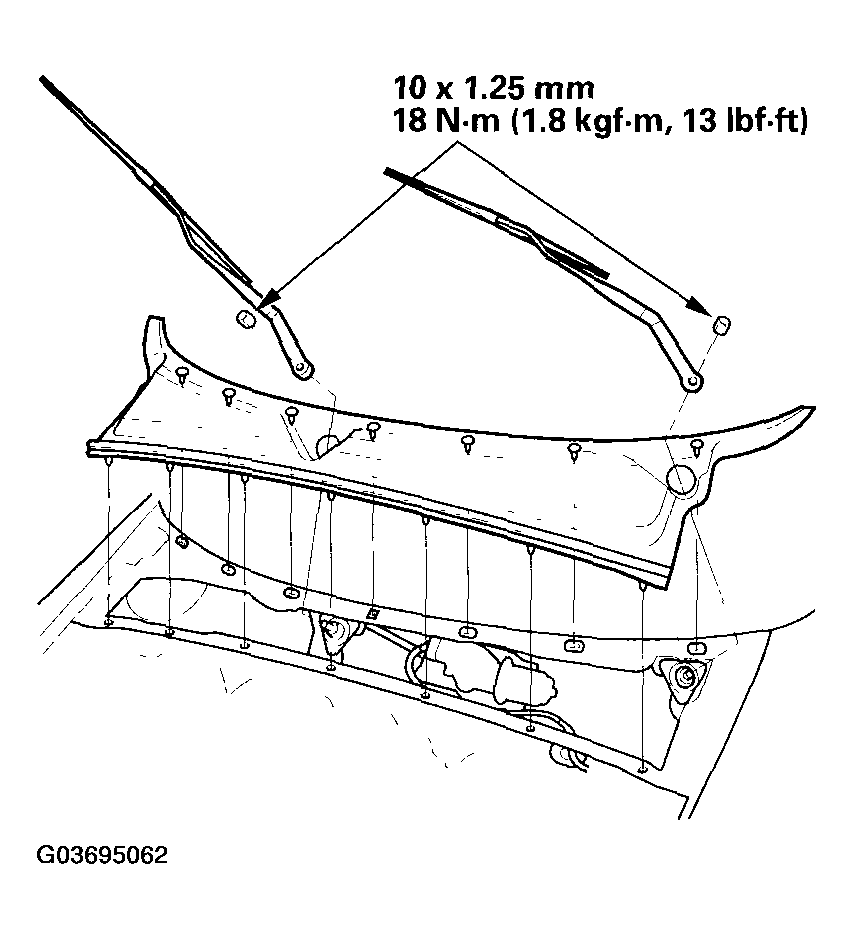

Fig 1: Cap Nuts & Wiper Arms With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hood seal and cowl cover.
Disconnect the 5P connector (A) from the wiper motor (B).

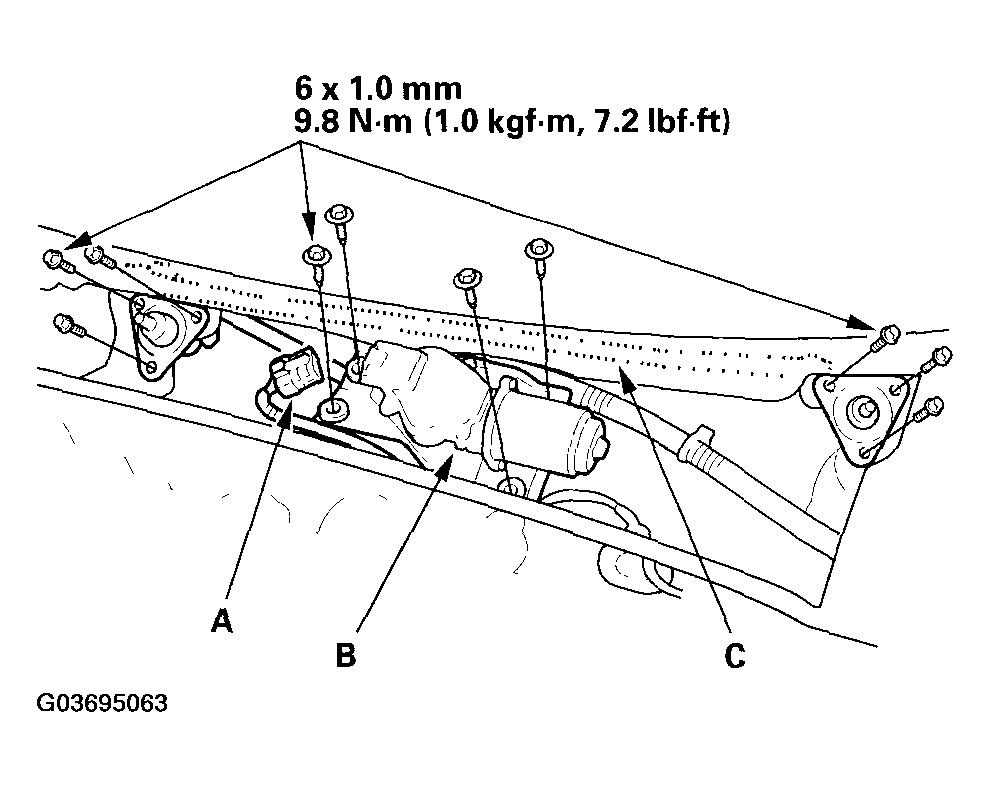

Fig 2: 5P Connector & Wiper Motor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove windshield wiper linkage assembly (C).
Remove the three mounting bolts and nut from the wiper linkage (A) to remove the wiper motor (B).

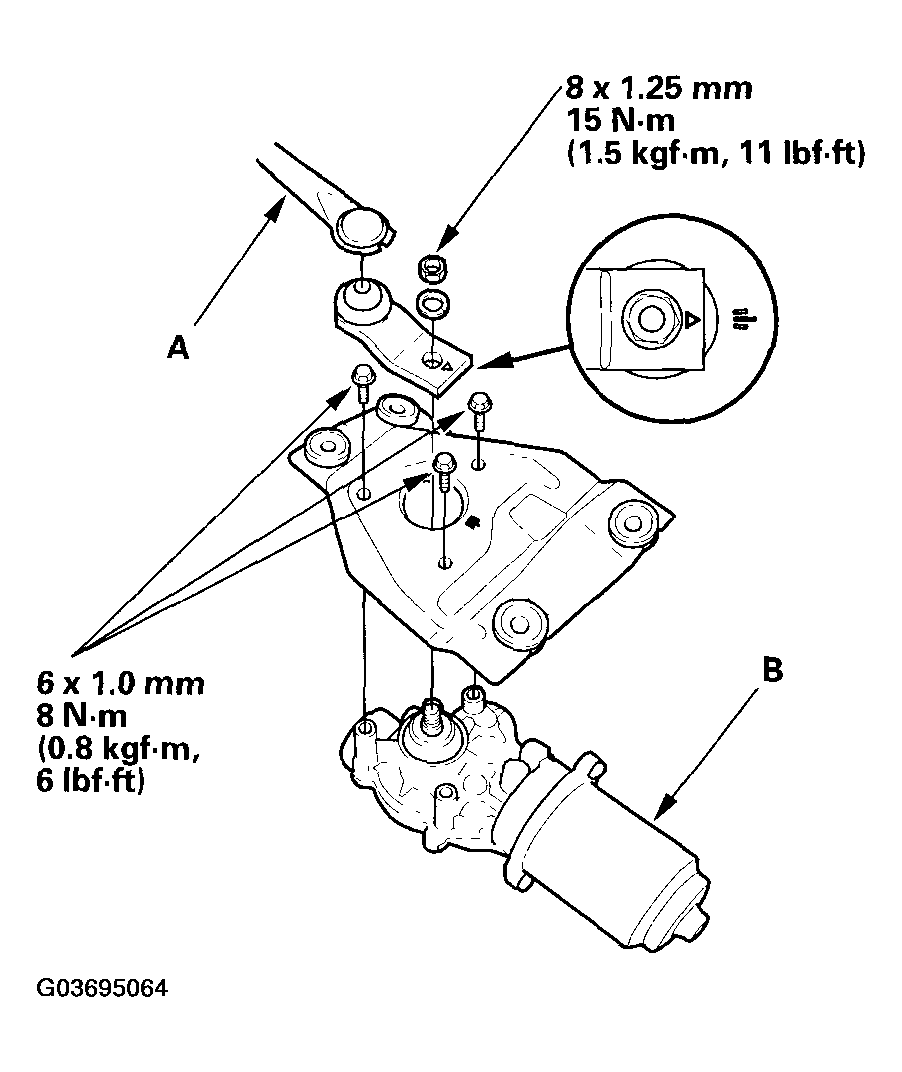

Fig 3: Mounting Bolts & Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and note these items:
- Grease all moving parts.
- Before reinstalling the wiper arms, turn the wiper switch ON, then OFF to return the wiper shafts to the park position.
- If necessary, replace any damaged clips.
- Check the wiper motor operation.
